แบรนด์: DrayTek
Draytek VigorSwitch P1092 User’s Guide
Draytek VigorSwitch P1092 Quick Start Guide
Draytek VigorSwitch P1092 Datasheet
Overview |

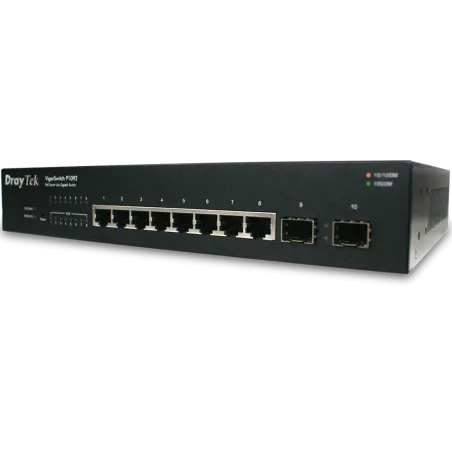

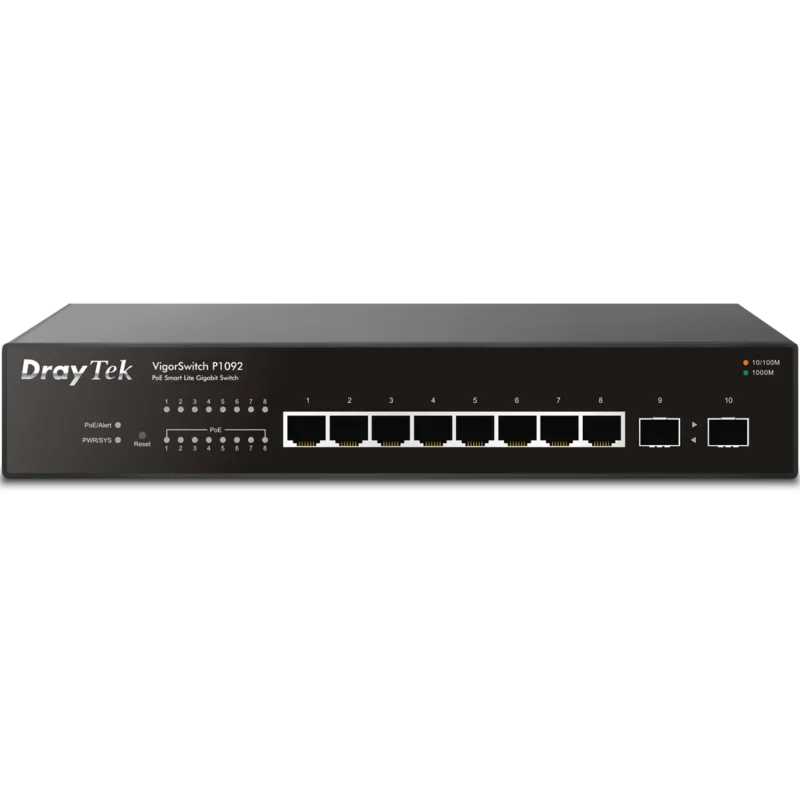

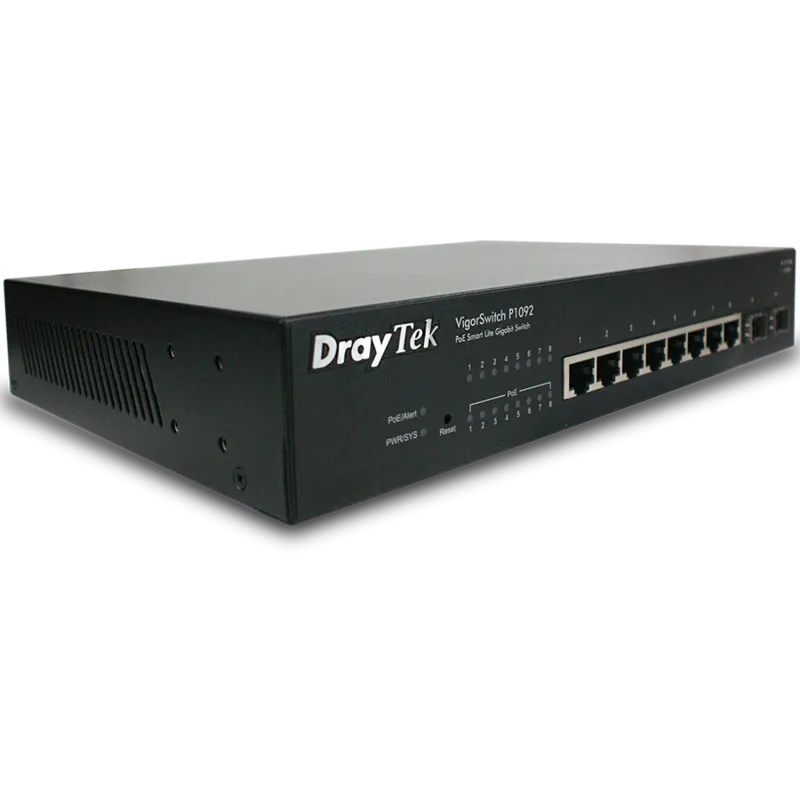

Draytek VigorSwitch P1092 Smart Lite Managed Gigabit PoE+ Switch 10 Port, 2 Port SFP จ่ายไฟ POE มาตรฐาน 802.3at จำนวน 8 Port กำลังไฟสูงสุด 110W |
---|---|
Interface |
|
Ethernet Port |
8 x 10/100/1000Mbps Ethernet, RJ-45 |
Fiber Slot |
2 x 100/1000Mbps SFP |
Button |
1x Factory Reset Button |
PoE |
|
PoE Capable Ports |
8 |
PoE Standards |
PoE/PoE+(802.3af/802.3at), Type mode A |
PoE Power Budget |
110 watts |
Capacity |
|
Buffer Size |
1.5 Mbit |
Switching Capacity |
20 Gbps |
Forwarding Rate |
14.9 Mpps (64 bytes) |
MAC Address Table |
4k |
Jumbo Frame |
Up to 9KB |
Networking Standards |
|
IP Version |
IPv4 |
Ethernet Standards |
802.3af PoE |
VLAN |
|
Max.Number of VLAN |
10 |
VLAN Type |
802.1q Tag-based, Port-based |
QoS |
|
Number of QoS Queues |
4 |
Rate Limit |
Port-Based Ingress and Egress |
Queue Scheduling |
SPQ, WFQ |
CoS (Class of Service) |
802.1p CoS |
Traffic Control |
|
Storm Control |
Broadcast, Multicast, Unicast |
Loop Prevention |
|
Link Aggregation |
|
Max. Number of Group |
2 |
Member Port |
GE7 & GE8, SFP1 & SFP2 |
Type |
LACP |
Multicast |
|
IGMP Snooping |
v2 |
Max. Number of Multicast Group |
128 |
Management |
|
Web Interface |
HTTP |
Diagnostics Tools |
Port Mirroring |
Config File Export/Import |
|
Managed by Vigor Router SWM |
|
Managed by VigorConnect |
|
Physical |
|
19-inch Rack Mountable |
Mouting Kit Included |
Max. Power Consumption |
141.3 watts |
Dimension |
265mm x 184mm x 44mm |
Weight |
1.68 kg (3.7 lb) |
Operating Temperature |
0 to 45°C |
Storage Temperature |
-20 to 70°C |
Operating Humidity |
10 to 90% non-condensing |
Storage Humidity |
5 to 90% non-condensing |
รับประกัน |
3 ปี |
