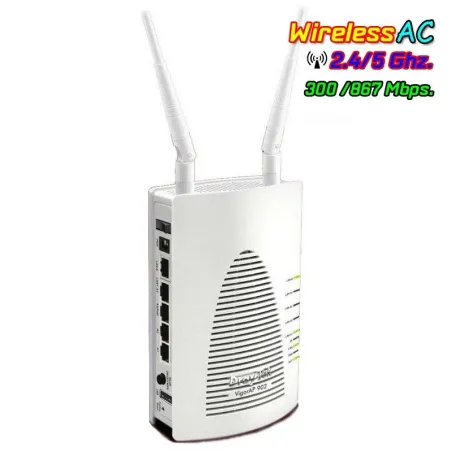

Vigor AP902 Wireless Access Point มาตรฐาน ac Dual Band, TR-069 ,Port Gigabit รองรับ POE

Product Specification

Overview

Vigor AP902 Wireless Access Point มาตรฐาน ac Dual Band 2.4GHz/5GHz, TR-069 ,Port Gigabit รองรับ Vigor central AP management, PoE สำหรับงานระบบไร้สายที่ต้องการความเร็วสูง

Wireless AP

IEEE802.11a/b/g/n/ac
CompliantWireless Client List
64/128-bit WEP/WPA/WPA2

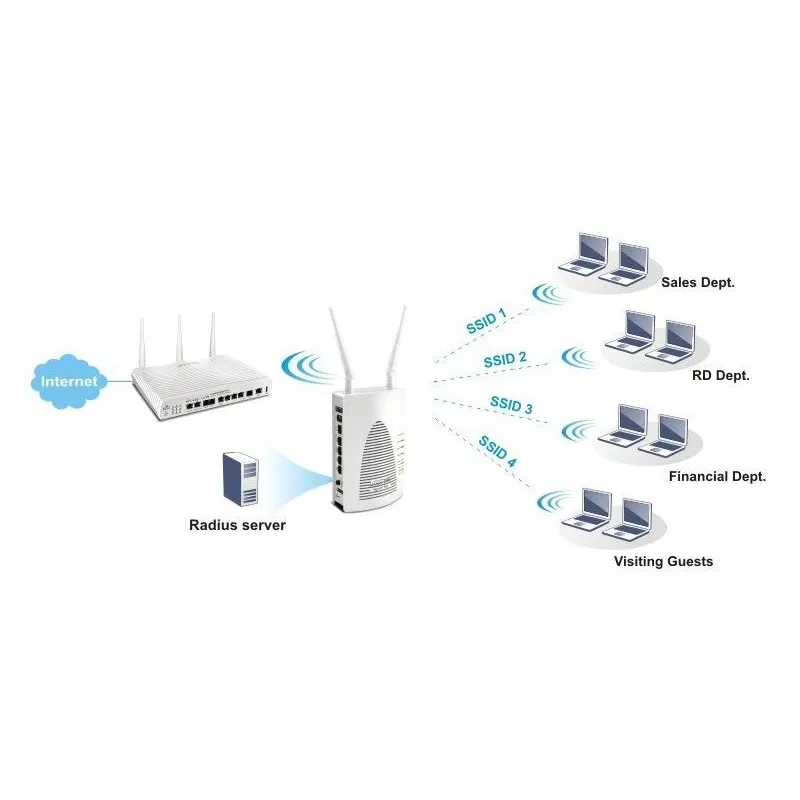

Multiple SSIDs
Hidden SSID
WPS
WMM
MAC Address Control
Wireless Isolation
Internal RADIUS Server (Up to 96 Accounts)
MAC Clone
DHCP Server & Client

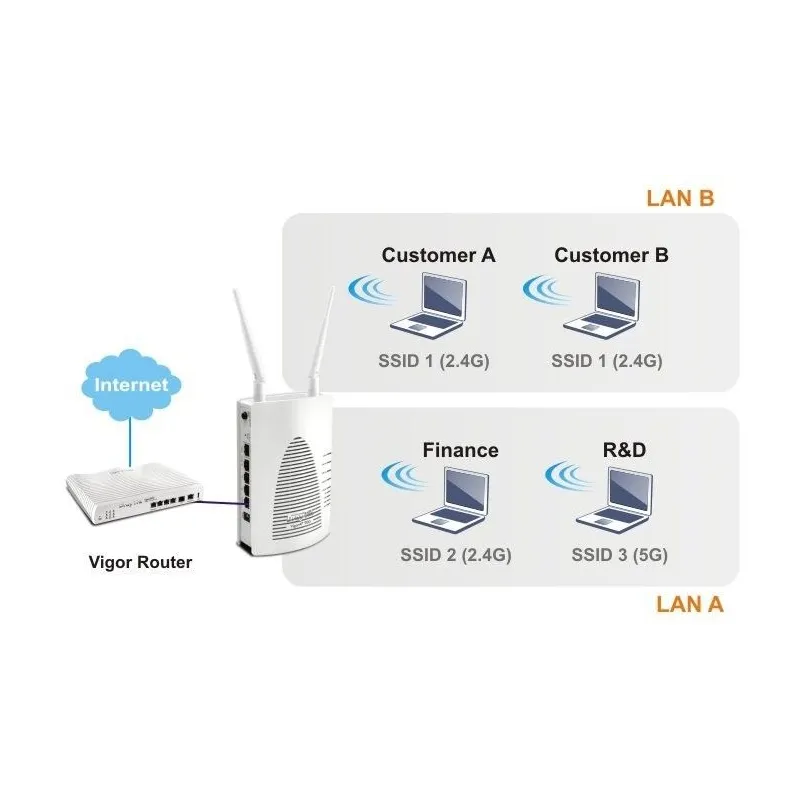

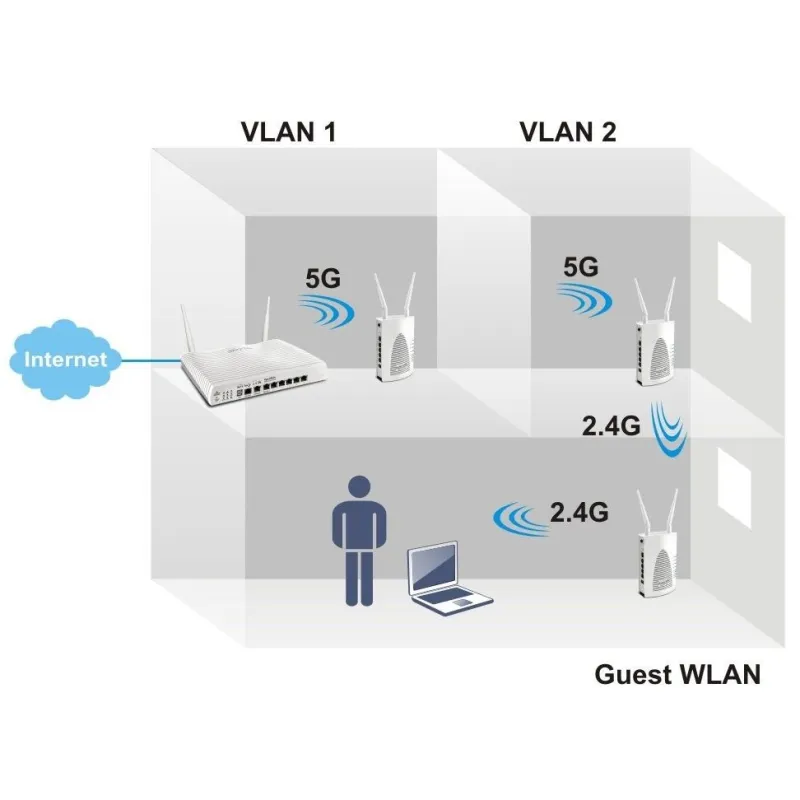

VLAN Grouping and SSID Mapping for
LAN A & B
Management VLAN for LAN A & B
Limited Wireless Clients (Up to 64 Clients)
Bandwidth Management for Multiple SSIDs

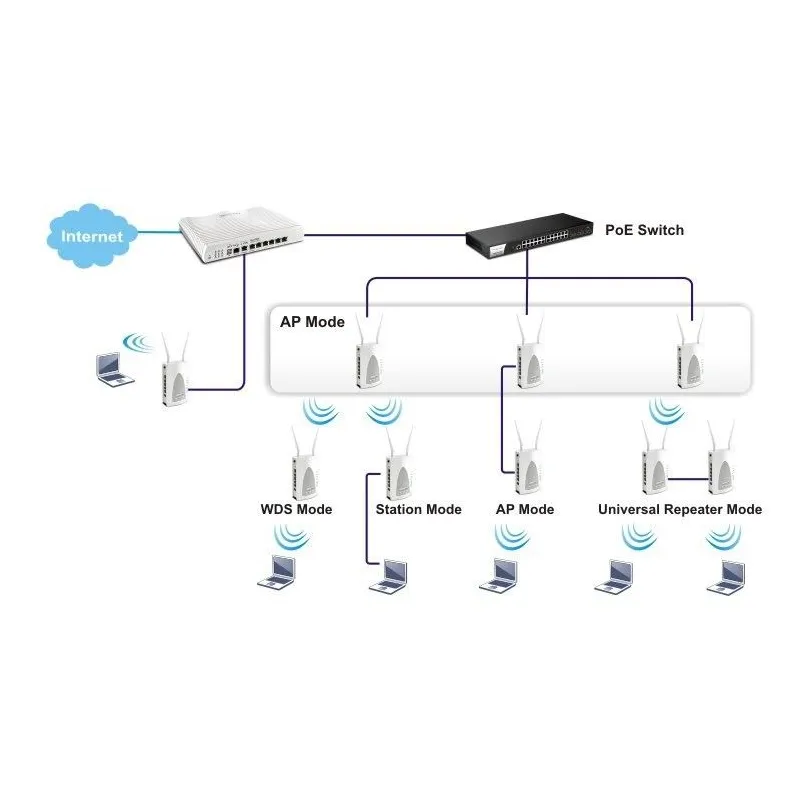

Mode

802.11b/g/n, 2.4G Band:

AP Mode
Station Infrastructure
AP Bridge Point to Point
AP Bridge Point to Multipoint
AP Bridge WDS
(Wireless Distribution System)
Universal Repeater

802.11a/n/ac, 5G Band:
AP Mode
Universal Repeater

802.1x Authentication

Internal RADIUS Server Support PEAP
RADIUS Proxy Support TLS & PEAP

Network Management

Web-based User Interface (HTTP/HTTPS)
CLI (Command Line Interface, Telnet)
Configuration Backup/Restore
Firmware Upgrade via HTTP/HTTPS/TR-069
Syslog

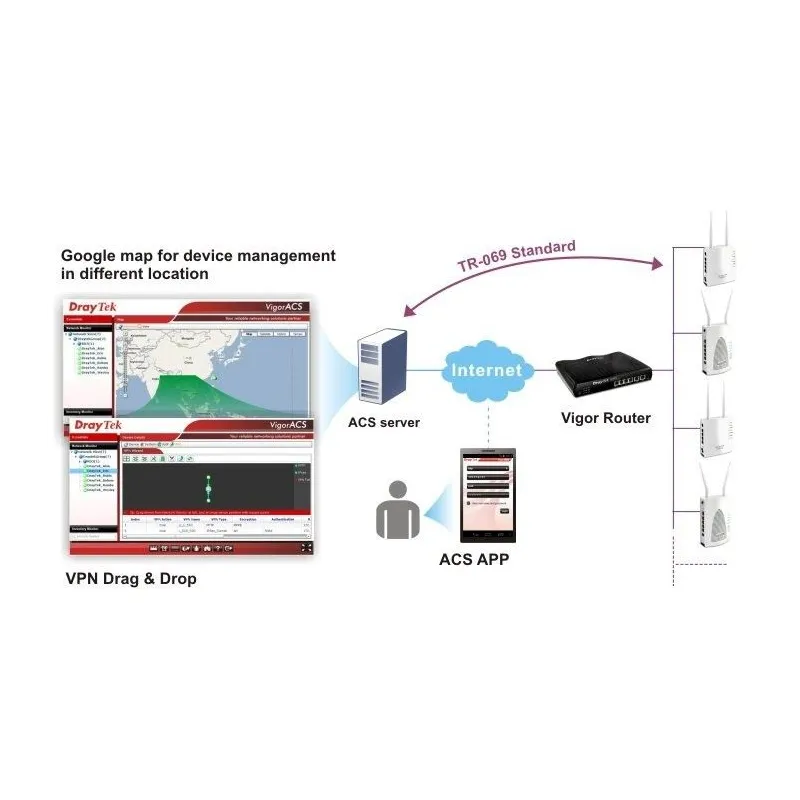

TR-069 (Compliant with VigorACS SI)

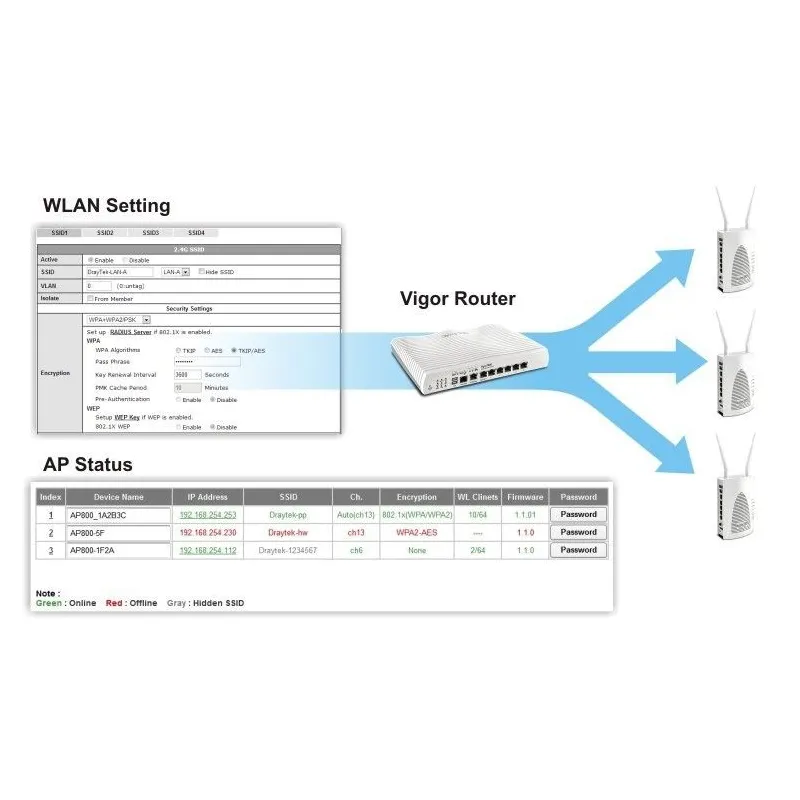

AP Management (with Vigor Series Routers)
AP Status and Traffic Graph/Auto Provision

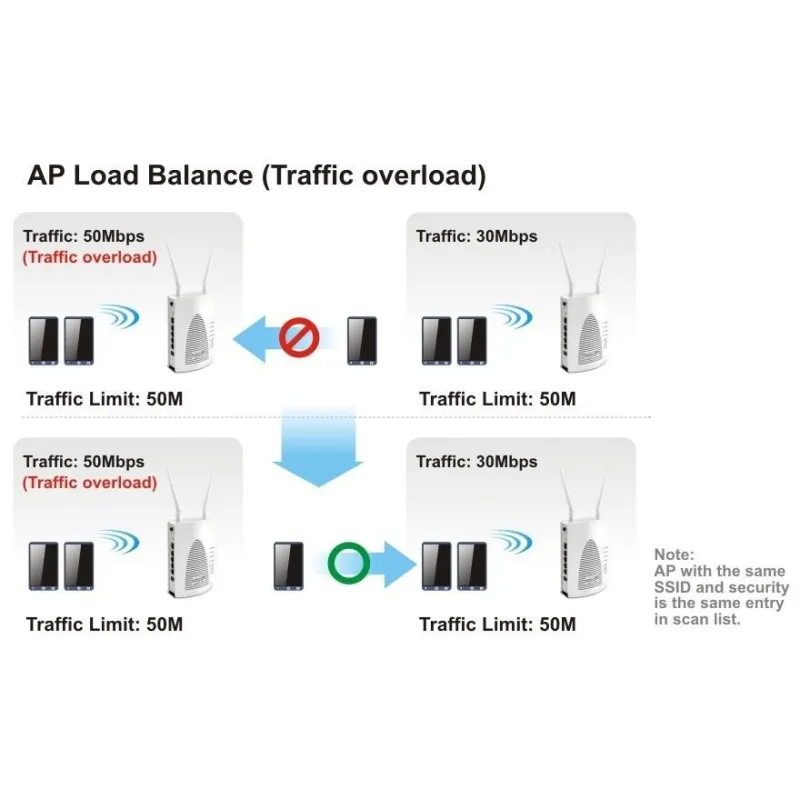

AP Load Balance
Roaming
Rogue AP Detection

USB

Support Thermometer

Hardware Interface

5 x 10/100/1000M Base-T LAN Switch, RJ-45
(LAN A3 for PoE Indoor Use)
1 x USB 2.0 Host
2 x Detached Antennas
1 x Factory Reset Button
1 x Wireless ON / OFF / WPS Button
1 x Power ON / OFF Button

รับประกัน

สินค้ารับประกัน 2 ปี
