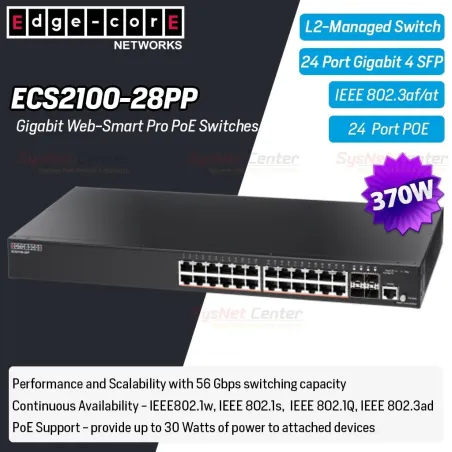

Edgecore ECS2100-28PP L2-Managed Gigabit POE Switches 24 Port, 4 SFP, POE 370W

Product Specification

Overview

Edgecore ECS2100-28PP L2-Managed Gigabit Web-Smart Pro POE Switches 24 Port, 4 Port SFP รองรับ 802.1Q VLAN, LACP, QOS, Port Security, IGMP and MLD, DHCP snooping
POE มาตรฐาน IEEE802.3af/at กำลังไฟสูงสุด 370W

Port

RJ-45 10/100/1000 Ports

24 Port RJ-45 10/100/1000

SFP or SFP+ Uplink Ports

4 (1G)

PoE Ports

24

Console Port

1

Performance

Switching Capacity

56 Gbps

Forwarding Rate

41.7 Mpps

Flash Memory

32 MB

DRAM

256 MB

Packet Buffer

4.1 Mbits

MAC Address Table

8 K

Jumbo Frames

10 K

MTBF

370,636 hrs

Heat Dissipation

1678.743 (Btu/H)

Acoustic Noise

49.7 dB (A)

Power Supply

100-240 VAC, 50-60 Hz

O

Max System Power Consumption (Watts)

490 W (950 W)

PoE

IEEE 802.3af/802.3at

O

PoE Power Budget

370W (740 W)

PoE Timer

O

Mechanical

Rack Space

19"

Form Factor

Rackmount

Dimension (W x D x H)

44 x 22 x 4.4 cm (17.3 x 8.6 x 1.7 in)

Weight

3.1 kg (6.85 lb)

Environmental

Operating Temperature

0 ~ 50?C

Storage Temperature

-40 ~ 70?C

Altitude

3000 m

Operating Humidity (non-condensing)

10% to 90%

Storage Temperature (non-condensing)

10% to 90%

WEEE

O

RoHS

O

Features

L2 Features

RJ-45 port support:
10BASE-T (IEEE 802.3)
100BASE-TX (IEEE 802.3u)
1000BASE-T (IEEE 802.3ab)

SFP port support:
IEEE 802.3u(100BASE-FX) transceivers
IEEE 802.3z(1000BASE-SX/LX/LHX/ZX) transceivers

Digital Diagnostic Monitoring(DDM) on 1G SFP port
Flow Control :
IEEE 802.3x for full-duplex mode
Back-pressure for half-duplex mode

Spanning Tree Protocol:
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Rapid Spanning Tree Protocol
(MSTP, 64 instances)
Loopback Detection
BDPU Filter/Guard
BDPU Forward
Root Guard

VLANs:
Supports 4K IEEE 802.1Q VLANs
Port-Based/MAC-Based/IEEE802.1v (Protocol-Based VLAN)
Guest VLAN
Auto Voice VLAN

Link Aggregation:
Static Trunk
IEEE 802.3ad(802.1ax) Link Aggregation Control Protocol (LACP)

IGMP Snooping:
IGMP v1/v2/v3 snooping
IGMP Filtering/Throttling
IGMP Queries
IGMP Immediate leave
MLD Snooping

LLDP/LLDP-MED
Green-Saving: IEEE 802.3az/Cable Length/No Link Power-Saving
Jumbo Frame: 10 K
Cable Diagnostic
Q-in-Q
mDNS
IP Clustering (Software Stacking)

L3 Features

Static Routing
RIP (ECS2100-10T/10P/10PE/28T/28P/28PP only )

QoS Features

Rate Limiting (Ingress/Egress Port-Based):
64 Kbps ~ 1000 Mbps
Resolution 16 Kbps

Priority Queues Schedule (WRR/Strict Priority/Hybrid QoS)
Port-Based QoS
IPv4/IPv6 DSCP
DiffServ
Auto VoIP
8 HW Queues per port
Dynamic QoS

IPv6

IPv4/IPv6 Dual Protocol Stack

IPv6 Management
|IPv6 Ping/Trace
IPv6 Telnet
IPv6 Syslog
IPv6 TFTP

HTTP over IPv6
SNMP over IPv6

PoE

Support IEEE 802.3af (15.4 W)/IEEE802.3at (30W) on each port (Total PoE Power Budget as follows):
ECS2100-10PE (65 W)
ECS2100-10P (125 W)
ECS2100-28P (200 W)
ECS2100-28PP (370 W)
(Up to 740W using PS3000+EPS460W)

Dynamic Power Allocation
Auto disable after exceeding power budget
PoE Timer

Security

DDOS Protection
CPU Guard (CPU Protection)
Port Isolation
Port Mirror (One to One, One to Many)
Remote Mirror
Storm Control
Broadcast/Multicast/Unknown Storm Control
IEEE 802.1X

ACL
Ingress Only
L2/L3/L4
ACL entry: 512
IPv4/IPv6
TCP/UDP-Based, MAC-Based ACL

Port Security
MAC Filter
MAC Authentication
Port max count per port
Dynamic VLAN Assignment
Dynamic ARP Inspection
AAA (RADIUS/TACACS+)
IP Source Guard

SSH v1.5/v2.0
SSL v1/v2/v3
SSL IPv4/IPv6

SFlow
(10T/P/PE/28T/28P/28PP Trace on port -Ingress only)
(52T/26T trace multi port)

Web Authentication

Management

System password protection
NTP/SNTP
Dual Image/Configuration
Configuration upload/download (HTTP/TFTP/FTP/SFTP)
Firmware upload/download (HTTP/TFTP/FTP/SFTP)
Auto Firmware Upgrade
RMON (groups 1,2,3 and 9)

SNMP
SNMP Trap
SNMP v1/v2c/v3
SNMP Standard/Private MIB

Management Access (Console/SNMP/Web /Telnet )
Memory Flash Log
Event/Error Log/Syslog
DHCP v4/v6 Client//DHCP Snooping
DHCP Snooping Option82
Dynamic Provision (via Option 66,67)
DHCP Relay v4 (v6)
Port Mirroring (One to One) TX/RX (both)
DNS Client without DNS proxy

รับประกัน

Limited Lifetime
