ECS5512FP Product Specification |
Overview | EnGenius ECS5512F Cloud Managed Switch 12 Port SFP+ 10Gbps, ควบคุมการทำงานเครือข่าย EnGenius Cloud Platform |
Technical Specifications |
| Port Standards | 802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3bz 2.5G/5GBase-T Ethernet 802.3x Full-Duplex Flow Control |

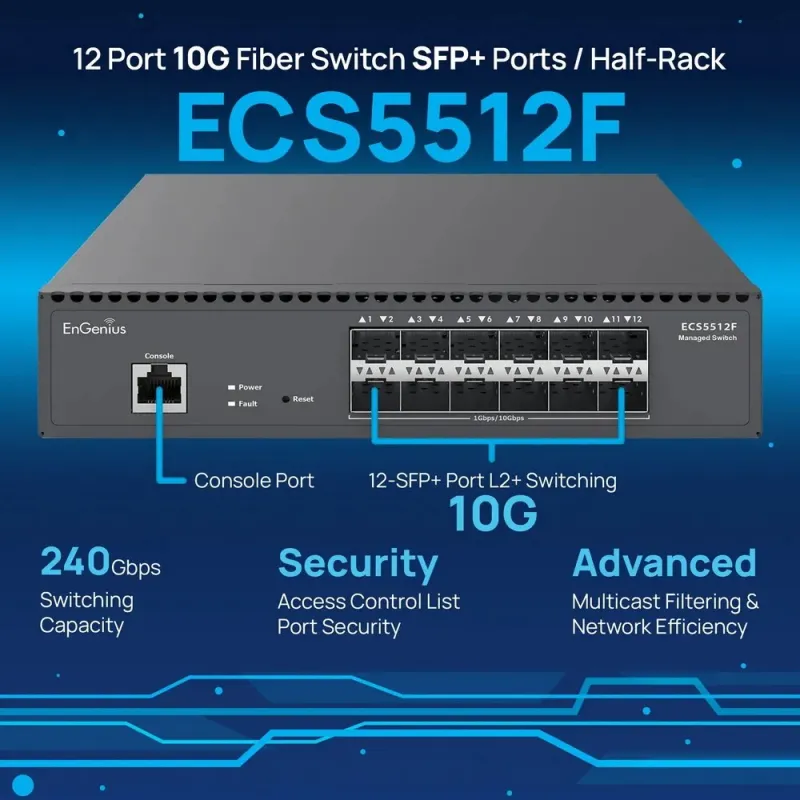

| Network Ports | 12x SFP+ Ports |
| Switching Capacity | 240 Gbps |
| SDRAM | 512 MB |
| Flash Memory | 128 MB |
| PoE Capable Ports | - |
| Total PoE Budget | - |
| Power Source | 100 ~ 240VAC, 50-60Hz |
Physical Interface |
| System Indicators | Power LED Fault LED |
| Port Indicators | Link/Activity/Speed (per Ethernet port) Link/Activity/Speed (per SFP slot) |
L2 Features |
| Network Management | EnGenius Cloud Local Web GUI |
| MAC Address Table | 32K |
| Jumbo frame size | 10K |
| Multicast Group | Max 256 groups |
| MLD Snooping | MLD Snooping: v1 |
| QoS | Cos/802.1p DSCP CoS/802.1p-DSCP |
| Scheduling Mechanism | Strict / WRR/ Strict + WRR |
| Bandwidth Control | Port-based bandwidth control (Ingress/Egress) |
| Port Security | Max. 256 Entries |
| Access Control List (ACL) | MAC Based ACL IPv4/IPv6 Based ACL ACL Binding |
| Web Graphical User Interface (GUI) | HTTP IPv4 / IPv6 HTTPS IPv4 / IPv6 |
| SNMP | SNMP v1/v2c/v3 Support |
| RMON | RMON 1,2,3,9 |
| System Time | Time Setting/Daylight saving |
| Common L2 Features | 802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filitering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG |
L3 Features |
| Multiple IP Interface | 20 IPv6 address |
| ARP Table | Max. 192 ARP entries |
| IPv4 Static Route | Max. 63 entries |
| IPv6 Static Route | Max. 21 entries |
Environmental & Physical |
| Temperature Range | Operating: 32°F to 122°F (0°C to 50°C) |
| Humidity (Non-Condensing) | 5% – 95% |
| Dimensions & Weight | Weight: 1.39 kg
Width: 210 mm Length: 230 mm Height: 44 mm |
รับประกัน |
| ประกัน | 5 ปี |
|
