ECW215 Product Specification |

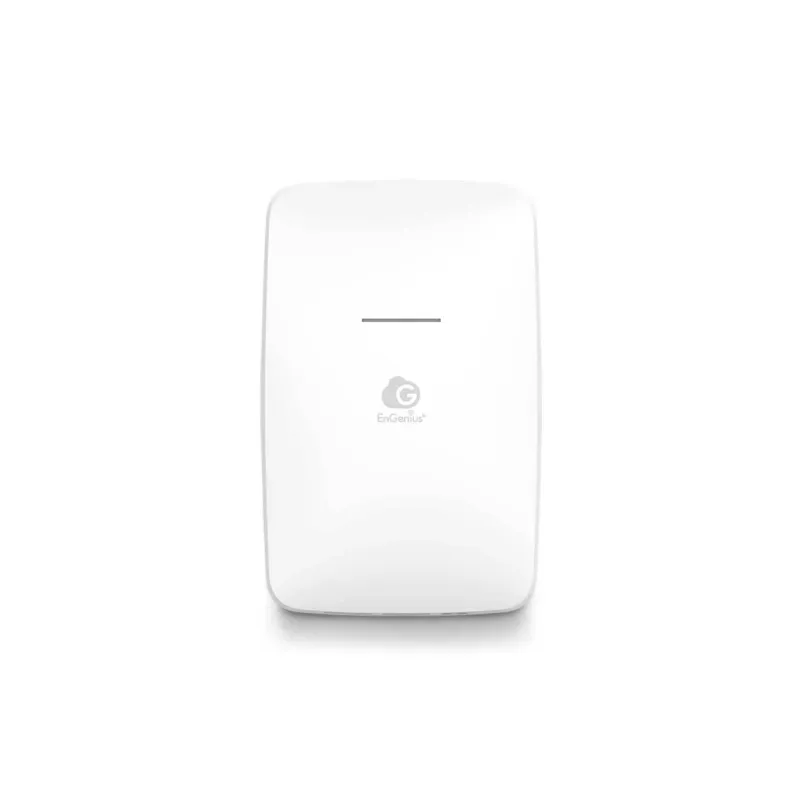

Overview | EnGenius ECW215 Wi-Fi 6 2x2 1800Mbps, Cloud-Managed Wall-Plate Access Point, 2 Port GbE รองรับ POE-Out รองรับการ Managged ผ่าน Engenius Cloud Platform |
Technical Specifications |
| Standards | IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11a/b/g/n/ac
IEEE 802.3 u/ab |
| Antenna | 2 x 2.4 GHz: 4 dBi (Integrated Omni-Directional)
2 x 5 GHz: 5 dBi(Integrated Omni-Directional) |
| Scanning Radio | N/A |
| BLE | N/A |

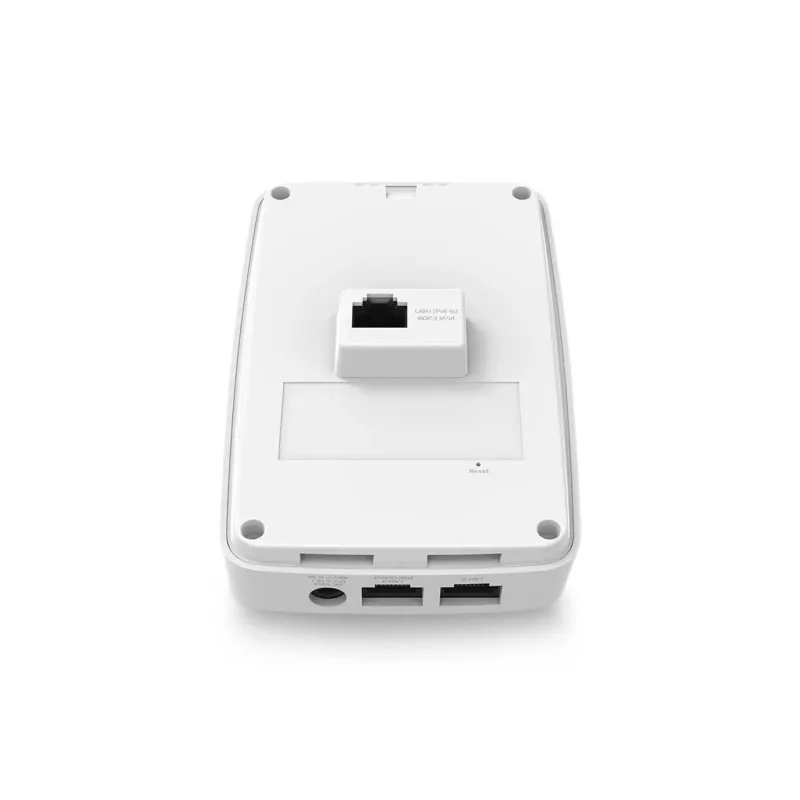

| Physical Interfaces | 2 x GE Port (PoE+)
1 x GE Port (PSE Out ; requires 802.3at power source)
1 x DC Jack
1 x Reset Button |
| LED Indicators | 1 x Multi-color LED |
| Power Source | Power-over-Ethernet: 802.3af/at Input
12VDC /1.5A Power Adapter |
| Maximum Power Consumption | 14.2W |
Wireless & Radio Specifications |
| Operating Frequency | Dual-Radio Concurrent 2.4 GHz & 5 GHz |
| Operation Modes | Managed mode: AP, AP Mesh, Mesh |
| Frequency Radio | 2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz,5725 MHz ~ 5850 MHz |
| Transmit Power | Up to 20 dBm on 2.4 GHz
Up to 20 dBm on 5 GHz
(Maximum power is limited by regulatory domain) |
| Radio Chains | 2 × 2:2 |
| SU-MIMO Capability | Two (2) spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with HE40 bandwidth to a 2×2 wireless client device under the 2.4GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5GHz radio. |
| MU-MIMO Capability | Two (2) spatial streams Multiple (MU)-MIMO up to 1,200 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Two (2) spatial streams Multiple (MU)-MIMO up to 574 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously. |
| Supported Data Rates | 802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1200 (MCS0 to MCS11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2) |
| Supported Radio Technologies | 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS) |
| Channelization | 802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
| Supported Modulation | 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK |
| DFS Certification | N/A |
| AirGuard (WIPS/WIDS) | N/A |
| Zero-wait DFS | N/A |
| Dedicated Scanning Radio | N/A |
| Max Concurrent User | 128 Per radio |
| Client Balancing | Yes |
| Auto Channel Selection | Yes |
Management Features |
| Multiple BSSID | 8 SSIDs on both 2.4GHz and 5GHz bands |
| VLAN Tagging | Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN |
| Spanning Tree | Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) | Compliance With IEEE 802.11e Standard
WMM |
| SNMP | v1, v2c, v3 |
| MIB | I/II, Private MIB |
| Fast Roaming | 802.11r/k |
| Wireless Security | WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control |
| Interface | IPv4, IPv6 |
| Local Web Access | Supports HTTP or HTTPS |
Environmental & Physical |
| Temperature Range | Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC) |
| Humidity (non-condensing) | Operating: 90% or less
Storage: 90% or less |
Dimensions & Weight |
| Weight | 269g |
| Dimensions | Width: 140 mm
Length: 90 mm
Height: 40 mm |
| Package Contents | 1 – ECW215 Cloud Managed Indoor Access Point
1 – Junction Plate (short)
1 – Junction Plate (tall)
1 – Mounting Screw Kit
1 – Product Card |
| Regulatory Compliance | FCC
CE
IC |
Warranty | 2 ปี |
