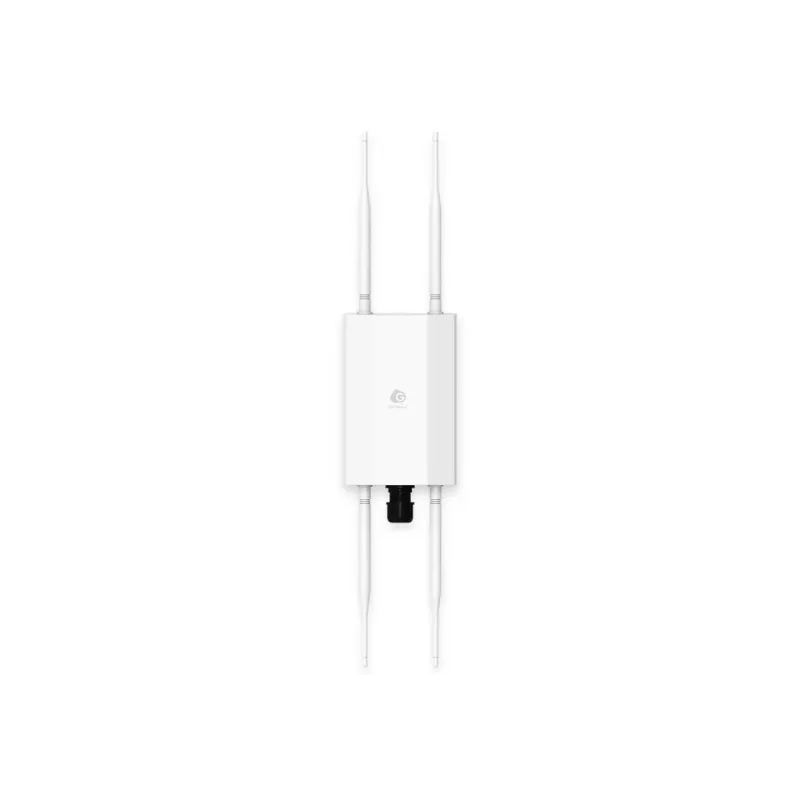

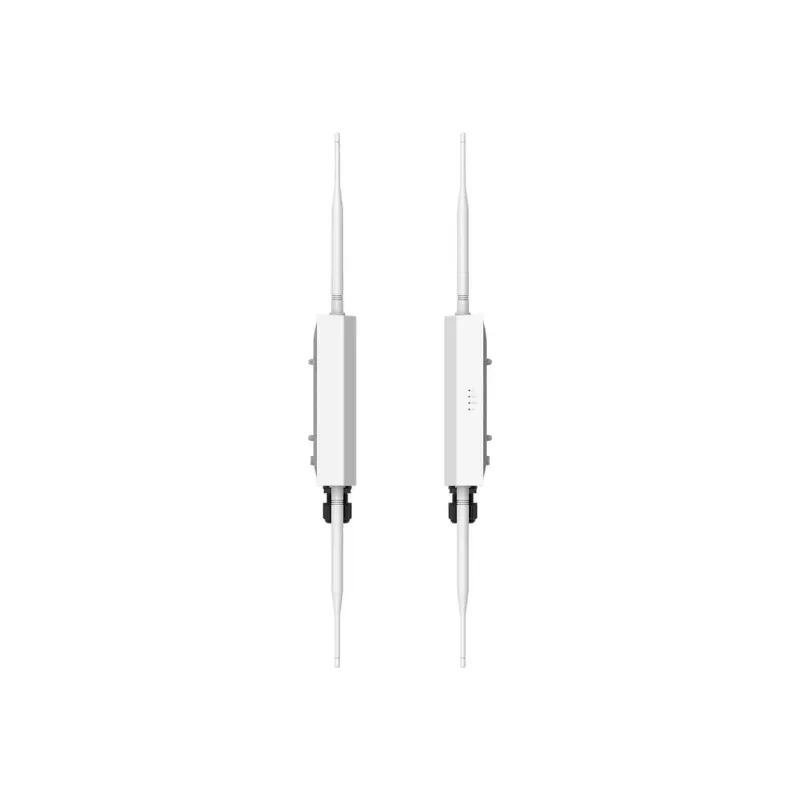

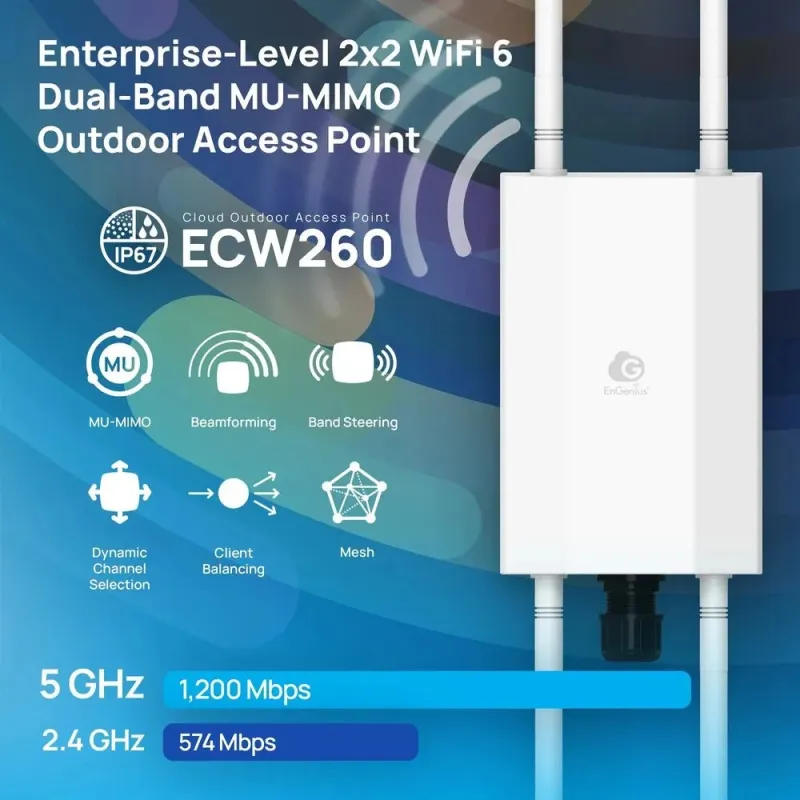

EnGenius ECW260 Cloud Managed AX1800 MU-MIMO Outdoor Wireless Access Point ความเร็วสูงสุด 1.77Gbps เสา 5dBi IP67 Port LAN 2.5Gbps รองรับการ Managged ผ่าน Engenius Cloud Platform
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
Cloud6 2x2 Outdoor_ECW260 Datatsheet
Cloud Managed Access Points Datasheet
EnGenius Cloud Management Datasheet
EnGenius Cloud User Manual
ECW260 Product Specification | |
Overview | EnGenius ECW260 Cloud Managed AX1800 MU-MIMO Wave 2 Outdoor Wireless Access Point ความเร็วสูงสุด 1.77Gbps เสา 5dBi กันน้ำกันฝุ่นมาตรฐาน IP67, Port LAN 2.5Gbps รองรับการ Managged ผ่าน Engenius Cloud Platform |
Technical Specifications | |
| Standards | IEEE 802.11ax on 2.4 GHz IEEE 802.11ax on 5 GHz Backward compatible with 802.11a/b/g/n/ac IEEE 802.3 u/ab |
| Antenna | 2 x 2.4 GHz: 5 dBi(External Omni-Directional) 2 x 5 GHz: 5 dBi(External Omni-Directional) |
| Scanning Radio | N/A |
| BLE | N/A |
| Physical Interfaces | 1 x 2.5GE Port (PoE+) |
| LED Indicators | 1 x Power 1 x LAN 1 x 2.4 GHz 1 x 5 GHz |
| Power Source | Power-over-Ethernet: 802.3af/at Input Active Ethernet (PoE) |
| Maximum Power Consumption | 15.9W |
Wireless & Radio Specifications | |
| Operating Frequency | Dual-Radio Concurrent 2.4 GHz & 5 GHz |

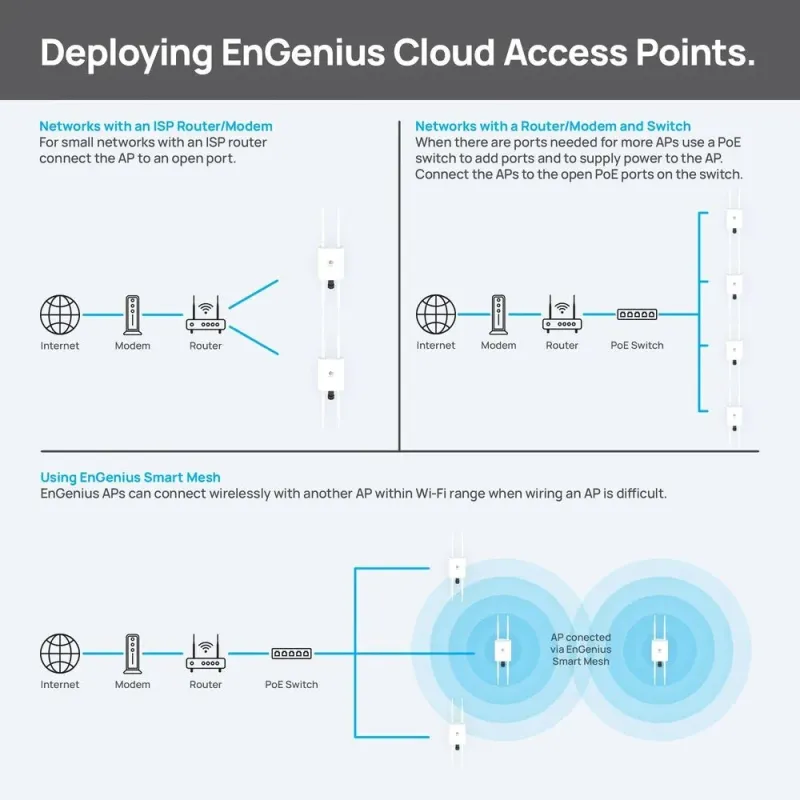

| Operation Modes | Managed mode: AP, AP Mesh, Mesh |
| Frequency Radio | 2.4 GHz: 2400 MHz ~ 2482 MHz 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz |
| Transmit Power | Up to 23 dBm on 2.4 GHz Up to 23 dBm on 5 GHz (Maximum power is limited by regulatory domain) |
| Radio Chains | 2 × 2:2 |
| SU-MIMO Capability | Two(2) spatial streams SU-MIMO for 2.4GHz and two(2) spatial streams SU-MIMO for 5GHz up to totally 1,774Mbps wireless data rate to a single 11ax wireless client device under the both 2.4GHz and 5GHz radio |
| MU-MIMO Capability | Two(2) spatial streams multi-user (MU)-MIMO for up to 1201 Mbps wire-less data rate to transmit to one(1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously. Two(2) spatial streams multi-user (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one(1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously. |
| Supported Data Rates | 802.11ax: 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2) 5 GHz: 18 to 1200 (MCS0 to MCS11, NSS = 1 to 2) 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 300 (MCS0 to MCS15) 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2) |
| Supported Radio Technologies | 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) |
| Channelization | 802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz 802.11n supports high throughput (HT) —HT 20/40 MHz 802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
| Supported Modulation | 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11b: BPSK, QPSK, CCK |
| DFS Certification | FCC/CE/IC |
| AirGuard (WIPS/WIDS) | N/A |
| Zero-wait DFS | N/A |
| Dedicated Scanning Radio | N/A |
| Max Concurrent User | 512 Per radio |
| Client Balancing | Yes |
| Auto Channel Selection | Yes |
Management Features | |
| Multiple BSSID | 8 SSIDs on both 2.4GHz and 5GHz bands |
| VLAN Tagging | Supports 802.1q SSID-to-VLAN Tagging Cross-Band VLAN Pass-Through Management VLAN |
| Spanning Tree | Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) | Compliance With IEEE 802.11e Standard WMM |
| SNMP | v1, v2c, v3 |
| MIB | I/II, Private MIB |
| Fast Roaming | 802.11r/k |
| Wireless Security | WPA2-PSK WPA2-Enterprise WPA3-PSK WPA3-Enterprise Hide SSID in Beacons Wireless STA (Client) Connected List Client Isolation Client Access Control |
| Interface | IPv4, IPv6 |
| Local Web Access | Supports HTTP or HTTPS |
Environmental & Physical | |
| Temperature Range | Operating: 32ºF~104ºF (0 ºC~60 ºC) Storage: -40 ºF~176 ºF (-40 ºC~80 ºC) |
| Humidity (non-condensing) | Operating: 90% or less Storage: 90% or less |
| IP Rating | IP67 |
| Surge Protection | 1KV |
| ESD Protection | Contact: 4KV Air: 8 K |
| Humidity (non-condensing) | Operating: 90% or less Storage: 90% or less |
Dimensions & Weight | |
| Weight | 720 g |
| Dimensions | Width: 124 mm Length: 190 mm Height: 52.5 mm |
| Package Contents | 1 – ECW260 Cloud Managed Outdoor Access Point 2 – Pole-Mounting Brackets 1 – Wall-Mount Screw Set 2 – 2.4GHz 5dBi SMA Antennas 2 – 5GHz 5dBi SMA Antennas 1 – Product Card |
| Regulatory Compliance | FCC CE IC |
Warranty | 2 ปี |
