ECW536 EnGenius Cloud Managed WiFi 7 4x4x4 Indoor Access Point 11.6Gbps

EnGenius

EnGenius ECW536 Cloud Managed Wi-Fi 7 4x4x4 Indoor Wireless Access Point Tri-Band 2.4/5/6GHz ความเร็วสูงสุด 11.6Gbps, Port Lan 10Gbps รองรับ WIFI-Mesh, รองรับการ Managed ผ่าน Engenius Cloud

฿0.00
ยังไม่ได้รวมภาษี
จำนวน
1 รายการ

Rating:
(0)


สอบถามรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet

Click ขอใบเสนอราคา

close

แบบฟอร์มขอใบเสนอราคา



รายละเอียด

Cloud Management Datasheet
Cloud Solution White Paper

Cloud Managed Access Points Datasheet

Cloud7 4x4x4_ECW536 Datasheet

EnGenius Cloud Solution Brochure

EnGenius Cloud User Manual



ECW536 Product Highlight

EnGenius Cloud Managed Wi-Fi 7 4x4x4 Access Point ECW536 supports tri-concurrent 802.11be Wi-Fi 7 architecture, delivering supercharged speeds up to11,600 Mbps on 6 GHz, 5,800 Mbps (5 GHz), and up to 1,400 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it's easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.

  •     Tri- concurrent 802.11be Wi-Fi 7 architecture & backward-compatible
  •     Supercharged speeds up to 11,600 Mbps on 6 GHz, 5,800 Mbps (5 GHz) & up to1,400 Mbps (2.4 GHz)
  •     10 GbE realizes greater throughput and supports 802.3bt and 60W PoE injector input for flexible installation over 100 meters (328 feet)
  •     WPA3 & WPA2-AES authentication support
  •     Cloud Managed with AP & Mesh mode
  •     Quick-scan device register & configuration and remote monitoring & troubleshooting
  •     Cloud manage an unlimited number of APs from anywhere with the EnGenius Cloud App
  •     Mesh Wireless Support simplifies setup, optimizes signals & self-heals



Product Specification

Overview

EnGenius ECW536 Cloud Managed Wi-Fi 7 4x4x4 Indoor Wireless Access Point Tri-Band 2.4/5/6GHz ความเร็วสูงสุด 11.6Gbps, Port Lan 10Gbps x 2

รองรับ WIFI-Mesh, รองรับการ Managed ผ่าน Engenius Cloud

Technical Specifications

Standards IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
Backward compatible with 802.11a/b/g/n/ac/ax
Antenna 4 x 2.4 GHz: 5 dBi(Integrated Omni-Directional)
4 x 5 GHz: 6 dBi(Integrated Omni-Directional)
4 x 6 GHz: 5 dBi(Integrated Omni-Directional)

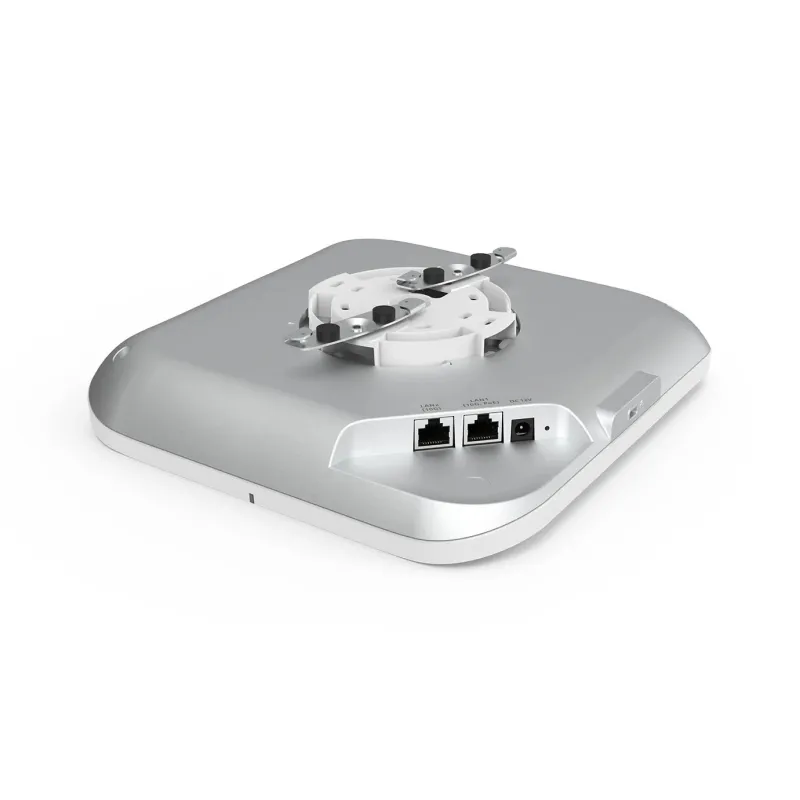

Physical Interface 1 x 10GE Port (PoE++)
1 x 10GE Port
1 x DC Jack
1 x Reset Button
LED Indicators

1 x Multi-color LED

Power Source Power-over-Ethernet: 802.3bt Input
12VDC /3A Power Adapter
Maximum Power Consumption

38W

Wireless & Radio Specifications

Operating Frequency

Tri-Radio Concurrent 2.4 GHz & 5 GHz & 6GHz

Operation Modes

Managed mode: AP, AP Mesh, Mesh

Frequency Radio 2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6GHz: 5925-7125MHz
Transmit Power Up to 25 dBm on 2.4 GHz

Up to 24 dBm on 5 GHz

Up to 24 dBm on 6 GHz

(Maximum power is limited by regulatory domain)
Radio Chains

4 × 4:4

SU-MIMO Capability Four(4) spatial stream Single User (SU) MIMO for up to 1,400 Mbps wireless data rate with VHT40 bandwidth to a 4×4 wireless device under the 2.4GHz radio.
Four(4) spatial stream Single User (SU) MIMO for up to 58,00 Mbps wireless data rate with HE160 bandwidth to a 4×4 wireless device under the 5GHz radio.
Four(4) spatial stream Single User (SU) MIMO for up to 11,600 Mbps wireless data rate with EHT320 bandwidth to a 4×4 wireless device under the 6GHz radio.
MU-MIMO Capability Four(4) spatial stream MU-MIMO for up to 1,400 Mbps wireless data rate with VHT40 bandwidth to a 4×4 wireless device under the 2.4GHz radio simultaneously.
Four(4) spatial stream MU-MIMO for up to 5,800 Mbps wireless data rate with HE160 bandwidth to a 4×4 wireless device under the 5GHz radio simultaneously.
Four(4) spatial stream MU-MIMO for up to 11,600 Mbps wireless data rate with EHT320 bandwidth to a 4×4 wireless device under the 6GHz radio simultaneously.
Supported Data Rates

802.11be:
2.4 GHz: Max 1,400 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: Max 5,800 (MCS0 to MCS11, NSS = 1 to 4)
6 GHZ: Max 11,600 (MCS0 to MCS13, NSS = 1 to 4)

802.11ax:
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MCS11, NSS = 1 to 4)
6 GHZ: 18 to 4,800 (MCS0 to MCS13, NSS = 1 to 4)

802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies 802.11be/ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)
Channelization 802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160/320 MHz
802.11ax supports high efficiency throughput (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Management Features

Multiple BSSID

8 SSIDs on both 2.4GHz, 5GHz and 6GHz bands

VLAN Tagging Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service) Complaint With IEEE 802.11e Standard
WMM
SNMP

v1, v2c, v3

MIB

I/II, Private MIB

Fast Roaming

802.11r/k

Wireless Security WPA2-PSK
WPA2-Enterprise
WPA3-PSK WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation

Environmental & Physical

Temperature Range

Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)

Humidity (non-condensing) Operating: 90% or less
Storage: 90% or less
Compliance Regulatory FCC
CE
IC
UKCA

Warranty

2 ปี



รายละเอียดสินค้า
1 รายการ

ข้อมูลสินค้า

ลักษณะงาน Wireless
กระจายสัญญาณ WIFI
ความเร็ว มาตรฐาน WIFI
WIFI-7 (be) 11Gbps+
ย่านความถี่
Tri-Band 2.4/5/6GHz
รองรับ Controller
Cloud Controller
Mode Repeate/WDS/MESH
MESH
รองรับ POE
Yes
