Overview

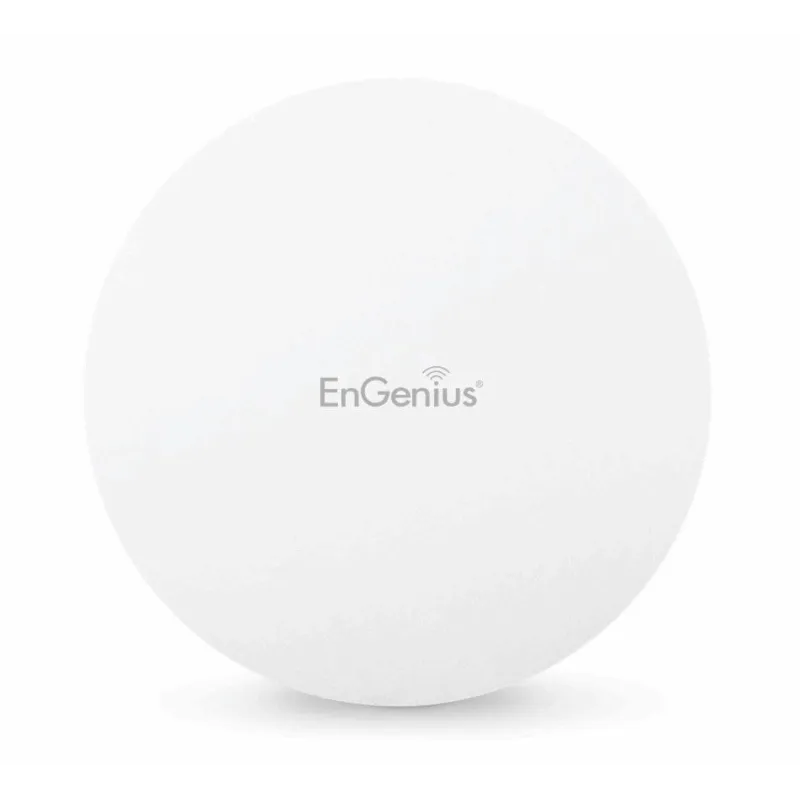

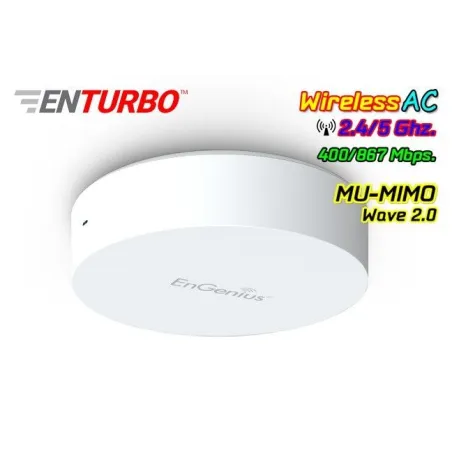

EnGenius EAP1250 Wireless Access Point มาตรฐาน AC MU-MIMO Wave 2 EnTurboDual-Radio 2.4/5GHz ความเร็วสูงสุด 867/400Mbps เสาแบบ Omni Gain ขยาย 5dBi กระจายสัญญาณรอบทิศทาง Port Lan ความเร็ว Gigabit รองรับ POE
เหมาะสำหรับอาคารสำนักงานที่ต้องการอุปกรณ์เชื่อมเครือข่ายแบบไร้สายที่มีความสวยงาม ความเร็วในการสื่อสารทาง Wireless สูงสุด รวมถึงเลี่ยงความแออัดของย่านความถี่ 2.4GHz
Standards
IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz
Processor
Qualcomm? 717 MHz Quad-Core CPU
4x ARM Cortex A7
Antenna
1 x 2.4 GHz: 5 dBi
1 x 5 GHz: 5 dBi
Integrated Omni-Directional Antenna

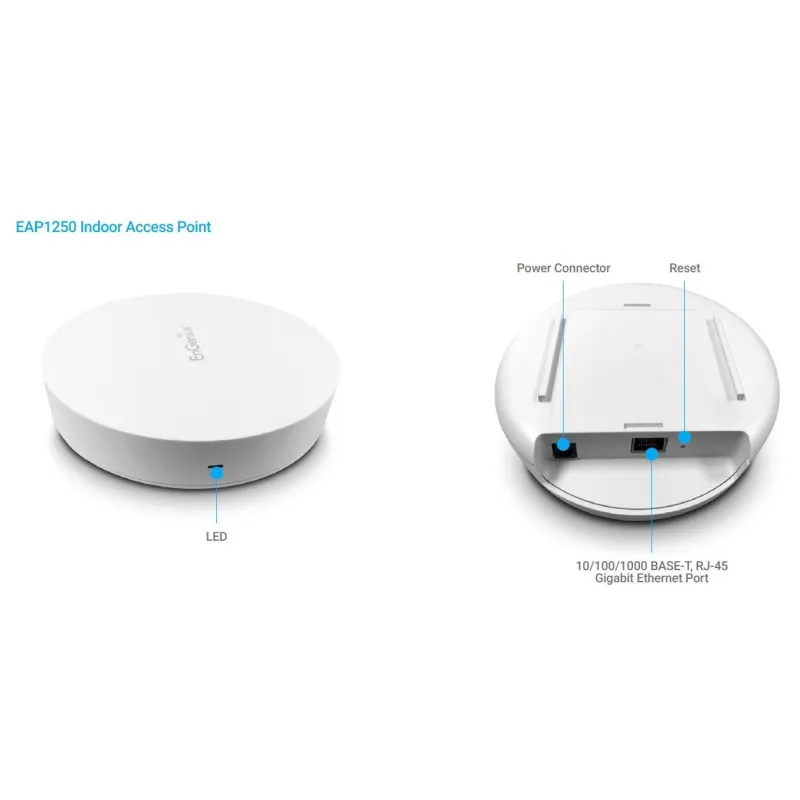

Physical Interface
1 x 10/100/1000 BASE-T, RJ-45 Gigabit Ethernet Port
1x DC Jack
1 x Reset Button
LED Indicators
Power On (Green)
Ready to Config (Yellow)
Internet Connection (Blue)
Internet Disconnection (Red)
Power Source
Power-over-Ethernet: 802.3af Input
IEEE 802.11e Compliant Source
12VDC /1A Power Adapter
Maximum Power Consumption
9W
Surge Protection
0.5KV
Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
Access Point Mode
WDS: WDS AP, WDS Bridge
Frequency Radio
2.4 GHz: 2400 MHz ~ 2472 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Radio Chains/Spatial Stream
2x2:2
SU-MIMO
2.4 GHz - Two (2) Spatial Stream SU-MIMO up to 400 Mbps to individual 2x2 VHT40 client devices (300 Mbps for HT40 802.11n client devices)
5 GHz - Two (2) Spatial Stream SU-MIMO up to 867 Mbps to individual 2x2 VHT40 client devices
MU-MIMO
Two (2) Spatial Stream MU-MIMO up to 867 Mbps to two (2) MU-MIMO capable wireless devices simultaneously
Supported Data Rates (Mbps)
2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technologies
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division
Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 2 Streams
Channelization
802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11n Supports Very High Throughput (VHT)
Under the 2.4 GHz Radio—VHT 40 MHz (256-QAM)
802.11n/ac Packet Aggregation: AMPDU, ASPDU
802.11ac Supports Very High Throughput (VHT)
VHT 20/40/80 MHz
Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Multiple BSSID
Supports 16 SSIDs (8 SSIDs per Band)
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Complaint With IEEE 802.11e Standard
WMM
Wireless Management Features (With ezMaster & Neutron Switch) continued
Wireless Coverage Display
Secure Control Messaging (SSL Certificate)
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
One-Click Update
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler
Control Features
Managed Mode (w/Neutron Switch/ezMaster)
Distance Control (ACK Timeout)
Multicast Supported
Wi-Fi Scheduler
Client Traffic Status
RADIUS Accounting (802.1x)
Power Save Mode (U-APSD Support)
CLI Support
HTTPS
Wireless Security
WEP Encryption 64/128/152 bit
WPA/WPA2 Enterprise (WPA-EAP Using TKIP or AES)
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
Temperature Range
Operating: 32?F~104?F (0 ?C~40 ?C)
Storage: -22 ?F~176 ?F (-30 ?C~80 ?C)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Dimensions & Weights
Weight: 0.41 lbs. (0.18 kg)
Diameter: 5.11” (130 mm)
Height: 1.57” (40 mm)
รับประกัน
3 ปี
