EAP1300 Product Specification |
| เหมาะสำหรับอาคารสำนักงานที่ต้องการอุปกรณ์เชื่อมเครือข่ายแบบไร้สายที่มีความสวยงาม ความเร็วในการสื่อสารทาง Wireless สูงสุด รวมถึงเลี่ยงความแออัดของย่านความถี่ 2.4GHz |

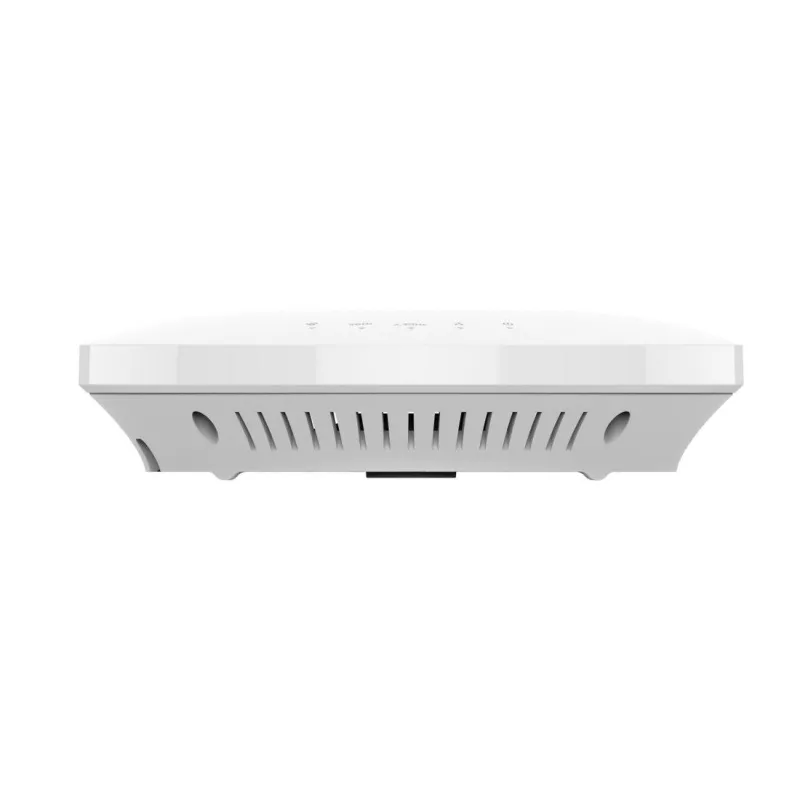

Access Point Type | Indoor, dual radios concurrent, 5GHz 802.11 ac 2x2 MIMO is back-wards compatible with 802.11 a/n mode, 2.4GHz 802.11 n 2x2 MIMO is backwards compatible with 802.11 b/g. |
SU-MIMO | Two(1) spatial stream SU-MIMO for up to 1,267 Mbps wireless data rate to a single wireless client device. |

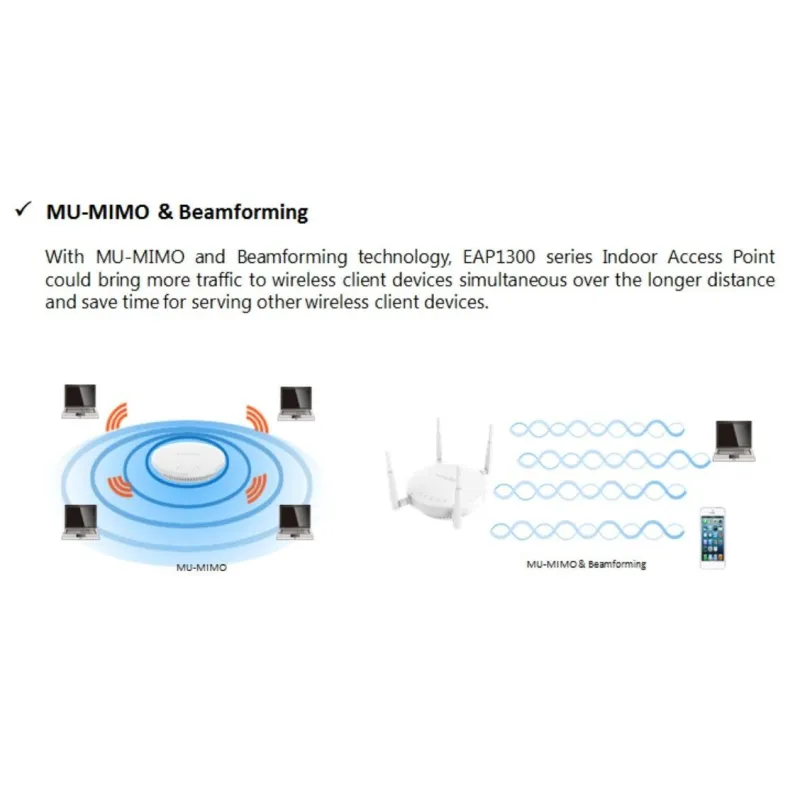

MU-MIMO | Two(1) spatial stream MU-MIMO for up to 867 Mbps wireless data rate to transmit to two(2) MU-MIMO capable wireless client devices simultane-ously. |
Frequency Radio | 2.4GHz: 2400MHz ~ 2835MHz,
5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz, 5470~5725MHz, 5725MHz~5850MHz |
Supported Radio Technology | 802.11ac/a/g/n: Orthogonal frequency-division multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 4 streams
802.11ac supports very high throughput (VHT) — VHT 20/40/80 MHz
802.11n supports high throughput (HT) — HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac packet aggregation: A-MPDU, A-SPDU |
Supported Modulation Type | 802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
Tx Beamforming (TxBF) | Increasing signal reliability and transmitting distance. |
Supported data rates (Mbps) | 802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS=1 to 2) |
Maximum Power Consumption | 10W |
Power Source | Direct DC Input: 12V/1A
Power Over Ethernet: 802.3af Input |
Antenna | 2.4GHz: 5 .0 dBi
5GHz: 5.0 dBi |

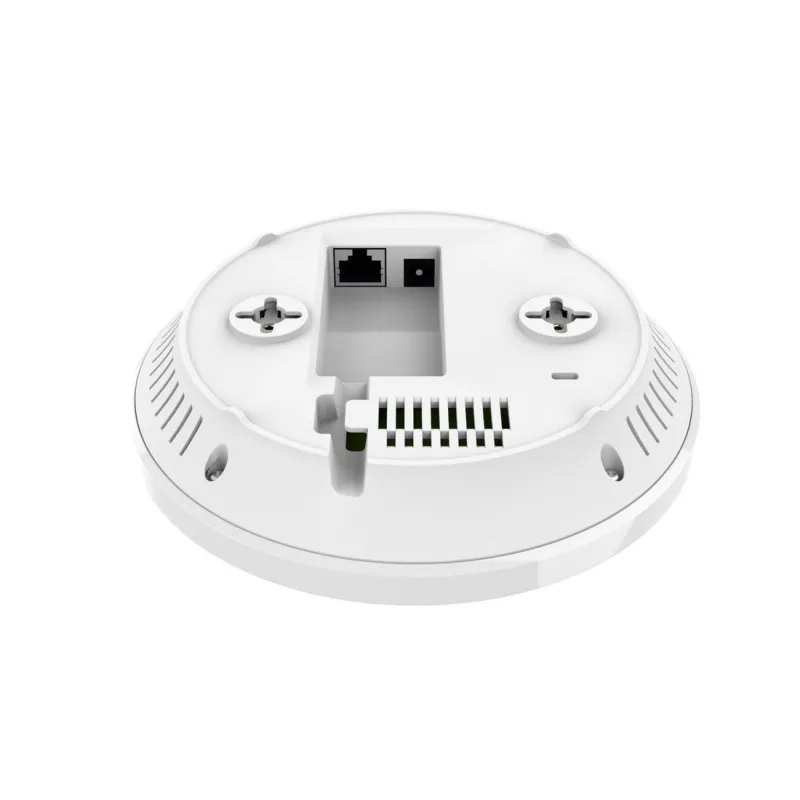

Networking Interface | One (1) 10/100/1000 BASE-T RJ-45 Ethernet Ports |
DC Powering Interface | One (1) DC Jack interface |
LED Indicators | Display system and wireless transmission status |
Reset Button | Convert Access Point to the Factory default or the Users Default |
Dimensions | Diameter : 6.36” (161.54 mm)
Height : 1.64” (41.66 mm) |
Weight | EAP1300 : 336g |
Operating | Temperature: 0?C~40?C (32?F~104?F)
Humidity: 0%~90% typical |
Storage | Temperature: -30?C~80?C (-22?F~176?F)
Humidity: 0%~90% typical |
FCC | Subpart15 B
Subpart C 15.247
Subpart E 15.407 |
CE | EN 300 328
EN 301 893
EN 50385
EN 60601-1-1
EN 60601-1-2
EN 55032
EN 55024 |
รับประกัน | 2 ปี, Adapter 3 เดือน
|
| |
POE Product Specification |

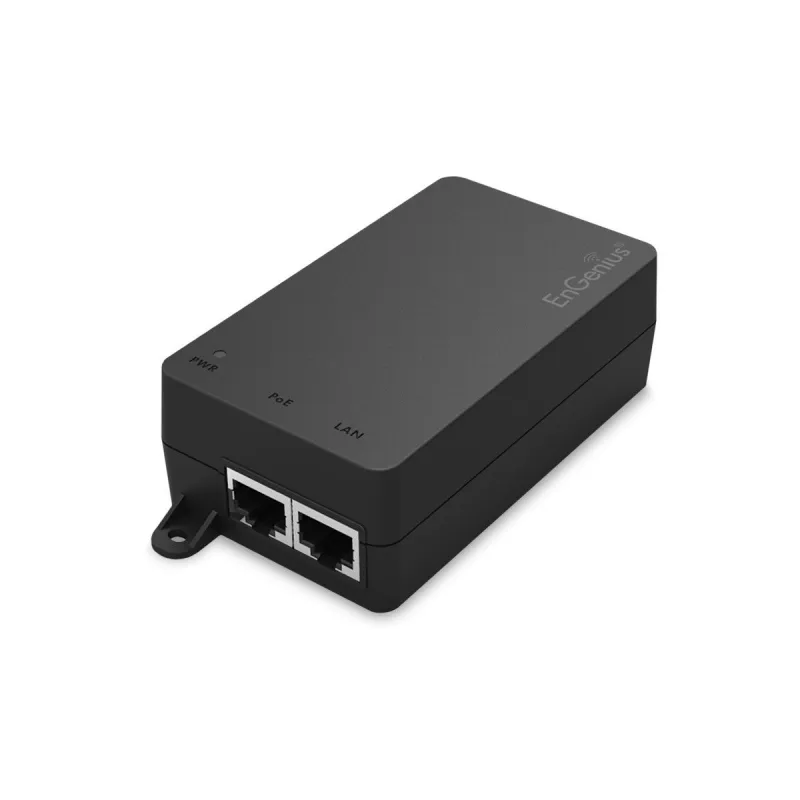

Overview | EnGenius EPA5006GAT PoE Adapter อุปกรณ์จ่ายไฟฟ้าผ่านสายแลน Power Over Ethernet มาตรฐาน 802.3at/af ความเร็ว Gigabit กำลังไฟสูงสุด 30Watt
มีระบบป้องกัน Short-Circuit และ Power Surge Protection ป้องกันไฟกระชาก รวมถึงป้องกัน Electrostatic Discharge (ESD) |
Standards | 802.3 10BaseT
802.3u 100BaseT
802.3ab Gigabit Ethernet
802.3at/af Power-over-Ethernet |
Power | Input voltage : 100 to 240VAC
Input current 0.8A maximum for 100VAC
AC input Frequency 47-63Hz
Maximum output power 30W
Pin 4,5 :54V; Pin 7,8: Return |
Data | Compatible with 10/100/1000 Mbit/s Ethernet, full duplex |
Environment | Operating Temperature : 0?C to 40?C (32 to 104?F)
Storage Temperature : -30?C to 80?C (-22 to 176?F)
Operating humidity: 5 to 90% under Non-condensing |
Added Protection Features | Short-Circuit
Surge (over current/over voltage) |
Surge Protection | L-L: 2KV
L-G: 4KV |
ESD Protection | Contact: 4KV
Air: 8 KV |
Dimension | 100mm x 58.4mm x 33.4mm |
Physical Interface | 1 Port Gigabit Data Port
1 Port Gigabit Data & Power Output Port
1 IEC 320C6 AC Connector |
LEDs Indicators | Power on : green |
Mounting | Mounts to walls |
Compliance | FCC Part 15 Class B
IEC 60950-1:2005+A1
UL60950-1 2nd
CE
ENS55032:2012/AC:2013
EN55024:2010
RCM
AS/NZS60950.1: 2011/Amdt 1: 2012 |
Dimensions & Weights | Weight: .33 lbs. (154 g)
Length: 3.9” (100 mm)
Width: 2.27” (58.5 mm)
Height: 1.3” (33.4 mm) |
รับประกัน | 3 ปี
|
|
