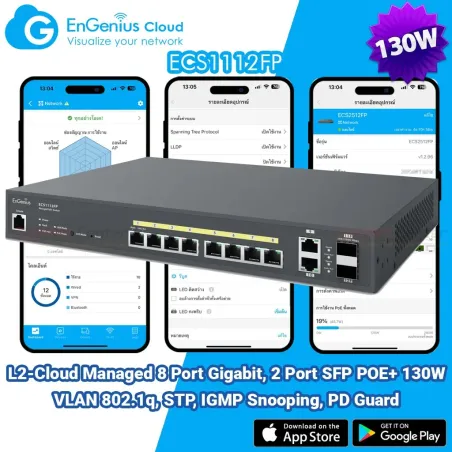

EnGenius ECS1112FP Product Highlight
- 8x Gigabit PoE+ ports and 2 x Dual-Speed SFP (1G Fiber) uplink ports for high-speed connections
- Zero touch provisioning, centralized cloud management and visualized monitoring
- Hybrid cloud switch supports flexible management options such as EnGenius Cloud or standalone
- Robust security that supports Port based / MAC based ACL Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication and more
- Optimized for quality voice and video traffic with Voice-VLAN feature
- PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
- PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
- Continuous PoE Power - Steady supply of PoE power for camera during switch upgrades8x 802.3af/at PoE+ ports with 130W PoE budget
ECS1112FP Product Specification |
Overview | EnGenius ECS1112FP Cloud Managed Layer 2 PoE Switch 8 Port Gigabit, 2 SFP, ควบคุมการทำงานเครือข่าย EnGenius Cloud Platform จ่ายไฟมาตรฐาน 802.3at สูงสุด 130W |
Technical Specifications |
| Port Standards | 802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3x Full-Duplex Flow Control |
| Network Ports | 10 x 10/100/1000 Mbps Ports + 2x SFP Ports |
| Switching Capacity | 24Gbps |
| SDRAM | 256MB |
| Flash Memory | 32MB |
| PoE Capable Ports | 1-8 |
| Total PoE Budget | 130w |
| Power Source | 100 ~ 240VAC, 50-60Hz |
Physical Interface |
| System Indicators | Power LED Fault LED PoE Max LED LAN Mode LED PoE Mode LED |
| Port Indicators | Link/Activity/Speed (per Ethernet port) Link/Activity/Speed (per SFP slot) |
L2 Features |
| Network Management | EnGenius Cloud Local Web GUI |
| MAC Address Table | 8K |
| Jumbo frame size | 10K |
| Multicast Group | Max 256 groups |
| MLD Snooping | MLD Snooping: v1 |
| QoS | Cos/802.1p DSCP CoS/802.1p-DSCP |
| Scheduling Mechanism | Strict / WRR/ Strict + WRR |
| Bandwidth Control | Port-based bandwidth control (Ingress/Egress) |
| Port Security | Max. 256 Entries |
| Access Control List (ACL) | MAC Based ACL IPv4/IPv6 Based ACL ACL Binding |
| Web Graphical User Interface (GUI) | HTTP IPv4 / IPv6 HTTPS IPv4 / IPv6 |
| SNMP | SNMP v1/v2c/v3 Support |
| RMON | RMON 1,2,3,9 |
| System Time | Time Setting/Daylight saving |
| Common L2 Features | 802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filitering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG |
L3 Features |
| Multiple IP Interface | 20 IPv6 address |
| ARP Table | Max. 192 ARP entries |
| IPv4 Static Route | Max. 63 entries |
| IPv6 Static Route | Max. 21 entries |
Environmental & Physical |
| Temperature Range | Operating: 32°F to 122°F (0°C to 50°C) |
| Humidity (Non-Condensing) | 5% – 95% |
| Dimensions & Weight | Weight: 1.9 Kg
Width: 330 mm Length: 230 mm Height: 44 mm |
รับประกัน |
| ประกัน | 5 ปี |
|
รายละเอียดสินค้า
10 รายการ
ข้อมูลสินค้า
- Switches Layer
- L2/L3 Managed
- จำนวน Port Lan
- 8 Port
- ความเร็ว Port Lan
- 1Gbps (Gigabit)
- จำนวน Port POE
- 8 Port
- มาตรฐานจ่ายไฟ POE
- POE+ 802.3at (30W)
- มี Uplink Port Lan Gigabit
- Yes
- จำนวน SFP Port 1Gigabit
- 1 Port
