Technical Specifications |
| Standards | IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac Wave 2 on 5 GHz |
| Processor | Qualcomm® 717 MHz Quad-Core CPU
ARM Cortex A7 |
| Antenna | 2 x 2.4 GHz: 3 dBi
2 x 5 GHz: 3 dBi
Integrated Omni-Directional Antenna |

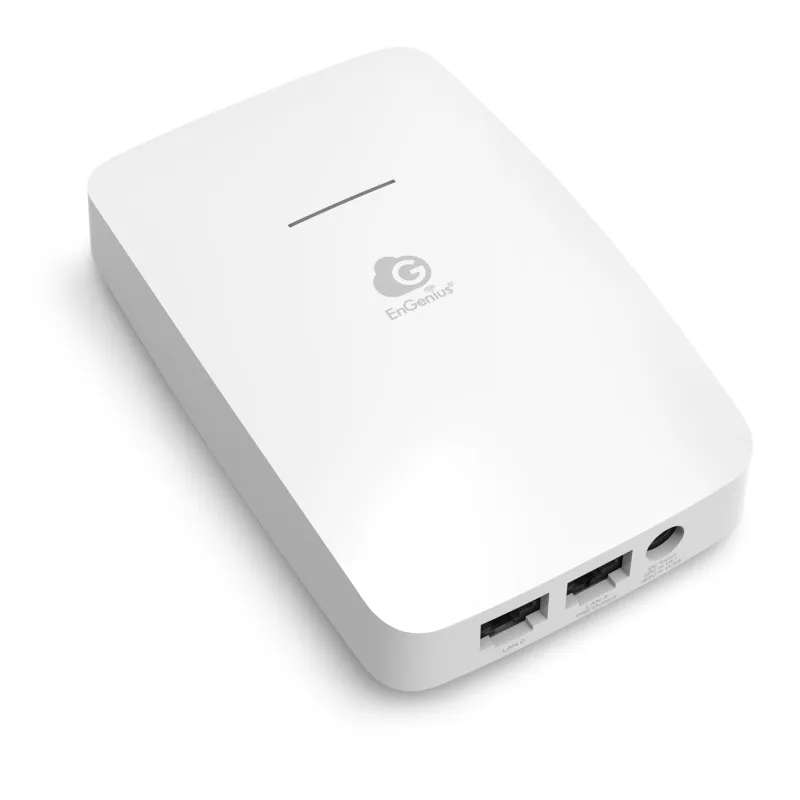

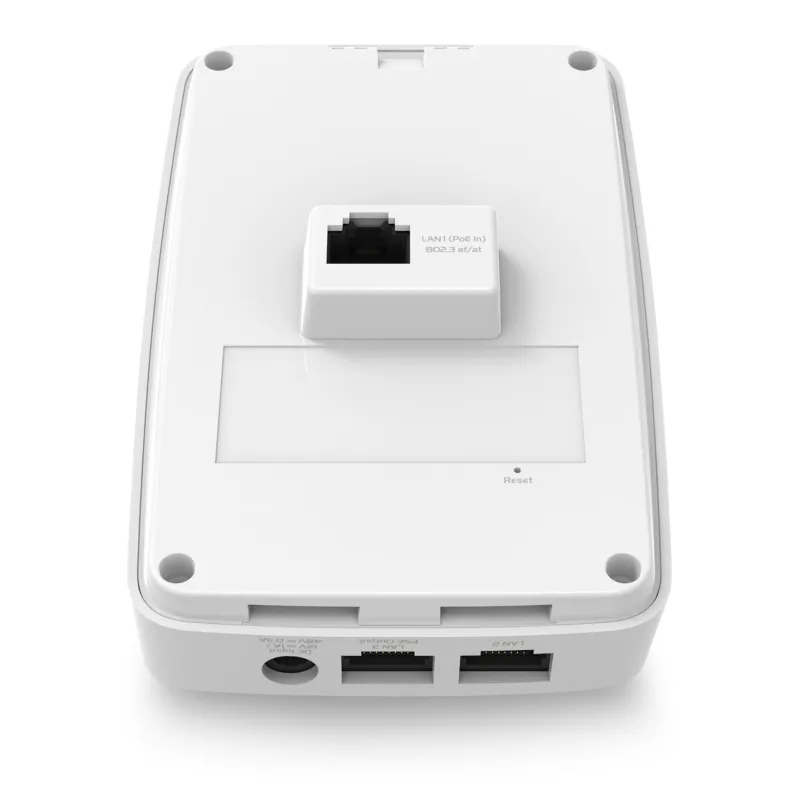

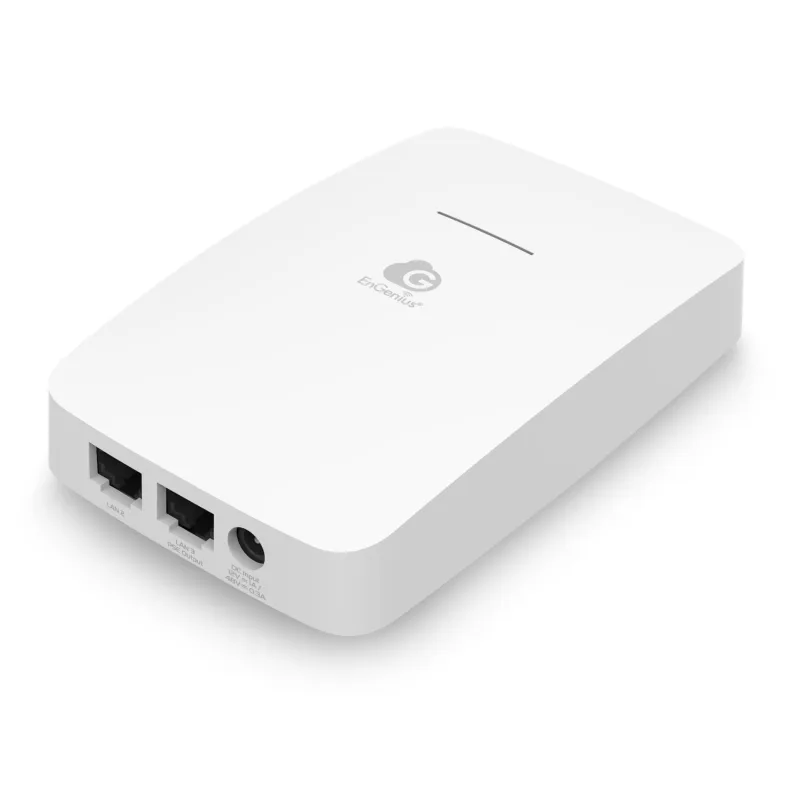

| Physical Interface | 1 x 10/100/1000 Mbps Ethernet Uplink Port (back plate)
2 x 10/100/1000 Mbps Ethernet Switched Ports (client ports)
- Port 1 (PSE) 13W PoE (requires 802.3at power source)
1 x Reset Button
1 x DC Jack |
| LED Indicators | 1 x Multi- color LED for following behavior
- Power up
- Cloud connecting
- Disconnected |
| Power Sourcev Power-over-Ethernet-802.3af Input | Power-over-Ethernet: 802.3af/at Input
- 802.3af Output w/ 802.3at Input
IEEE 802.11e Compliant Source
DC Jack: 12V/ 48V |
| Maximum Power Consumption | 12W |
| Surge Protection | - |
Wireless & Radio Specifications |
| Operating Frequency | Dual-Radio Concurrent 2.4 GHz & 5 GHz |
| Operation Modes | AP, AP Mesh, Mesh |
| Frequency Radio | 2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz |
| Transmit Power | Up to 17 dBm on 2.4 GHz
Up to 17 dBm on 5 GHz |
| Radio Chains/Spatial Stream | 2x2:2 |
| | Tx Beamforming (TxBF) |
| SU-MIMO | Two (2) spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate with VHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2x2 wireless device under the 5GHz radio. |
| MU-MIMO | Two (2) Spatial Stream MU-MIMO up to 867 Mbps to two (2) 1x1 wireless devices simultaneously |
| Supported Data Rates (Mbps): | 2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when enabling 256-QAM under HT40)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2) |
| Supported RadioTechnologies | 802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 2 Streams |
| Channelization | 802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11n Supports High Throughput (HT) Under the 2.4 GHz Radio—HT 40 MHz (256-QAM)
802.11n/ac Packet Aggregation: A-MPDU, A-SPDU |
| Supported Modulation | 802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
Management Features |
| Multiple BSSID | support 8 SSIDs on both 2.4GHz and 5GHz |
| VLAN Tagging | Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN |
| Spanning Tree | Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) | Complaint With IEEE 802.11e Standard
WMM |
| SNMP | v1, v2c, v3 |
| MIB | I/II, Private MIB |
| Wireless Security | WPA2-PSK
WPA2-Enterprise
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation |
Environmental & Physical |
| Temperature Range | Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-30 ºC~80 ºC) |
| Humidity (non-condensing) | Operating: 90% or less
Storage: 90% or less |
Dimensions & Weight |

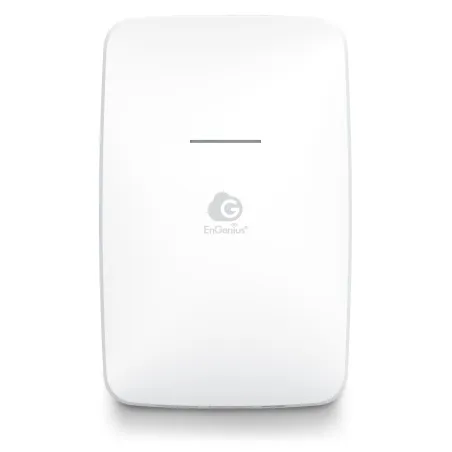

| ECW115 Device | Weight: .80 lbs. (.363 Kg)
5.5” 140(W) x 3.5” 90(L) x 1.6” 40(H) mm |
| Packaging | Weight: .86 lbs. (.390 Kg)
Length: 5.75” (146 mm)
Width: 4.85” (123.2 mm) |
| Package Contents | 1 - ECW115 Cloud Managed Indoor Access Point
1 - Ceiling and Wall Mount Screw Kits
2 - Junction-plates (tall/short)
1 - Quick Installation Guide |
| Certifications | FCC
CE |
| Warranty | 2 ปี |
