Technical Specifications
|
|
Standards
|
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
vBackward compatible with 802.11b/g/n/ac
|
|
Processor
|
Qualcomm? Quad-Core CPU ARM Cortex A53s @ 1.0GHz
|
|
Antenna
|
2?2, Integrated Omni-directional antennas (3 dBi gain @ 2.4 GHz, 3 dBi gain @ 5 GHz)
|
|
Physical Interface
|
1 x 10/100/1000 BASE-T, RJ-45 Gigabit Ethernet Port
1x DC Jack
1 x Reset Button
|
|
LED Indicators
|
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
|
|
Power Source Power-over-Ethernet-802.3af Input
|
Power-over-Ethernet: 802.3af Input
IEEE 802.11e Compliant Source
12VDC /1.5A Power Adapter (Not Include) |
|
Maximum Power Consumption
|
12.8W
|
|
Surge Protection
|
-
|
Wireless & Radio Specifications
|
|
Operating Frequency
|
Dual-Radio Concurrent 2.4 GHz & 5 GHz
|
|
Operation Modes
|
Managed mode: AP, Mesh
Stand alone: AP, Mesh,
|
|
Frequency Radio
|
Frequency Radio 2.4 GHz: 2400 MHz ~ 2835 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
|
|
Transmit Power
|
Up to 15 dBm on 2.4 GHz
Up to 15 dBm on 5 GHz
|
| |
Radio Chains/Spatial Stream 2?2
|
|
|
Tx Beamforming (TxBF)
|
|
SU-MIMO
|
Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SU-MIMO for 5GHz up to 1,774Mbps wireless data rate to a single 11aX wireless client device under the both 2.4G Hz and 5GHz radio.
|
|
MU-MIMO
|
Two (2) spatial streams Multiple (MU)-MIMO for up to 1,200 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Two (2) Multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one(1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
|
|
Supported Data Rates (Mbps):
|
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1,200 (MCS0 to MSC11, NSS = 1 to 2)
|
|
Supported Radio Technologies
|
802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
|
|
Channelization
|
802.11ax supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
|
|
Supported Modulation
|
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
|
Management Features
|
|
Multiple BSSID
|
support 8 SSIDs on both 2.4GHz and 5GHz
|
|
VLAN Tagging
|
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
|
|
Spanning Tree
|
Supports 802.1d Spanning Tree Protocol
|
| QoS (Quality of Service) |
Complaint With IEEE 802.11e Standard
WMM
|
|
SNMP
|
v1, v2c, v3
|
|
MIB
|
I/II, Private MIB
|
|
Wireless Security
|
WPA3
WPA2 Enterprise (AES)
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
|
Environmental & Physical
|
|
Temperature Range
|
Operating: 32?F~104?F (0 ?C~40 ?C)
Storage: -22 ?F~176 ?F (-30 ?C~80 ?C)
|
|
Humidity (non-condensing)
|
Operating: 90% or less
Storage: 90% or less
|
Dimensions & Weight
|
|
ECW220 Device
|
Weight: 380g
Length: 6.30 (160 mm)
Width: 6.30 (160 mm)
Height: 1.31 (33.2 mm)
|
| Packaging |
Weight: TBD
Length: 8.07 (205 mm)
Width: 8.07 (205 mm)
Height: 3.27 (83 mm)
|
|
Package Contents
|

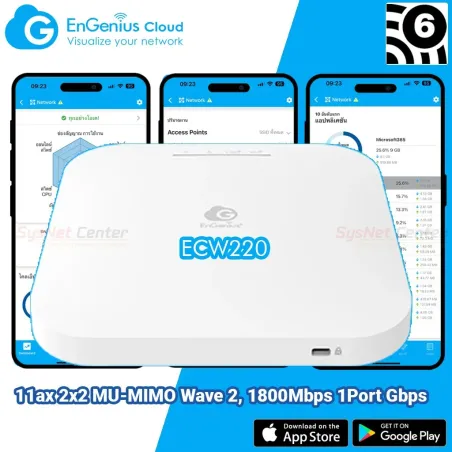

1 – ECW220 Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” T-Rail)
1 – Ceiling Mount Base (15/16” T-Rail)
1 – Mounting Kit
1 – Quick Installation Guide
|
|
Certifications
|
FCC
CE
|
|
Warranty
|
3 ปี
|
