Technical Specifications
|
|
Standards
|
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
vBackward compatible with 802.11b/g/n/ac |
|
Processor
|
Qualcomm® Quad-Core ARM Cortex A53s @ 2.0GHz CPU
|
|
Antenna
|
4 x 2.4 GHz: 3 dBi
4 x 5 GHz: 3 dBi
Integrated Omni-Directional Antenna |
|
Physical Interface
|
1 x 10/100/1000/2500 N-BASE-T, RJ-45 Ethernet Port
1x DC Jack
1 x Reset Button |
|

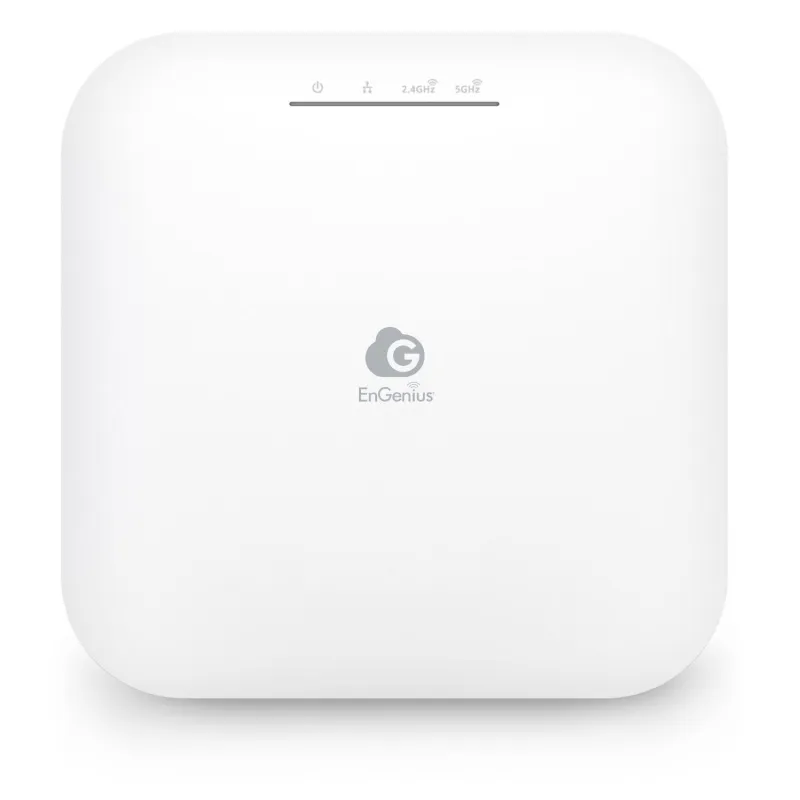

LED Indicators
|
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
|
|
Power Sourcev Power-over-Ethernet-802.3af Input
|
Power-over-Ethernet: 802.3at Input
12VDC /2A |
|
Maximum Power Consumption
|
19.5W
|
|
Surge Protection
|
-
|
Wireless & Radio Specifications
|
|
Operating Frequency
|
Dual-Radio Concurrent 2.4 GHz & 5 GHz
|
|
Operation Modes
|
AP, Mesh
|
|
Frequency Radio
|
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz |
|
Transmit Power
|
Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
(Maximum power is limited by regulatory domain) |
|
Radio Chains/Spatial Stream
|
4x4:4
|
|
|
Tx Beamforming (TxBF)
|
|
SU-MIMO
|
Four (4) spatial stream SU-MIMO for 2.4GHz and four spatial stream SU-MIMO for 5GHz up to 3,548 Mbps wireless data rate to a single wireless client device under the both 2.4 GHz and 5GHz radio.
|
|
MU-MIMO
|
Four (4) spatial streams Multiple (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Two (2) Multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one(1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
|
|
Four (4) Multiple (MU)-MIMO for up to 1,148 Mbps
|
wireless data rate to transmit to two streams MUMIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
|
|
Supported Data Rates (Mbps):
|
802.11ax:
2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 Mbps (MCS0 to MCS31)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4) |
|
Supported RadioTechnologies
|
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) |
|
Channelization
|
802.11ax supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
|
Supported Modulation
|
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK |
Management Features
|
|
Multiple BSSID
|
support 8 SSIDs on both 2.4GHz and 5GHz
|
|
VLAN Tagging
|
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
|
|
Spanning Tree
|
Supports 802.1d Spanning Tree Protocol
|
| QoS (Quality of Service) |
Complaint With IEEE 802.11e Standard
WMM
|
|
SNMP
|
v1, v2c, v3
|
|
MIB
|
I/II, Private MIB
|
|
Wireless Security
|
WPA3
WPA2 Enterprise (AES)
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation |
Environmental & Physical
|
|
Temperature Range
|
Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC) |
|
Humidity (non-condensing)
|
Operating: 90% or less
Storage: 90% or less |
Dimensions & Weight
|
|
ECW230 Device
|
Weight: 1.31 lbs. (597 g)
Length: 8.27" (210 mm)
Width: 8.27" (210 mm)
Height: 1.31" (33.2 mm) |
| Packaging |
Weight: 1.96 lbs. (891 g)
Length: 9.65" (245 mm)
Width: 9.65" (245 mm)
Height: 3.35" (85 mm) |
|
Package Contents
|

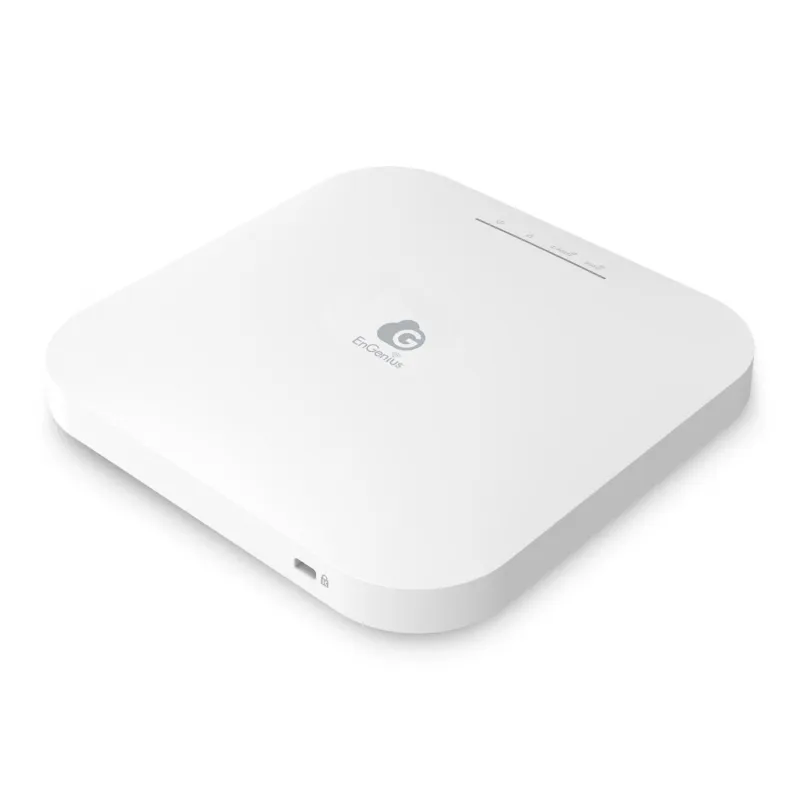

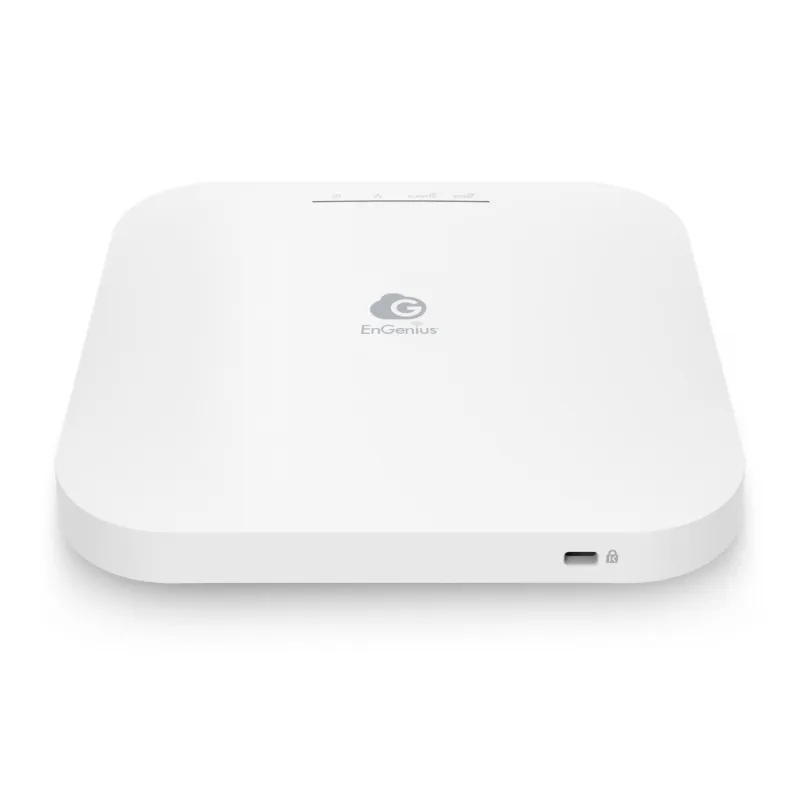

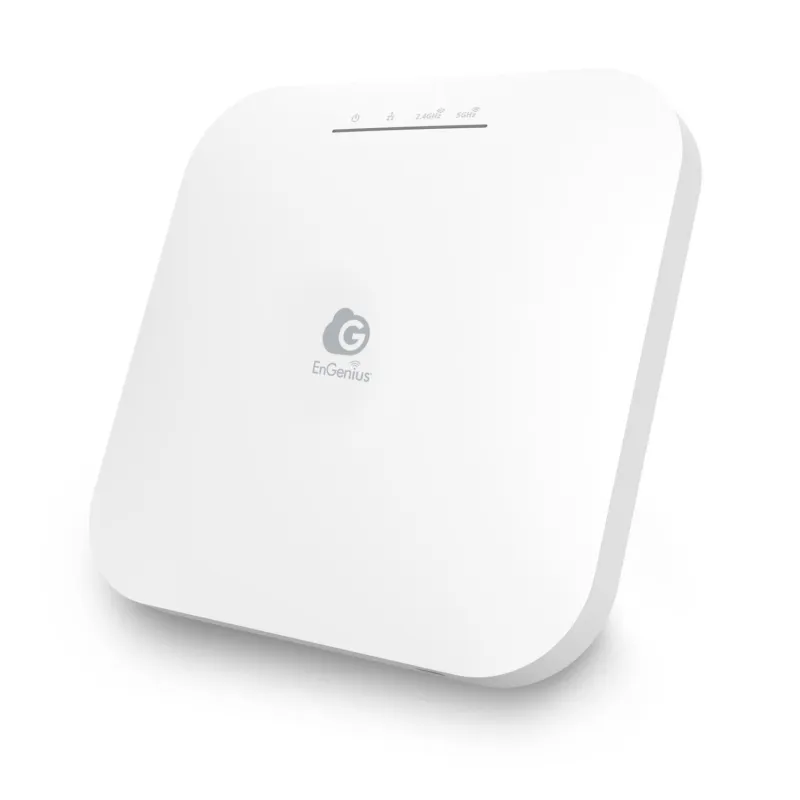

1 - ECW230 Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 - Ceiling and Wall Mount Screw Kits
1 - Quick Installation Guide |
|
Certifications
|
FCC
CE
|
|
Warranty
|
2 ปี
|
