ECW526 Product Specification |
Overview | EnGenius ECW526 Cloud Managed Wi-Fi 7 2x2x2 Indoor Wireless Access Point Tri-Band 2.4/5/6GHz ความเร็วสูงสุด 5.8Gbps, Port Lan 10Gbps รองรับ WIFI-Mesh, รองรับการ Managed ผ่าน Engenius Cloud |
Technical Specifications |
| Standards | IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
Backward compatible with 802.11a/b/g/n/ac/ax |
| Antenna | 2 x 2.4 GHz: 5 dBi(Integrated Omni-Directional)
2 x 5 GHz: 6 dBi(Integrated Omni-Directional)
2 x 6 GHz: 6 dBi(Integrated Omni-Directional) |

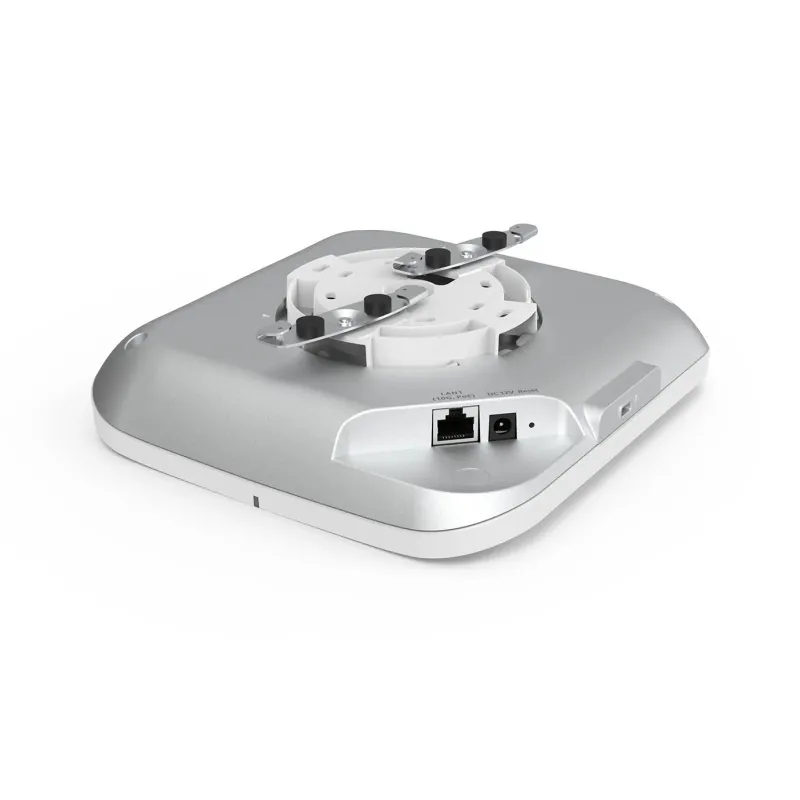

| Physical Interface | 1 x 10GE Port (PoE+)
1 x DC Jack
1 x Reset Button |
| LED Indicators | 1 x Multi-color LED |
| Power Source | Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter |
| Maximum Power Consumption | 21W |
Wireless & Radio Specifications |
| Operating Frequency | Tri-Radio Concurrent 2.4 GHz & 5 GHz & 6GHz |
| Operation Modes | Managed mode: AP, AP Mesh, Mesh |
| Frequency Radio | 2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6GHz: 5925-7125MHz |
| Transmit Power | Up to 23 dBm on 2.4 GHz
Up to 22 dBm on 5 GHz
Up to 22 dBm on 6 GHz
(Maximum power is limited by regulatory domain) |
| Radio Chains | 2 x 2:2 |
| SU-MIMO Capability | Two(2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with VHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two(2) spatial stream Single User (SU) MIMO for up to 2,900 Mbps wireless data rate with HE160 to a 2×2 wireless device under the 5GHz radio.
Two(2) spatial stream Single User (SU) MIMO for up to 5,800 Mbps wireless data rate with EHT320 to a 2×2 wireless device under the 6GHz radio. |
| MU-MIMO Capability | Two(2) spatial stream MU-MIMO for up to 700 Mbps wireless data rate with VHT40 bandwidth to a 2×2 wireless device under the 2.4GHz radio.
Two(2) spatial stream MU-MIMO for up to 2,900 Mbps wireless data rate with HE160 to a 2×2 wireless device under the 5GHz radio simultaneously.
Two(2) spatial stream MU-MIMO for up to 5,800 Mbps wireless data rate with EHT320 to a 2×2 wireless device under the 6GHz radio simultaneously. |
| Supported Data Rates | 802.11be:
2.4 GHz: Max 700 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: Max 2,900 (MCS0 to MCS11, NSS = 1 to 4)
6 GHZ: Max 5,800 (MCS0 to MCS13, NSS = 1 to 4) 802.11ax:
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MCS11, NSS = 1 to 4)
6 GHZ: 18 to 4,800 (MCS0 to MCS13, NSS = 1 to 4) 802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4) |
| Supported Radio Technologies | 802.11be/ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS) |
| Channelization | 802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160/320 MHz
802.11ax supports high efficiency throughput (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
| Supported Modulation | 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK |
Management Features |
| Multiple BSSID | 8 SSIDs on both 2.4GHz, 5GHz and 6GHz bands |
| VLAN Tagging | Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN |
| Spanning Tree | Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) | Complaint With IEEE 802.11e Standard
WMM |
| SNMP | v1, v2c, v3 |
| MIB | I/II, Private MIB |
| Fast Roaming | 802.11r/k |
| Wireless Security | WPA2-PSK
WPA2-Enterprise
WPA3-PSK WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation |
Environmental & Physical |
| Temperature Range | Operating: 32ºF~104ºF (0 ºC~40 ºC) Storage: -40 ºF~176 ºF (-40 ºC~80 ºC) |
| Humidity (non-condensing) | Operating: 90% or less
Storage: 90% or less |
| Compliance Regulatory | FCC
CE
IC
UKCA |
Warranty | 2 ปี |
