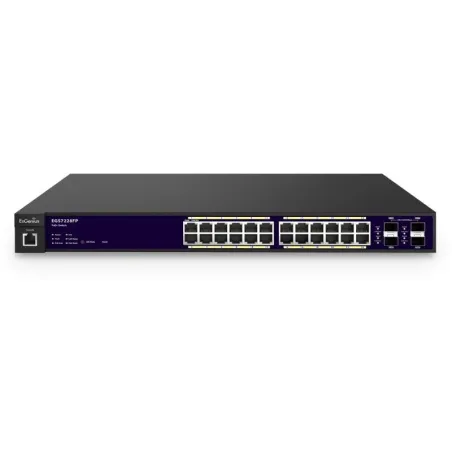

Engenius EGS7228FP L2-Manage POE Gigabit Switch 24 Port จ่ายไฟ POE 802.3af/at 370W, 4xSFP รองรับ VLAN, QOS

Product Specification

รองรับการ Config ผ่าน Webbrowser

Standard

SDRAM: 128MB
Flash Memory: 16MB

Interface

24 10/100/1000Mbps Ports in the front panel
4 100/1000Mbps SFP Slot
1 RJ45 Console Port

Standard Switching Capacity

56 Gbps

PoE Capability

PoE standard: Port 1~24 Support IEEE 802.3at/af
PoE Capable Ports: Port 1~24 can output up to 30W
Power budget: 370Watts

Layer 2 Switching

802.3ad compatible Link Aggregation
Port Mirroring
Port Trunking
Spanning Tree Protocol
802.1D Spanning Tree (STP)
802.1w Rapid Spanning Tree (RSTP)
802.1s Multiple Spanning Tree (MSTP)
IGMP Snooping v1/v2/v3
IGMP Fast Leave
VLAN Group
Voice VLAN
MLD Snooping
Queue
CoS based on 802.1p priority
CoS based on physical port
CoS based on TOS
CoS based on DSCP
802.1X Port-based Access Control
802.1X Guest VLAN
Port security
Storm control
Port Isolation
Attack Prevention
Access Control List (ACL)
PoE management
Power on/off per port
Power class configuration
Power feeding with priority
User defined power limit
Telnet Server
TFTP Client
BootP/DHCP Client
Web-based support
SNMP v1 support
SNMP v2c support
SNMP v3 support
TFTP upgrade
Command Line Interface (CLI)
SNTP
RMONv1
SYSLOG
Cable Diagnastic
MIB Support
RFC1213
RFC1493
RFC1757
RFC2674

POE

รองรับ POE มาตรฐาน 802.3af/at 24Port 30 Watt ต่อ Port

W x H x D

440 x 310 x 44mm

Height

-

Power

-

ประกัน

3 ปี
