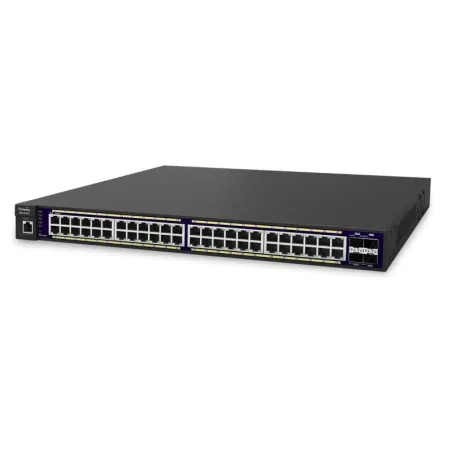

Engenius EGS7252FP
อุปกรณ์ Switch L2-Manage POE Gigabit Switch ขนาด 48Port แบบ Rackmount , ความเร็วสูง 10/100/1000 Mbps , 2 Port Gigbit Uplink, 2 Port SFP รองรับ VLANs, QOS, ควบคุมการทำงานผ่าน Browser รองรับจ่ายไฟ POE มาตรฐาน 802.3af/at จ่ายไฟสูงสุด 740W
|
Product Specification
|
|
Overview
|
|
| |
รองรับการ Config ผ่าน Webbrowser
|
|
Standard
|
SDRAM: 256MB
Flash Memory: 32MB
|
|
Interface
|
48: 10/100/1000Mbps Ports in the front panel
4 100/1000Mbps SFP Slot
1 RJ45 Console Port
|
|
Standard Switching Capacity
|
104 Gbps
|
|
PoE Capability
|
PoE standard: Port 1~48 Support IEEE 802.3at/af
PoE Capable Ports: Port 1~48 can output up to 30W
Power budget: 740watts
|
|
Layer 2 Switching
|
802.3ad compatible Link Aggregation
Port Mirroring
Port Trunking
Spanning Tree Protocol
802.1D Spanning Tree (STP)
802.1w Rapid Spanning Tree (RSTP)
802.1s Multiple Spanning Tree (MSTP)
IGMP Snooping v1/v2/v3
IGMP Fast Leave
VLAN Group
Voice VLAN
MLD Snooping
Queue
CoS based on 802.1p priority
CoS based on physical port
CoS based on TOS
CoS based on DSCP
802.1X Port-based Access Control
802.1X Guest VLAN
Port security
Storm control
Port Isolation
Attack Prevention
Access Control List (ACL)
PoE management
Power on/off per port
Power class configuration
Power feeding with priority
User defined power limit
Telnet Server
TFTP Client
BootP/DHCP Client
Web-based support
SNMP v1 support
SNMP v2c support
SNMP v3 support
TFTP upgrade
Command Line Interface (CLI)
SNTP
RMONv1
SYSLOG
Cable Diagnastic
MIB Support
RFC1213
RFC1493
RFC1757
RFC2674
|
|
POE
|
รองรับ POE มาตรฐาน 802.3af/at 48Port 30Watt ต่อ Port
|
|
W x H x D
|
440 x 410x 44mm
|
|
Height
|
-
|
|
Power
|
-
|
|
ประกัน
|
3 ปี
|
| |
