Product Specification
|
Technical Specifications
|
|
Standards
|
IEEE 802.11b/g/n on 2.4GHz
IEEE802.11a/n/ac on 5GHz
|
|
Antenna
|
Four (4) External 5 dBi Dual-Concurrent Omni-Directional Antenna
หัวต่อแบบ SMA-Type
|
|
Physical Interface
|
1 x 10/100/1000 Gigabit Ethernet Ports
1 x Reset Button
|
|
LED Indicators
|
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
|
|
Power Source
|
Power-over-Ethernet: Proprietary 24V PoE
IEEE 802.11e Compliant Source
Active Ethernet (PoE)
|
|
Maximum Power Consumption
|
12.6W
|
|
Surge Protection
|
1KV
|
Wireless & Radio Specifications
|
|
Operating Frequency
|
Dual-Radio Concurrent 2.4GHz & 5 GHz
|
|
Operation Modes
|
Access Point Mode (AP Mode)
Client Bridge Mode (CB Mode)
WDS: AP Mode and Bridge Mode (Mesh Mode Coming Soon)
|
|
Frequency Radio
|
2.4GHz: 2400 MHz ~ 2835 MHz
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz
|
|
Transmit Power
|
2.4 GHz: 20 dBm
5 GHz: 23 dBm
|
|
|
Tx Beamforming (TxBF)
|
|
Radio Chains/Spatial Stream
|
2x2:2
|
|
SU-MIMO
|
Two (2) Spatial Stream SU-MIMO up to 1267 Mbps to a single client
|
|
MU-MIMO
|
Two (2) Spatial Stream MU-MIMO up to 1267 Mbps to two (2) MU-MIMO capable wireless devices simultaneously
|
|
Supported Data Rates (Mbps)
|
2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
|
|
Supported Radio Technologies
|
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 2 Streams
|
|
Channelization
|
802.11ac supports very high throughput (VHT)—VHT 20/40/80 MHz
802.11n supports high throughput (HT)—HT 20/40 MHz
802.11n supports very high throughput (VHT) under the 2.4 GHz radio—VHT (256-QAM)
802.11n/ac packet aggregation: AMPDU, ASPDU
|
|
Supported Modulation
|
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
|
Management
|
|
Multiple BSSID
|
Supports 16 SSIDs (8 SSIDs per band)
|
|
VLAN Tagging
|
Supports 802.1q SSID-to-VLAN Tagging
Cross-band VLAN Pass Through
Management VLAN
|
|
QoS (Quality of Service)
|
Complaint with IEEE 802.11e Standard
|
|
Band Steering
|
RSSI Threshold
Traffic Shaping
Save Configuration as Default
Auto Transmit Power
Auto Channel Selection
Site Survey
PMK Caching
|
|
Control Features
|
Distance Control (ACK Timeout)
Multicast Supported
Fast Roaming
Email Alerts
Wi-Fi Scheduler
Client Traffic Status
Guest Network
RADIUS Accounting
Power Save Mode (U-APSD Support)
CLI Support
|
|
SNMP
|
v1, v2c, v3
|
|
MIB
|
I/II, Private MIB
|
|
Wireless Security
|
WEP Encryption 64/128/152 bit
WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)
Hide SSID in Beacons
MAC Address Filtering, Up to 64 MACs per SSID
Wireless STA (Client) Connected List
Https
SSH
Client Isolation
|
Environmental & Physical
|
|
Temperature Range
|
Operating: -4?~140?F/-20?C~60?C
Storage: -22F?~176?F/-40?C~80?C
|
|
Humidity (non-condensing)
|
Operating: 90% or less
Storage: 90% or less
|
|
Waterproof & Dustproof
|

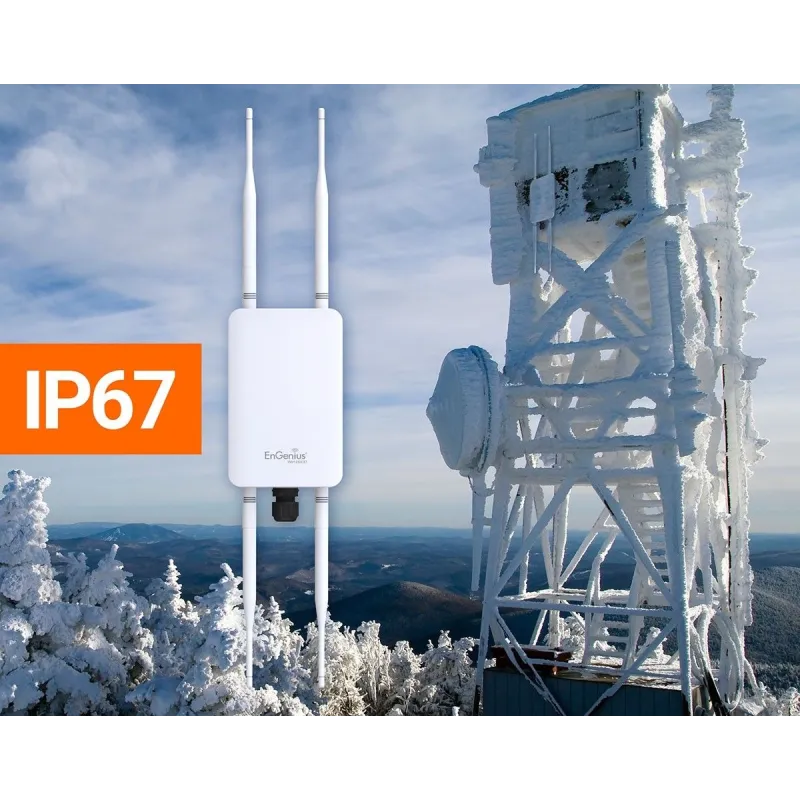

IP67-Rated Enclosure
|
Device Dimensions & Weights
|
|
ENH1350EXT Device
|
Width: 4.37” (111.2 mm)
Length: 6.83” (173.6 mm)
Height” 1.19” (30.29 mm)
|
|
Package Contents
|
1 - ENH1350EXT Dual-Band AC1300 Outdoor Access Point
1 - Power Adapter (54V/0.6A)
1 - PoE Adapter (EPA5006GR)
2 - Pole-Mounting Brackets
1 - Wall-Mount Screw Set
2 - 2.4GHz 5dBi SMA Antennas
2 - 5GHz 5dBi SMA Antennas
1 - Quick Installation Guide
|
|
Certifications
|
FCC
CE
|
|
Warranty
|
3 ปี
|
