Product Specification
|
|
Standards
|
IEEE802.11a/n/ac on 5 GHz
|
|
Processor
|
Qualcomm? 717 MHz Quad-Core CPU
4x ARM Cortex A7
|
|
Memory Capacity
|
Memory: 256 MB
Flash Memory 32 MB
|
|

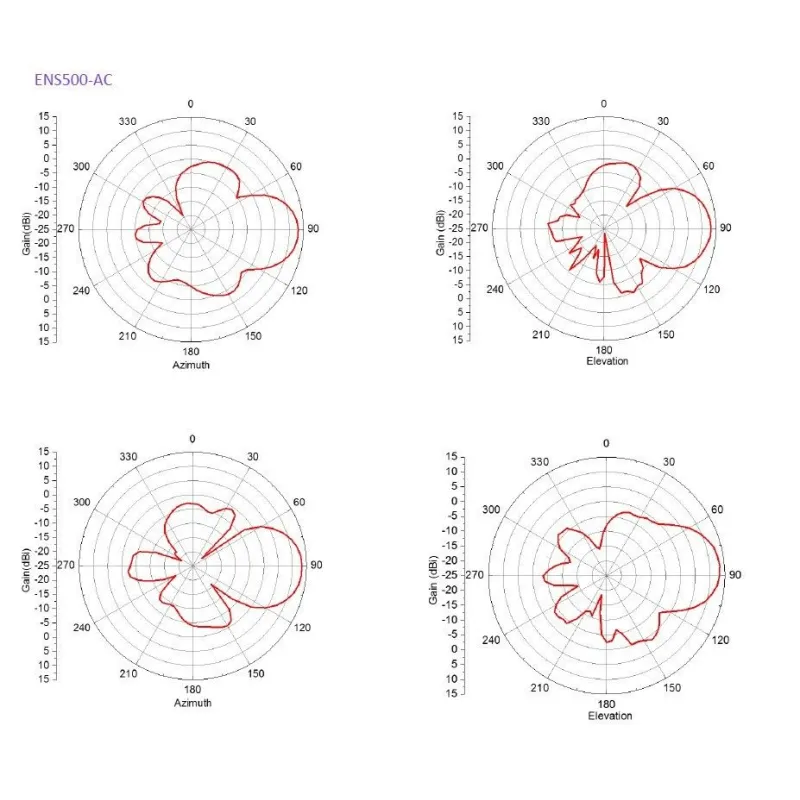

Antenna
|
เสาอากาศ 2ต้น กระจายสัญญาณมีทิศทาง ประมาณ 60 องศา Gain ขยาย 14dBi
|
|

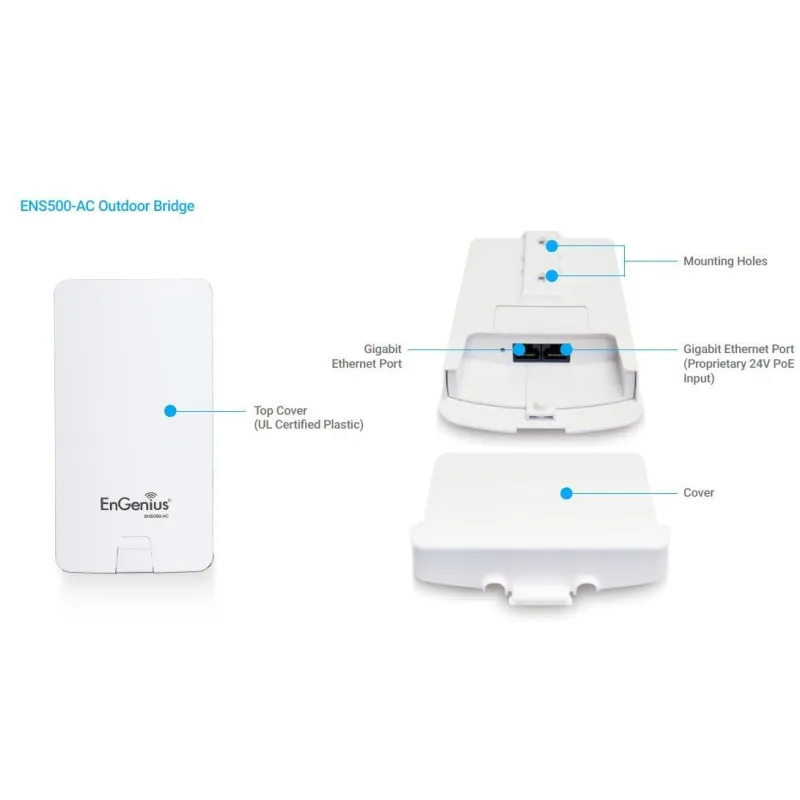

Physical Interface
|
2 x 10/100/1000 Gigabit Ethernet Ports
- LAN1: Supports 802.3at PoE Input
- LAN2: Data Pass Through
1 x Reset Button
|
|
LED Indicators
|
1 x Power
WLAN (Wireless Connection) 5 GHz
2 x LAN
|
|
Power Source
|
PoE Injector (EPA2410GP)
INPUT: 100-240VAC, 0.7A, 50-60Hz
OUTPUT: 24V, 1A
|
|
Power Consumption
|
7.5W
|
|
Mounting
|
Wall Mount
Pole Mount
|
|
Surge Protection
|
Line to Line: 1 KV
Line to Ground: 2 KV
|
|
ESD Protection
|
Contact: 4KV
Air: 8 KV
|
|
Ingress Protection Marking
|
IP55-Rated Waterproof/Dustproof Enclosure
|
|
Wireless & Radio Specifications
|
|
Operating Frequency
|
5GHz
|
|
Operation Modes
|
Access Point Mode (AP mode)
Client Bridge Mode (CB Mode)
WDS: WDS AP, WDS Bridge, WDS Station
|
|
Frequency Radio
|
5 GHz: 5150 MHz~5250 MHz, 5250 MHz~5350 MHz, 5470 MHz~5725 MHz, 5725 MHz~5850 MHz
|
|
Transmit Power
|
Up to 23 dBi
|
|
Radio Chains/Spatial Streams
|
11AC Wave2 2x2:2
|
|
Tx Beamforming (TxBF)
|
Yes
|
|
SU-MIMO
|
Two (2) Spatial Stream SU-MIMO up to 867 Mbps to a single client
|
|
MU-MIMO
|
Two (2) Spatial Streams MU-MIMO up to 867 Mbps to two (2) 1x1 wireless devices simultaneously
|
|
Supported Data Rates (Mbps)
|
5 GHz: Max 867
802.11a: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
|
|
Supported Radio Technology
|
802.11a/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO With 2 Streams
|
|
Channelization
|
802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11n/ac Packet Aggregation: AMPDU, ASPDU
|
|
Supported Modulation
|
802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
|
|
Management
|
|
Multiple BSSID
|
Supports 8 SSIDs
|
|
VLAN Tagging
|
VLAN Pass-Through
|
|
Spanning Tree
|
Yes
|
|
QoS
|
Compliant with IEEE 802.11e Standard
WMM
|
|
SNMP
|
v1, v2c, v3
|
|
MIB
|
I/II, Private MIB
|
|
Wireless Features
|
|
AP Radio Settings
|
Band Steering
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
RSSI Threshold
AP Client Limiting
VLANs for AP - Multiple SSIDs
Secured Guest Network
Email Alert
Wi-Fi Scheduler
Traffic Shaping
Client Traffic Status
PMK Caching
Distance Control (ACK Timeout)
Power Save Mode (U-APSD Support)
|
|
Management Features
|
|
Deployment Options
|
Standalone (Individually Managed)
|
|
Configuration
|
Web Interface (HTTP)
CLI (Telnet)
|
|
Control Features
|
Auto Reboot
Firmware Upgrade
|
|
Security
|
WPA/WPA2 Enterprise
Hide SSID in beacons
MAC Address Filtering
RADIUS Accounting (802.1x)
Https Support
SSH Support
Client Isolation
L2 Isolation
|
|
Environmental & Physical
|
|
Temperature Range
|
Operating: -4?F to 140?F, -20?C to 60?C
Storage: -22?F to 176?F, -30?C to 80 ?C
|
|
Humidity (Non-condensing)
|
Operating: 90% or less
Storage: 90% or less
|
|
Device Dimensions & Weights
|
|
ENS500EXT-AC
|
Weight: 0.65 lbs. (0.29 kg)
Width: 3.93” (100 mm)
Length: 7.20” (185 mm)
Height” 1.08” (27 mm)
|
|
Package Contents
|
ENS500-AC Outdoor Access Point
PoE Adapter (EPA2406GP)
Pole-Mounting Brackets
Wall-Mount Screw Set
(2) 5 GHz 5 dBi SMA Antennas
Power Cord
Quick Installation Guide
|
|
Certifications
|
FCC
IC
|
|
Warranty
|
3 ปี
|
|
|
*** การปรับกำลังส่งของอุปกรณ์ ต้องเป็นไปตามที่กฏหมายกำหนดไว้
|
