Product Specification |
Standards | IEEE802.11a/n/ac on 5 GHz |
Processor | Qualcomm 717 MHz Quad-Core CPU
4x ARM Cortex A7 |
Memory Capacity | Memory: 256 MB
Flash Memory 32 MB |

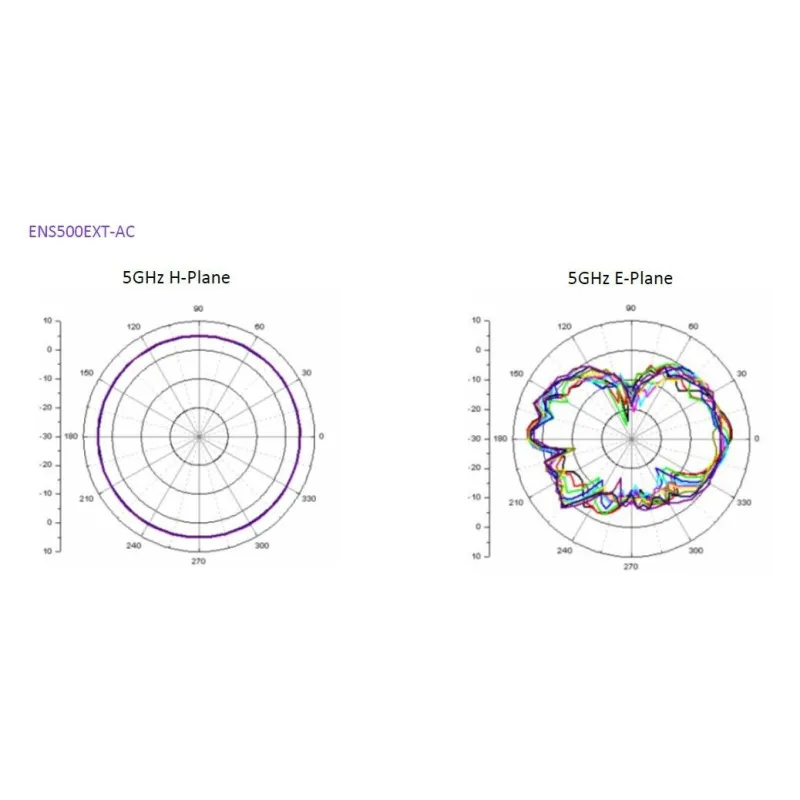

Antenna | เสาอากาศ 2ต้น กระจายสัญญาณรอบทิศทาง Gain ขยาย 5 dBi Dual-Concurrent Omni-Directional Antenna
หัวต่อแบบ SMA-Type ถอดเปลี่ยนเสาได้ |
Physical Interface | 2 x 10/100/1000 Gigabit Ethernet Ports
- LAN1: Supports 802.3at PoE Input
- LAN2: Data Pass Through
1 x Reset Button |
LED Indicators | 1 x Power
WLAN (Wireless Connection) 5 GHz
2 x LAN |
Power Source | PoE Injector (EPA2410GP)
INPUT: 100-240VAC, 0.7A, 50-60Hz
OUTPUT: 24V, 1A |
Power Consumption | 7.5W |
Mounting | Wall Mount
Pole Mount |
Surge Protection | Line to Line: 1 KV
Line to Ground: 2 KV |
ESD Protection | Contact: 4KV
Air: 8 KV |
Ingress Protection Marking | IP55-Rated Waterproof/Dustproof Enclosure |
Wireless & Radio Specifications |
Operating Frequency | 5GHz |
Operation Modes | Access Point Mode (AP mode)
Client Bridge Mode (CB Mode)
WDS: WDS AP, WDS Bridge, WDS Station |
Frequency Radio | 5 GHz: 5150 MHz~5250 MHz, 5250 MHz~5350 MHz, 5470 MHz~5725 MHz, 5725 MHz~5850 MHz |
Transmit Power | Up to 23 dBi |
Radio Chains/Spatial Streams | 11AC Wave2 2x2:2 |
Tx Beamforming (TxBF) | Yes |
SU-MIMO | Two (2) Spatial Stream SU-MIMO up to 867 Mbps to a single client |
MU-MIMO | Two (2) Spatial Streams MU-MIMO up to 867 Mbps to two (2) 1x1 wireless devices simultaneously |
Supported Data Rates (Mbps) | 5 GHz: Max 867
802.11a: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2) |
Supported Radio Technology | 802.11a/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO With 2 Streams |
Channelization | 802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11n/ac Packet Aggregation: AMPDU, ASPDU |
Supported Modulation | 802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
Management |
Multiple BSSID | Supports 8 SSIDs |
VLAN Tagging | VLAN Pass-Through |
Spanning Tree | Yes |
QoS | Compliant with IEEE 802.11e Standard
WMM |
SNMP | v1, v2c, v3 |
MIB | I/II, Private MIB |
Wireless Features |
AP Radio Settings | Band Steering
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
RSSI Threshold
AP Client Limiting
VLANs for AP - Multiple SSIDs
Secured Guest Network
Email Alert
Wi-Fi Scheduler
Traffic Shaping
Client Traffic Status
PMK Caching
Distance Control (ACK Timeout)
Power Save Mode (U-APSD Support) |
Management Features |
Deployment Options | Standalone (Individually Managed) |
Configuration | Web Interface (HTTP)
CLI (Telnet) |
Control Features | Auto Reboot
Firmware Upgrade |
Security | WPA/WPA2 Enterprise
Hide SSID in beacons
MAC Address Filtering
RADIUS Accounting (802.1x)
Https Support
SSH Support
Client Isolation
L2 Isolation |
Environmental & Physical |
Temperature Range | Operating: -4?F to 140?F, -20?C to 60?C
Storage: -22?F to 176?F, -30?C to 80 ?C |
Humidity (Non-condensing) | Operating: 90% or less
Storage: 90% or less |
Device Dimensions & Weights |
ENS500EXT-AC | Weight: 0.65 lbs. (0.29 kg)
Width: 3.93” (100 mm)
Length: 7.20” (185 mm)
Height” 1.08” (27 mm) |
Package Contents | ENS500EXT-AC Outdoor Access Point
PoE Adapter (EPA2406GP)
Pole-Mounting Brackets
Wall-Mount Screw Set
(2) 5 GHz 5 dBi SMA Antennas
Power Cord
Quick Installation Guide |
Certifications | FCC
IC |
Warranty | 3 ปี
|
| *** การปรับกำลังส่งของอุปกรณ์ ต้องเป็นไปตามที่กฏหมายกำหนดไว้ |
