Product Specification
|
|
|
ระยะทางสูงสุดได้ถึง 5กิโลเมตร (ในที่โล่ง ไม่มีสิ่งกีดขวาง)
|
|
Standard
|
IEEE 802.11a/n on 5 GHz
|
|
Memory Capacity
|
Memory: 256 MB
Flash Memory 16 MB
|
|
Antenna
|
Internal Directional Antennas
19 dBi on 5 GHz
|
|
Physical Interface
|

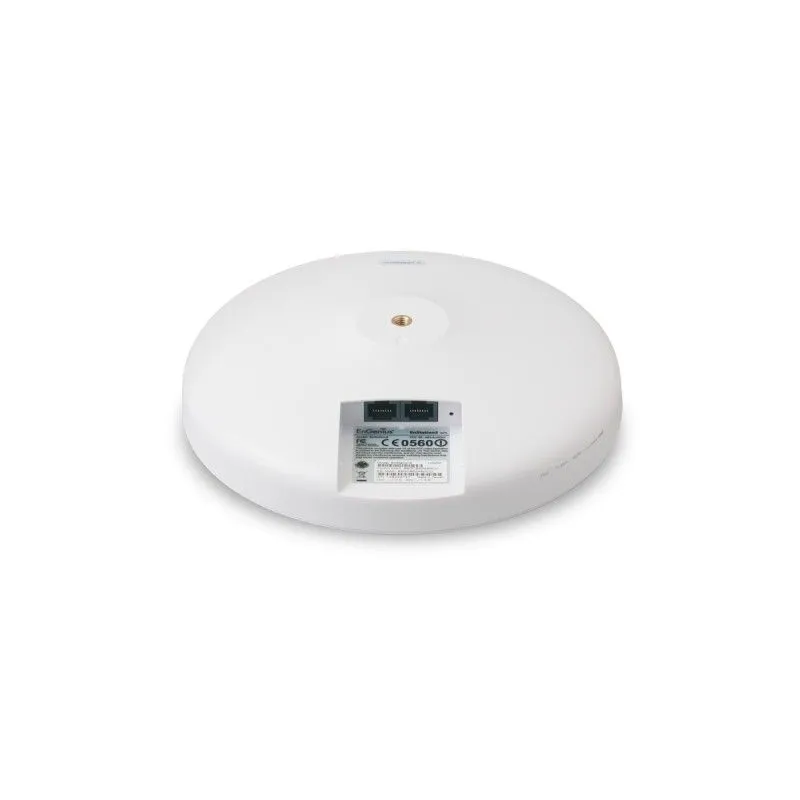

2 x 10/100/1000 Gigabit Ethernet Ports
– LAN1: Supports 802.3at PoE Input
– LAN2: Data & 802.3af PoE Pass-Through
1 x Reset Button
|
|
LED Indicators
|
1 x Power
WLAN (Wireless Connection)
5 GHz
2 x LAN
|
|
Power Source
|
PoE injector (EPA5006GP)
100V~240V AC, 50-60Hz
0.4A @ 120V AC
Surge Protection: 1KV
ESD Protection
Contact: 4KV
Air: 8 KV
|
|

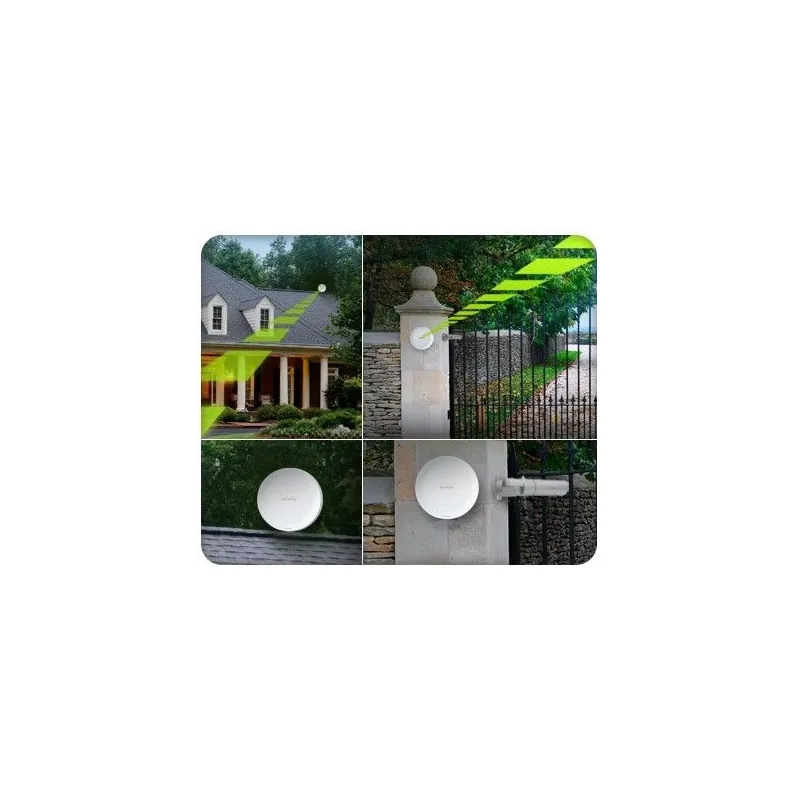

Mounting
|
Wall Mount
Pole Mount
|
|
Ingress Protection Marking
|
IP55-Rated Enclosure
|
|
Wireless & Radio Specifications
|
|
Operating Frequency
|
5GHz
|
|
Operation Modes
|
Access Point
Client Bridge
Client Router
WDS: AP, Bridge
|
|
Frequency Radio
|
5GHz:
5150MHz ~ 5240MHz, 5260 ~ 5320MHz, 5500MHz ~ 5700MHz, 5745MHz ~ 5925MHz
|
|
Transmit Power
|
Up to 26 dBm on 5 GHz
Max transmit power is limited by regulatory power
|
|
Radio Chains/Spatial Streams
|
2 x 2:2
|
|
Supported Data Rates (Mbps)
|
5 GHz: Max 867
802.11a: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS=1 ~2)
|
|
Supported Radio Technology
|
5 GHz: Max 867
802.11a: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS=1 ~2)
|
|
Supported Radio Technology
|
802.11a/n/ac: Orthogonal frequency-division Multiplexing (OFDM)
|
|
Channelization
|
802.11n with 20/40 MHz channel width
802.11a with 20 MHz channel width
802.11ac with 20/40/80 MHz channel width
|
|
Supported Modulation
|
802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
|
|
AP Radio Settings
|
AP Client Limiting
VLANs for AP – Multiple SSIDs
Wi-Fi Scheduler
Traffic Shaping
Client Traffic Status
RADIUS Accounting
Distance Control (Ack Timeout)
Multicast Supported
RSSI Threshold
Email Alert
|
|
Management Features
|
|
Multiple BSSID
|
Supports up to 4 SSIDs
|
|
VLAN Tagging
|
Supports 802.1q SSID-to-VLAN tagging
VLAN Pass through
|
|
Spanning Tree
|
Yes
|
|
QoS
|
Compliant with IEEE 802.11e Standard
WMM
|
|
SNMP
|
v1, v2c, v3
|
|
MIB
|
I/II, Private MIB
|
|
Environmental & Physical
|
|
Temperature Range
|
Operating: -4?F to 140?F, -20?C to 60?C
Storage: -22?F to 176?F, -30?C to 80 ?C
|
|
Humidity (Non-condensing)
|
Operating: 90% or less
Storage: 90% or less
|
|
Dimensions & Weight
|
|
EnStationAC Device
|
Weight: 1.11 lbs. (460 g)
Depth: 7.48” (190 mm)
Height: 1.50” (38 mm)
|
|
Package Contents
|
– EnStationAC Outdoor AP
– PoE Injector (EPA5006GP)
– Pole Mount Ring
– Mounting Screw Set
– Quick Installation Guide
|
|
Certifications
|
FCC
IC
|
|
Warranty
|
3 ปี
|
