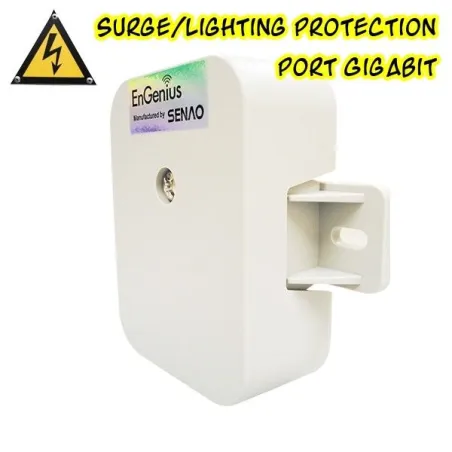

EnGenius ESA-7500G Surge/ Lightning Protector อุปกรณ์ปกป้องระบบเครือข่ายที่เกิดจากฟ้าผ่าผ่านสาย Lan

Product Specification

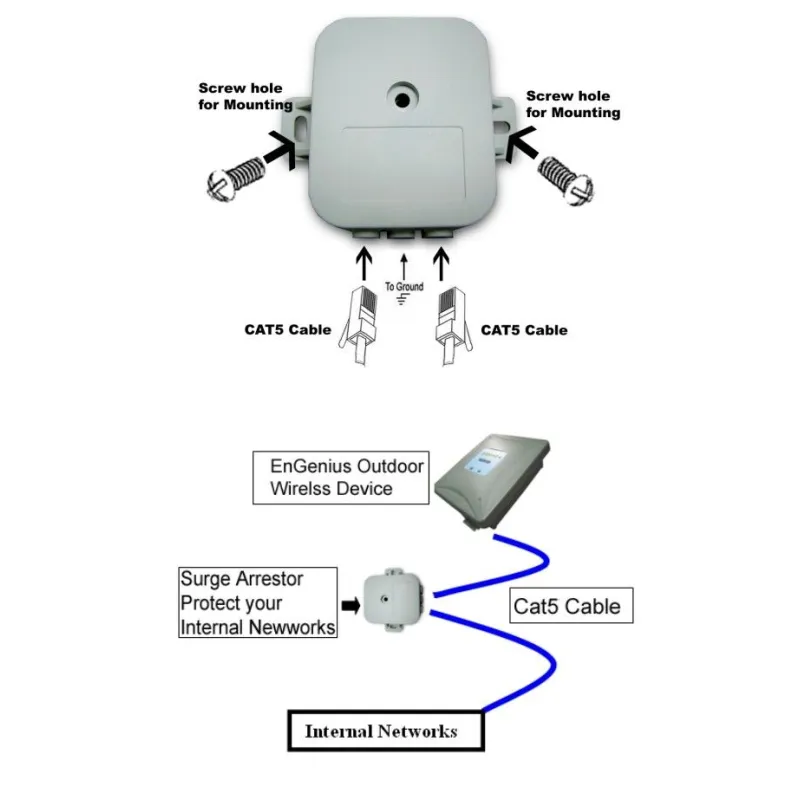

The Lightning Protector provides superior lightning and surge protection for both indoor and outdoor 10/100/1000 Base-T networks.

ESA-7500G meets with or exceeds category 5/6 performance for the two data pairs. Integral to the design is protection for the two Ethernet data pairs and the PoE DC power feed. This unit supports normal and reverse polarity PoE.

Ethernet Cable Support

10/100/1000 Base-T Category 5/6 protection

DC spark-over voltage

75V +-25%

Impulse spark-over voltage

at 100V/us <=500V
at 1kV/us <=600V

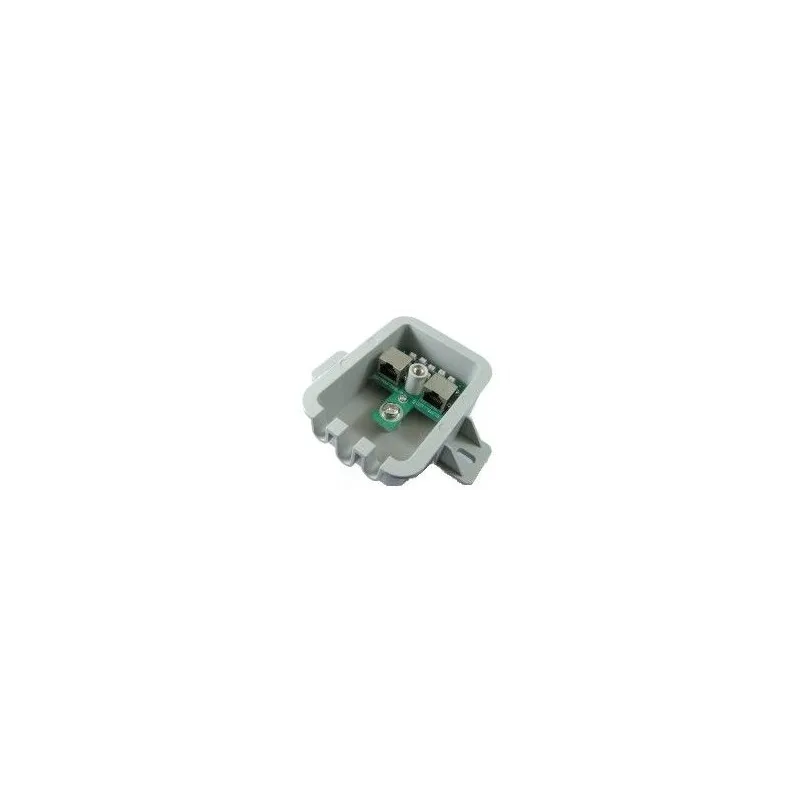

PCBA components

RJ-45 ; Surge absorber ES75XPA x 10
PCB: 2-layer FR-4 , 50x40x1.6mm
EARTH PARTS INCLUDE SCREW

Temperature

Operating: -20?C~ +70?C ; Storage: -30?C~ +80?C

Humidity

5% to 95%

Dimension

130 x 78 x 50mm

Reliability

25,000 hours

รับประกัน

1 ปี (Carry-in)
