    ESG510 EnGenius Cloud Managed VPN Router, 4 Port 2.5Gbps
    • ESG510 EnGenius Cloud Managed VPN Router, 4 Port 2.5Gbps
    • ESG510 EnGenius Cloud Managed VPN Router, 4 Port 2.5Gbps
    • ESG510 EnGenius Cloud Managed VPN Router, 4 Port 2.5Gbps
    • ESG510 EnGenius Cloud Managed VPN Router, 4 Port 2.5Gbps
    • ESG510 EnGenius Cloud Managed VPN Router, 4 Port 2.5Gbps
    • ESG510 EnGenius Cloud Managed VPN Router, 4 Port 2.5Gbps
    • ESG510 EnGenius Cloud Managed VPN Router, 4 Port 2.5Gbps
    • ESG510 EnGenius Cloud Managed VPN Router, 4 Port 2.5Gbps

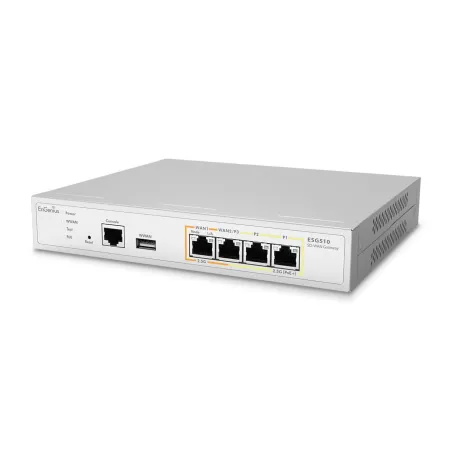

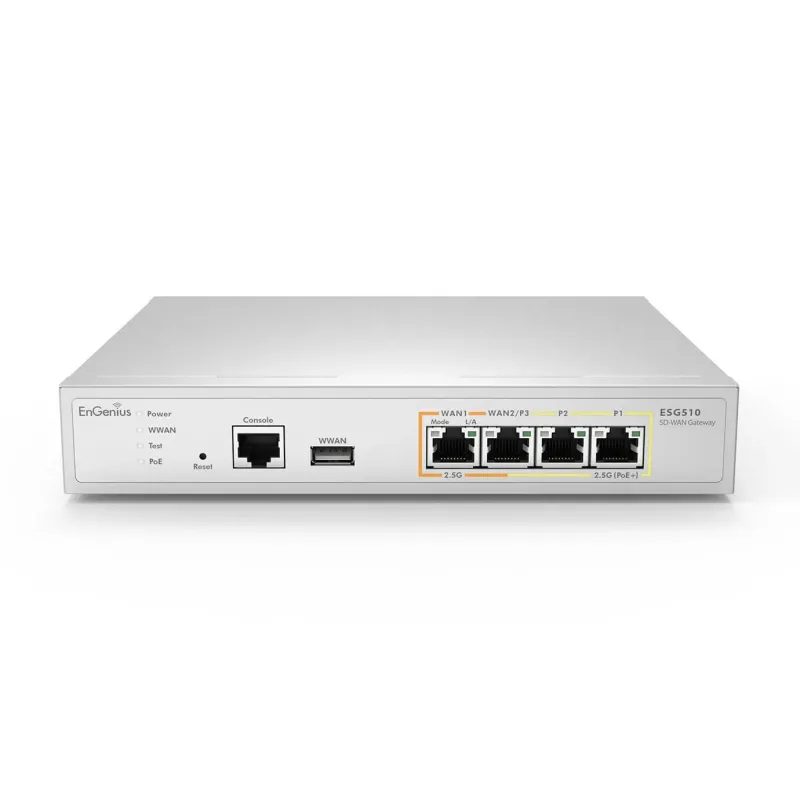

    ESG510 EnGenius Cloud Managed VPN Router, 4 Port 2.5Gbps

    EnGenius

    EnGenius ESG510 Cloud Managed VPN Router, 2 WAN Loadbalance, Mesh VPN Site Throughput 970Mbps, L7-Firewall, 4 Port 2.5Gbps

    ฿17,200.00
    ยังไม่ได้รวมภาษี
    จำนวน
    10 รายการ


    สอบถามข้อมูลสินค้าเพิ่มเติม

    LINE ID: @sysnet  โทร: 02 102 4284

    Click ต้องการใบเสนอราคา

    close

    แบบฟอร์มขอใบเสนอราคา



    Rating:
    (0)
    รายละเอียด

    Gateway ESG510 Datasheet
    EnGenius VPN Router Datasheet

    EnGenius Cloud Management Datasheet

    EnGenius Cloud Solution Brochure

    EnGenius Cloud User Manual



    Engenius EGS510 Product Highlight

    • Simple, unified cloud management for any size business
    • Intuitive and centralized device visibility from anywhere
    • Dual 2.5GE WAN and Dual 2.5GE LAN for maximum performance
    • Quad-core 1.6 GHz processor for greater speed and power
    • Built-in load balancing and safeguards with dual-WAN and cellular failover
    • 2.5 GbE PoE+ to power up a Wi-Fi 6E AP, IP camera or IP phone
    • Stateful firewall with high-efficiency filtering and inspection to enhance security
    • High-speed and secure site-to-site VPN and client VPN
    • Quick self-healing VPN and VLAN setup for faster and easier deployments
    • Touchless system maintenance and automatic updates
    • Multiple passthrough and routing options
    • Captive portal with external radius capabilitiesIntuitive and centralized device visibility from anywhere



    ESG510 Product Specification

    Overview

    ESG510 EnGenius Cloud Managed VPN Router, 2 WAN Loadbalance, Mesh VPN Site Throughput 970Mbps, L7-Firewall, 4 Port 2.5Gbps


    รองรับเครือข่ายความเร็วสูง ที่สามารถบริหารจัดการได้ง่ายๆผ่าน EnGenius Cloud และ Cloud to Go Mobile Application รองรับการทำ 2.5Gbps Dual WAN Load-balancing และ 4G/5G Failover, Site to Multi-Site VPN แบบ Self-Healing Auto VPN, High Speed Stateful Firewall รองรับการทำ Hotspot Authentication ด้วย Internal/External Captive Portal/RADIUS และ เก็บ Log การใช้งาน Internet

    Hardware

    CPU Processor

    Quad Core

    Operating Frequency

    1.6 GHz

    Memory

    4GB

    Storage

    8GB

    RJ-45 Interface

    4 x 2.5G

    SFP interface-
    PoE Ports1
    PoE Standard

    802.3 af/at

    Mounting Method

    Wall mount

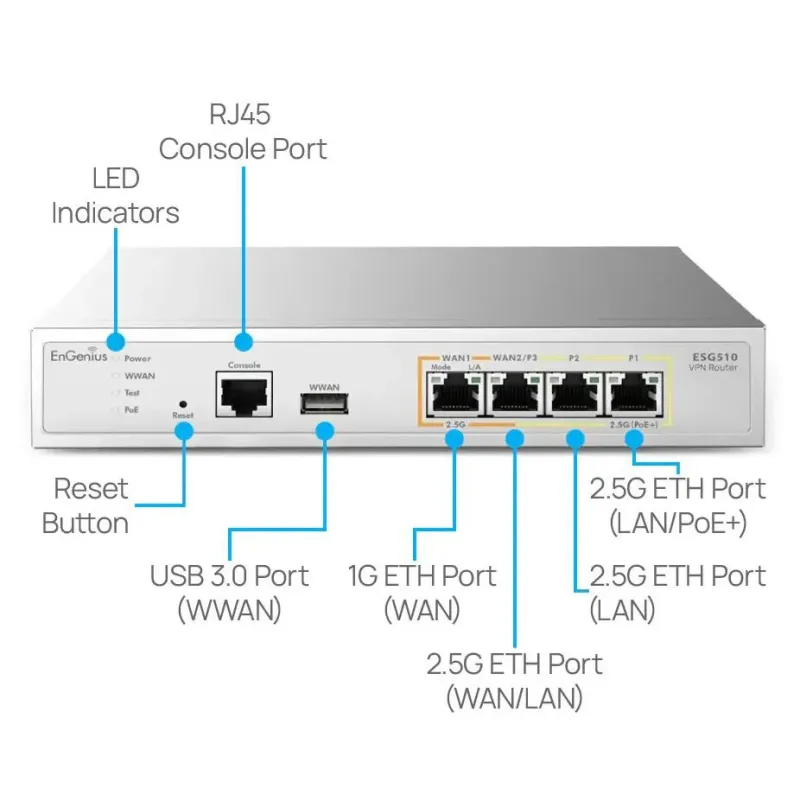

    I/O Interfaces

    1 x RJ-45 console/1 x USB 3.0

    Security

    TPM

    Network & Security

    Firewall (SPI throughput)

    4G

    VPN Throughput

    970M

    Max. Concurrent VPN Tunnels

    200

    Max. Concurrent VPN Users

    250

    Max. TCP Concurrent Sessions

    1,000,000

    Max VLAN

    96

    Firewall FeaturesStateful Packet Inspections
    Policy Ruless
    Port Forwardings
    1:1 NATs
    Allow Inbound Services
    Layer 7 Application Firewall
    Site-to-Site VPN

    Mesh VPN/Hub-and-Spoke

    Encryption

    3DES, AES (256/192/128-bit)

    Authentication

    MD5, SHA1, SHA2 (256-bit)

    Key Management

    IKEv1 (x-auth, mode-config)
    IKEv2 (EAP, configuration payload)

    VPN FeaturesSite-to-Site VPN
    Client VPN(IPsec/SecuPoint SSL)
    Policy-based VPN
    IPSec NAT traversal (NAT-T)
    Dead Peer Detection (DPD)
    Auto-VPN Connection
    Auto NAT traversal

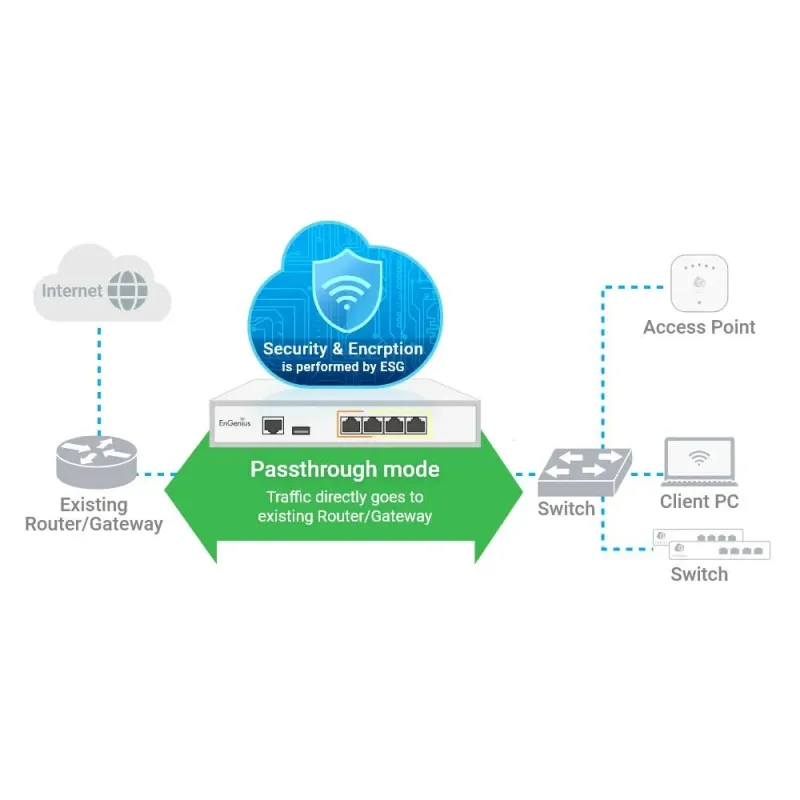

    Operation Mode

    Routed/Passthrough

    Multiple WANs

    Dual

    Bandwidth Limit

    Per client/Per Interface

    Traffic Load Balancing

    WAN load balancing with WRR

    Networking FeaturesStatic Route
    Multiple WANs
    USB Cellular
    User Authentication
    PPPoE
    VLAN Tagging
    Captive Portal
    Custom Splash Page
    Bandwidth Limit
    Traffic Load Balancing
    DHCP client/server/relay
    Dynamic DNS support
    Policy Based Routing

    Environment & Physical

    Power

    54V/1.2A

    Operation Temperature

    0°C to 40°C

    Humidity (non-condensing)

    5 to 95% non-condensing

    Dimensions & Weight

    Dimensions

    210 x 179.5 x 35 mm

    Weight

    0.97 kg

    Regulatory Compliance

    FCC Part 15 (Class B) IC CE EMC CB UL

    รับประกัน

    รับประกัน

    3 ปี

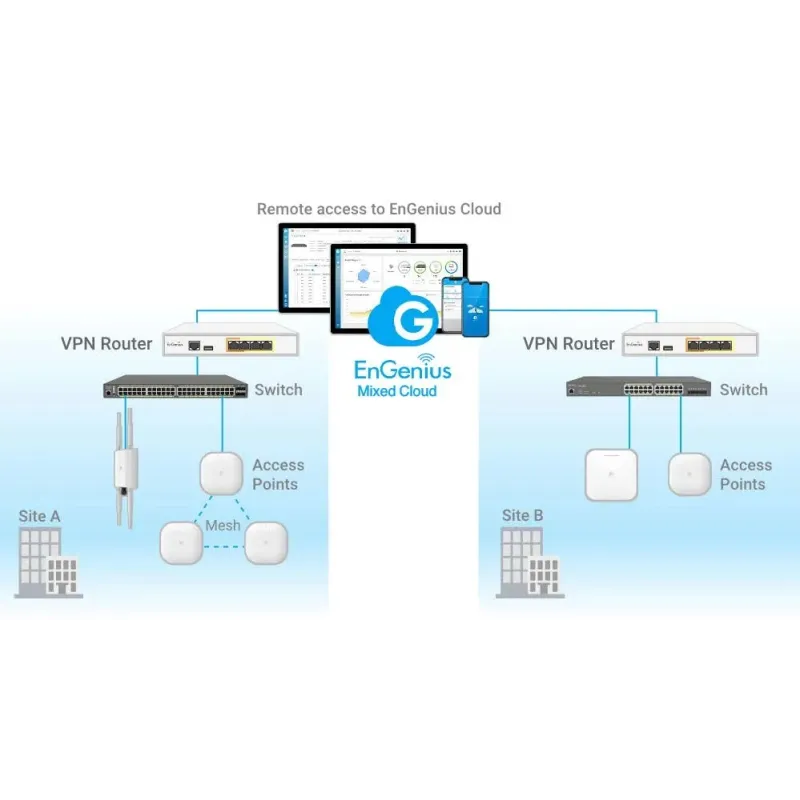

    Cloud-Based Unified Management


    EnGenius ESG510 Cloud Managed Security Gateway



     บริหารจัดการด้วย EnGenius Cloud ที่สามารถ Managed และ Monitor ระบบเครือข่ายทั้งหมดตั้งแต่ Gateway, Switch, Access Point ได้จาก Dashboard เดียว
    และ ยิ่งง่ายมากขึ้นเมื่อมีการติตตั้ง Gateway เพื่อทำ Point to Multi-Point VPN ที่สามารถ Deploy สำหรับหลายๆสาขาย่อยได้ โดยไม่ต้องส่ง Engineer เข้าไปที่ Site งานอีกต่อไป





    High Speed 2.5 Gigabit WAN and LAN Ports


    EnGenius ESG510 Cloud Managed Security Gateway



    Gateway รองรับ 2 WAN Port ความเร็ว Interface แบบ 1/2.5Gbps และ 2 LAN Port ความเร็ว 1/2.5Gbps เช่นกัน ทำให้การใช้งานแบบ Multiple Gigabit Internet หรือ Loadbalance ได้โดยไม่มีปัญหาคอขวดที่ Interface แบบเก่าที่รองรับแค่ 1Gbps





    High-Efficiency Stateful Firewall


    EnGenius ESG510 Cloud Managed Security Gateway



    Gateway รองรับ Stateful firewall มี Throughput สูงสุด 2.3Gbps สามารถป้องกันการโจมตีจากภายนอก และ Filter packet ที่ไม่เป็นไปตามนโยบายความปลอดภัยขององค์กรได้





    Uninterrupted Connection with WAN & Cellular Link


    EnGenius ESG510 Cloud Managed Security Gateway



    Gateway มี WAN ความเร็ว Interface แบบ 2.5Gbps 2 ญนพะ ที่สามารถทำงานในโหมด Load-balancing หรือ จะตั้งให้เป็นโหมด Redundant WAN Link (Mode Fail-Over) ได้โดยเมื่อ Primary WAN หลักล่มจะสลับวิ่งบน Secoundary WAN2 หรือ Cellular 4G/5G ที่เป็น Backup Link ได้โดยอัตโนมัติ

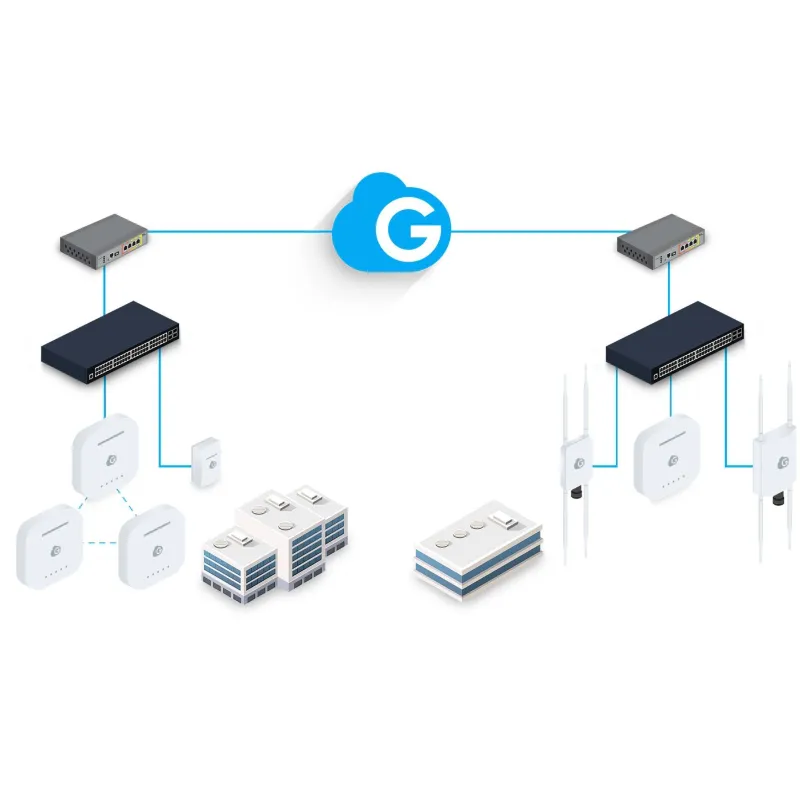

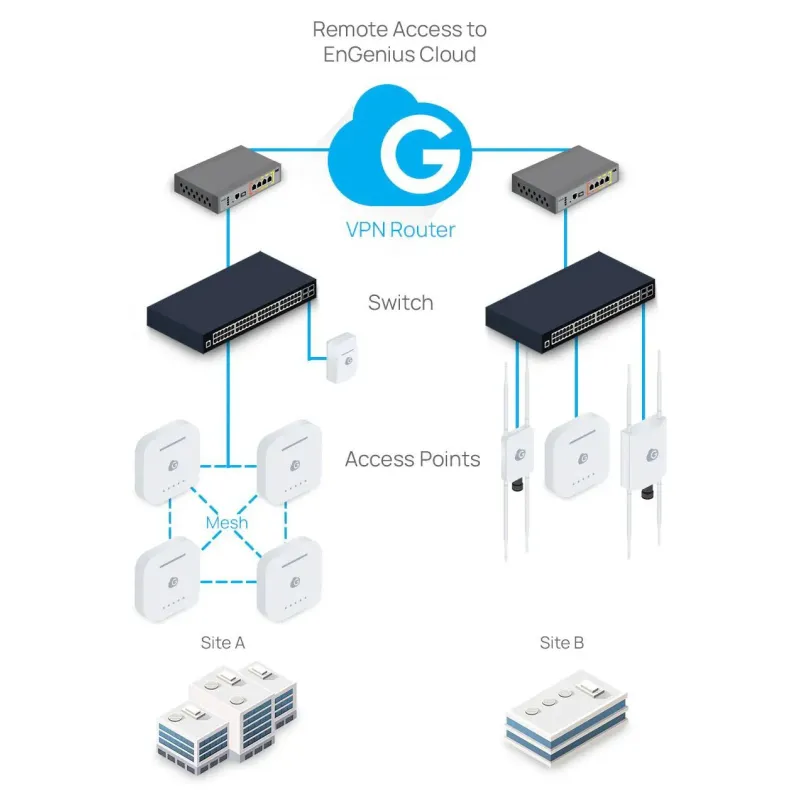

    Secure Site-To-Site and Client VPN


    EnGenius ESG510 Cloud Managed Security Gateway

    EnGenius Security Gateway รองรับการทำ VPN ในรูปแบบ Site to Site (Multi-Site) หรือ Remote to Site เพื่อให้ Client ที่อยู่ข้างนอกสามารถเชื่อมต่อมายังเครือข่ายในสำนักงานได้ โดยการตั้งค่าสามารถทำง่ายๆ เพียงไม่กี่คลิ้กบน EnGenius cloud





    Self-Healing Auto VPN


    EnGenius ESG510 Cloud Managed Security Gateway



    EnGenius Cloud จะทำการ Monitor การเชื่อมต่อของ VPN Tunnel อยู่ตลอดเวลา และ จะทำการปรับตั้งค่าเพื่อรักษาการเชื่อมต่อ VPN Tunnel ให้ทำงานได้ต่อไป อย่างอัตโนมัติ แม้มีการเปลี่ยน WAN IP Address หรือมีการเปลี่ยนค่า Port forwarding ก็ตาม





    Web-Based UI and Cloud-To-Go Mobile App


    EnGenius ESG510 Cloud Managed Security Gateway



    ติดตั้ง ตั้งค่า และ ดูแลระบบ อุปกรณ์ ตั้งแต่ Gateway, Switch, Access Point ด้วย EnGenius Cloud Platform ที่สามารถใช้งานได้ผ่าน Web หรือ Mobile App....

    รายละเอียดสินค้า
    10 รายการ

    ข้อมูลสินค้า

    มี Uplink Port Lan Multi-Gig
    Yes
    จำนวน WAN/ Internet
    2 Wan/Internet
    รองรับ VPN
    Yes
    รองรับ 3G/ 4G LTE
    3G/4G USB Dongle
    มี Firewall
    Yes
