Product Specification |
Technical Specifications |
Standards | IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz
IEEE 802.3at
IEEE 802.11r
IEEE 802.11k
IEEE 802.11i
IEEE 802.11x |
Antenna | Internal Omni-Directional Antennas
3 dBi on 2.4 GHz & 5 GHz |

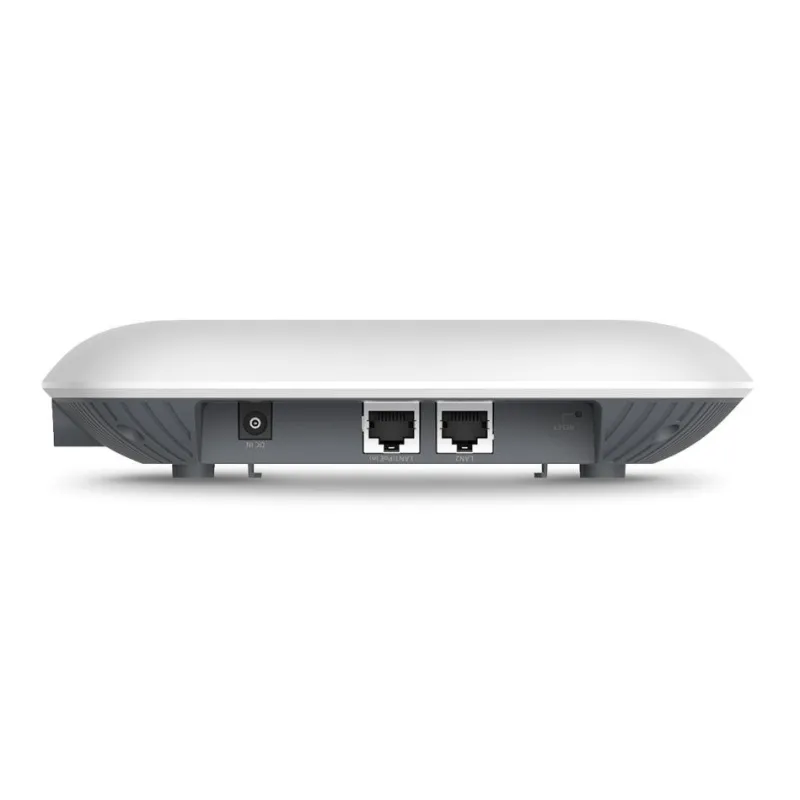

Physical Interface | 2 x 10/100/1000 Gigabit Ethernet Ports
(Link Aggregation achieves 2Gbps Throughput)
- LAN1: Supports 802.3at PoE Input
- LAN2: Data Pass Through
1 x Reset Button
1 x Power Connector |
Physical Security | Kensington Security Slot |
LED Indicators | 1 x Power
2 x WLAN (Wireless Connection)
2 x LAN (2.4GHz & 5GHz)
Power Source
External Power Adapter
DC IN, 12V/ 2A
IEEE 802.3at Compliant Source
Active Ethernet (PoE) |
| Redundant 2nd LAN Port Power |
Mounting | Ceiling Mount
Wall Mount |
Wireless & Radio Specifications |
Operating Frequency | Dual-Radio Concurrent 2.4GHz & 5GHz |
Operation Modes | Access Point |
Frequency Radio | 2.4GHz: 2400MHz ~ 2835MHz
5GHz: 5150MHz ~ 5250MHz, 5470 ~ 5725MHz, 5725MHz ~ 5850MHz |
Peak Power | Up to 21W |
Transmit Power | Up to 27 dBm on 2.4 GHz
Up to 27 dBm on 5 GHz
Max transmit power is limited by regulatory power |
| Tx Beamforming (TxBF) |
Radio Chains/Spatial Streams | 4x4:4 |
SU-MIMO | Four (4) Spatial Stream SU-MIMO up to 1733 Mbps to a single client |
MU-MIMO | Three (3) Spatial Stream MU-MIMO up to 1300 Mbps to three (3) MU-MIMO capable wireless devices simultaneously |
Supported Data Rates (Mbps) | 2.4 GHz: Max 800
5 GHz: Max 1733
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS23)
802.11ac: 6.5 to 1733 (MCS0 to MCS9, NSS=1~4) |
Supported Radio Technology | 802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM) |
Channelization | 802.11ac supports very high throughput (VHT) – VHT 20/60/80 MHz channel width
802.11n supports high throughput (HT) – HT 20/40 MHZ channel width
802.11n supports very high throughput under the 2.4 GHz radio – VHT 40 MHz (256-QAM)
802.11n/ac packet aggregation: AMPDU, ASPDU |
Supported Modulation | 802.11b: BPSK, QPSK, CCK
802.a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
Management |
Multiple BSSID | Supports up to 16 SSIDs, 8 SSIDs per radio |
VLAN Tagging | Supports 802.1q SSID-to-VLAN Tagging
VLAN Pass-through |
| Spanning Tree |
QoS | Compliant with IEEE 802.11e Standard
WMM |
SNMP | v1, v2c, v3 |
MIB | I/II, Private MIB |
Management Features |
Deployment Options | Standalone (Individually Managed)
Managed Mode (with Neutron Series Switch/ezMaster) |
Wireless Management Features (with ezMaster & Neutron Switch) | AP Auto Discovery and Provisioning
AP Auto IP Assignment
AP Cluster Management
Remote AP Rebooting
AP Device Name Editing
AP Radio Settings
Band Steering
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
AP Client Limiting
Client Fingerprinting
AP VLAN Management
VLANs for AP - Multiple SSIDs
Secured Guest Network
Captive Portal
Access Point Status Monitoring
Rogue AP Detection
Wireless Client Monitoring
Background Scanning
Auto Transmit Power
Auto Channel
Email Alert
Wireless Traffic & Usage Statistics
Real-time Throughput Monitoring
SmartSync Redundancy
Visual Topology View
Floor Plan View
Map View
Wireless Coverage Display
Secure Control Messaging (SSL Certificate)
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
One-Click Update
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler
Traffic Shaping |
Configuration | Web Interface (HTTP)
CLI (Telnet) |
Control Features | Managed Mode (by Neutron Switch/ezMaster)
Auto Reboot
One-Click Firmware Upgrade
Firmware Upgrade: Web interface or CLI (FTP/HTTP) |
Security | WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)
Hide SSID in beacons
MAC Address Filtering, up to 64 MACS per SSID
Https Support
SSH Support
Client Isolation
L2 Isolation |
Environmental & Physical |
Temperature Range | Operating: 32?F to 122?F, 0?C to 50?C
Storage: -22?F to 176?F, -30?C to 80 ?C |
Humidity (Non-condensing) | Operating: 90% or less
Storage: 90% or less |
Device Dimensions & Weights |
EWS375AP Device | Weight: 3.7 lbs.
Width: 8.46" (215 mm)
Length: 8.46" (215 mm)
Height: 2.2" (55.88 mm) |
Packaging | Weight: 5.07 lbs. (2.29 kg)
Width: 10.4" (266 mm)
Length: 12.87" (327 mm)
Height: 4.46" (116 mm) |
Package Contents | 1 - EWS375AP 11ac Outdoor AP
1 - 12V/ 2A Power Adapter
1 - Ceiling Mounting Bracket Set
1 - T-Rail Mounting Kits
1 - Wall Mounting Screw Set
1 - Quick Installation Guide |
Certifications | FCC
IC |
Warranty | 3 ปี
|
