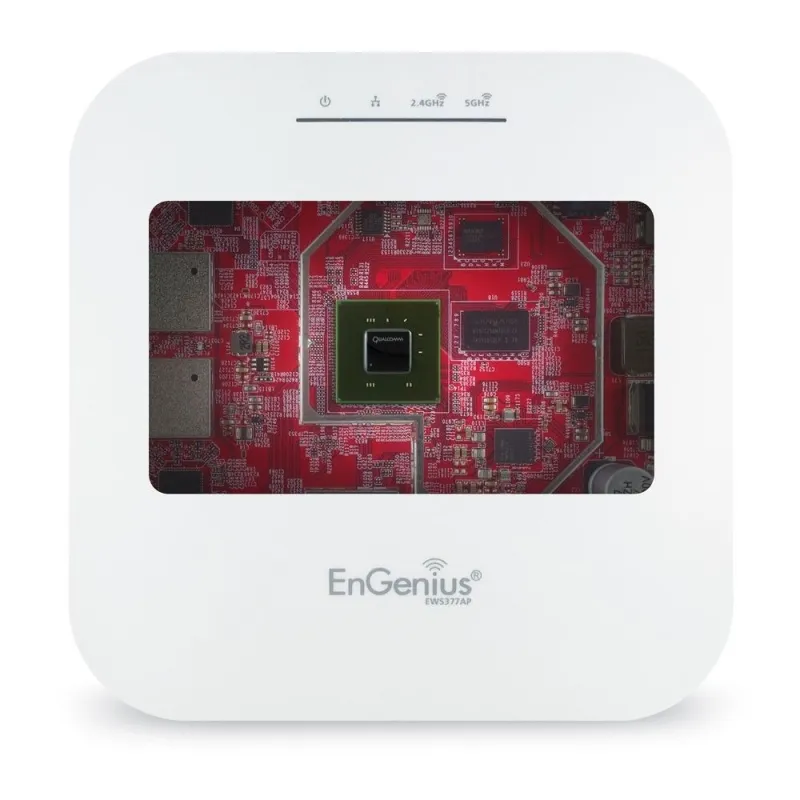

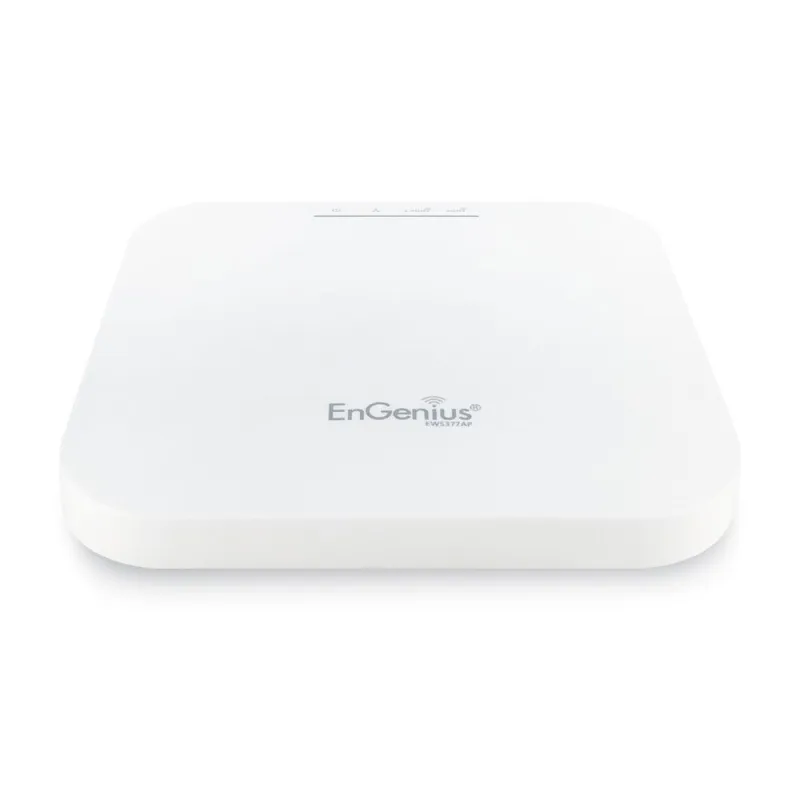

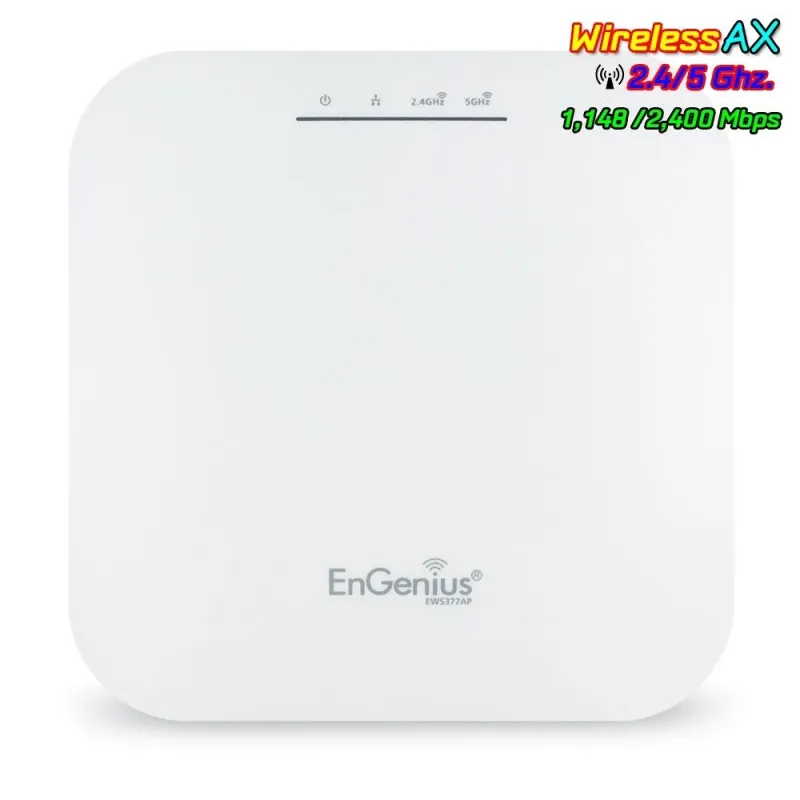

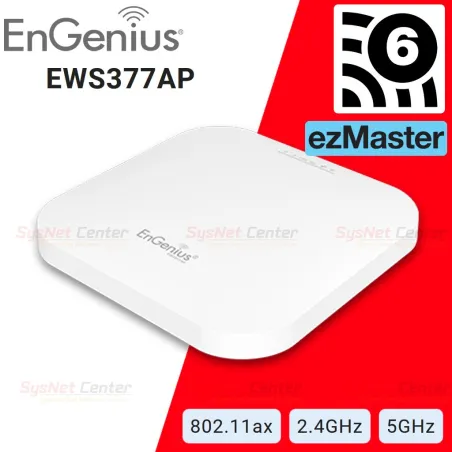

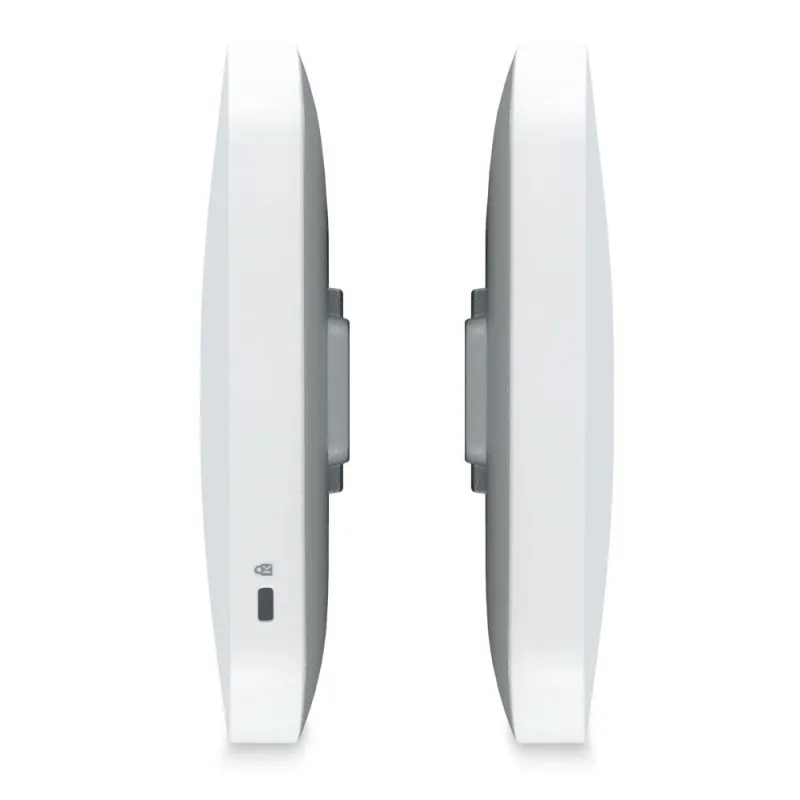

EnGenius EWS377AP 802.11ax 4x4 Managed Indoor Wireless Access Point 1,148/2,400Mbps

Product Specification

Technical Specifications

Standards

IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz

Backward compatible with 802.11b/g/n/ac

Processor

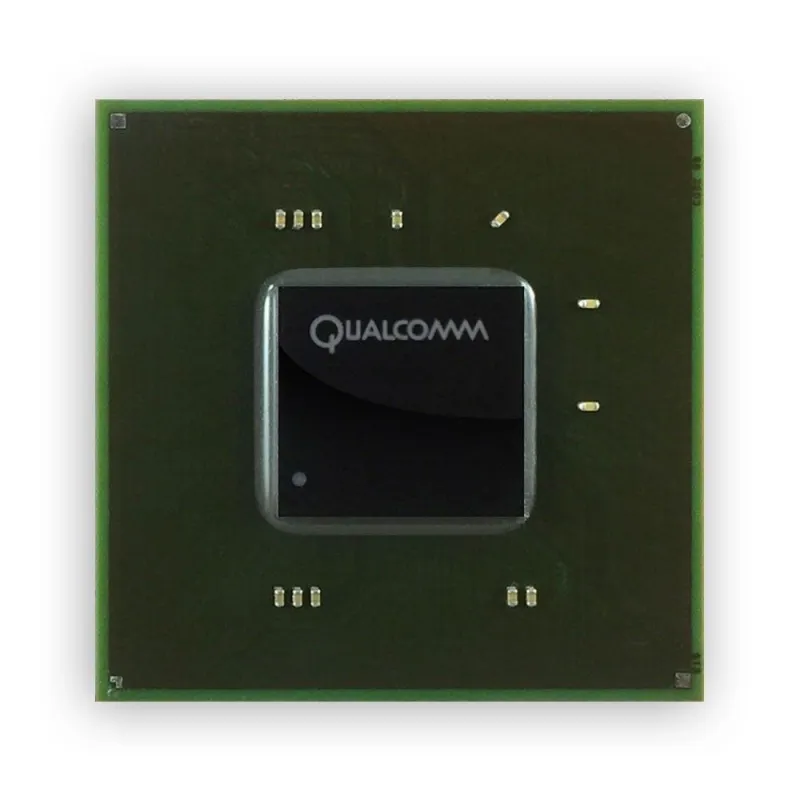

Qualcomm Quad-Core ARM Cortex A53s @ 2.0GHz CPU

Antenna

4 x 2.4 GHz: 3 dBi
4 x 5 GHz: 3 dBi
Integrated Omni-Directional Antenna

Physical Interface

1 x 10/100/1000/2500 BASE-T, RJ-45 Gigabit Ethernet Port
1x DC Jack
1 x Reset Button

LED Indicators

1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
1 x BLE
1 x SCAN
Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter

Maximum Power Consumption

19.5W

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

AP, Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2835 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz

Tx Beamforming (TxBF)

Radio Chains/Spatial Stream

4x4

SU-MIMO

Four(4) spatial stream SU-MIMO for 2.4GHz and four(4) spatial stream SU-MIMO for 5GHz up to 3,548 Mbps wireless data rate to a single wireless client device under the both 2.4gHz and 5GHz radio.

MU-MIMO

Four(4) spatial streams Multiple (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to two(2) two streams MU-MIMO 11AX capable wireless client devices under 5GHz simultaneously.

Four(4) Multiple (MU)-MIMO for up to 1148 Mbps

wireless data rate to transmit to two (2) two streams MU-MIMO 11AX capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps)

802.11ax:
2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies

802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)

Channelization

802.11ax supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Management

Multiple BSSID

8 SSIDs for both 2.4GHz and 5GHz radios.

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Complaint With IEEE 802.11e Standard
WMM

SNMP

v1, v2c, v3

MIB

I/II, Private MIB

Management Features

Deployment Options

Stand-Alone (Individually Managed)
Managed Mode (with Neutron Series Switch/ezMaster)

Stand-Alone Management Features

Auto Channel Selection
Auto Transmit Power
Wireless STA (Client) Connected List
Guest Network
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
Band Steering per SSID
Traffic Shaping per SSID/per user
VLAN Per SSID
VLANs for Access Point – Multiple SSIDs
Backup/Restore Settings
Auto Reboot
E-Mail Alert
Site Survey
Save Configuration as Users’ Default

Wireless Management Features (With ezMaster & Neutron Switch)

AP Auto Discovery & Provisioning
AP Auto IP Assignment
AP Group Management
Auto AP Rebooting
AP Device Name Editing
AP Radio Settings
Band Steering Per SSID
Traffic Shaping Per SSID/User
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
AP Client Limiting
Client Fingerprinting
AP VLAN Management
VLAN Per SSID
Captive Portal Per SSID (Guest Networking)
Multi-Tenant Account
AP Traffic Log
Access Point Status Monitoring
Wireless Client Monitoring
Email Alert
Wireless Traffic & Usage Statistics
Real-Time Throughput Monitoring
Visual Topology View
Floor Plan View
Map View
Wireless Coverage Display
Secure Control Messaging (SSL Certificate)
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
One-Click Update
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler
Schedule reboot

Control Features

Managed Mode (w/Neutron Switch/ezMaster)
Distance Control (ACK Timeout)
Multicast Supported
Wi-Fi Scheduler
Client Traffic Status
RADIUS Accounting (802.1x)
Power Save Mode (U-APSD Support)
CLI Support
HTTPS

Wireless Security

WPA3
WPA2 Enterprise (AES)
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation

Environmental & Physical

Temperature Range

Operating: 32?F~104?F (0 ?C~40 ?C)
Storage: -22 ?F~176 ?F (-30 ?C~80 ?C)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Device Dimensions & Weights

EWS377AP Device

Weight: TBD
Length: 8.07" (205 mm)
Width: 8.07" (205 mm)
Height: 1.31" (33.2 mm)

Packaging

Weight: TBD
Length: 9.65" (245 mm)
Width: 9.65" (245 mm)
Height: 3.35" (85 mm)

Package Contents

EWS377AP Dual-Band AX3600 Indoor Access Point
Ceiling Mount Base (9/16” Trail)
Ceiling Mount Base (15/16” Trail)
Ceiling and Wall Mount Screw Kits
Quick Installation Guide

Certifications

FCC
CE

Warranty

3 ปี
