EnGenius EWS550AP Dual Band AC1300 Managed Wall Plate Access Point ความเร็วสูงสุด 1.3Gbps รองรับการจ่ายไฟ POE

Product Specification

แก้ปัญหาสัญญาณ Wireless ไม่สามารถเข้าถึงในห้องพักได้

เทคโนโลยี EnGenius Neutron Series Wireless Management solution รองรับการควบคุมการทำงาน หรือ Monitor ผ่านอุปกรณ์ Engenius Neutron Switch

รองรับ Software การบริหารเครือข่าย Wireless EZ Controller Access Point Management software

Access Point Type

Indoor, dual radios concurrent
5GHz 802.11 ac 2x2 MIMO is backwards compatible with 802.11 a/n mode
2.4GHz 802.11 n 2x2 MIMO is backwards compatible with 802.11 b/g.

SU-MIMO

Two(1) spatial stream SU-MIMO for up to 1,267 Mbps wireless data rate to a single wireless client device

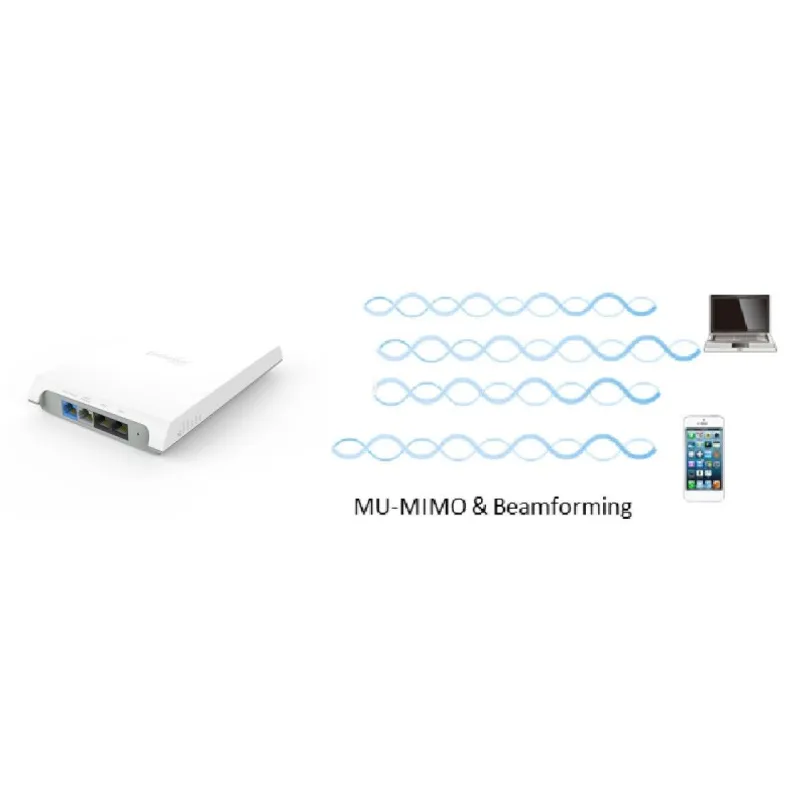

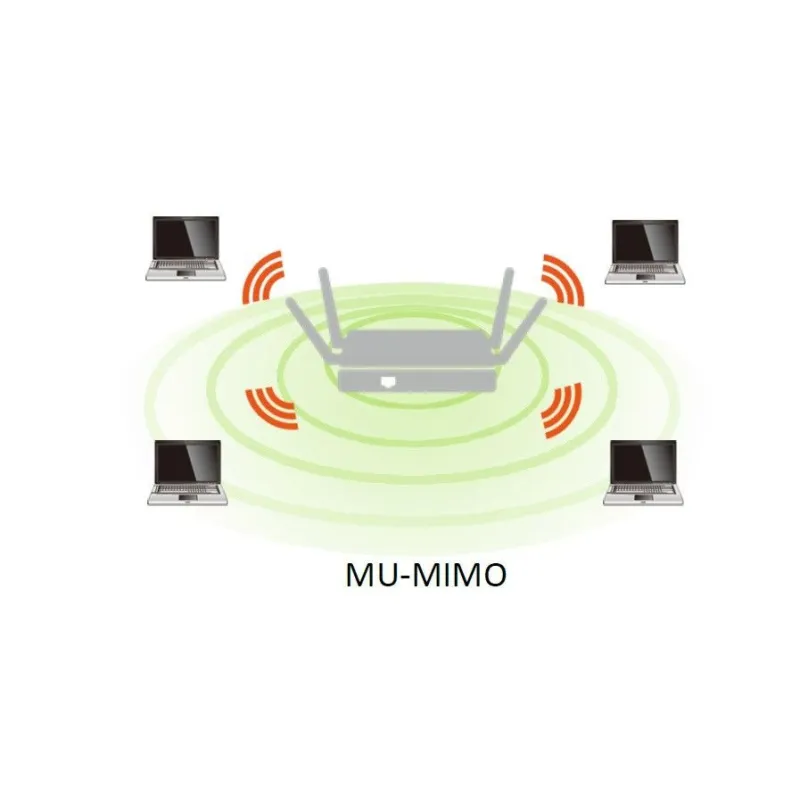

MU-MIMO

Two(1) spatial stream MU-MIMO for up to 867 Mbps wireless data rate to transmit to two(2) MU-MIMO capable wireless client devices simultaneously.

Frequency Radio

2.4GHz: 2400MHz ~ 2835MHz,
5GHz: 5150MHz~5250MHz,
5250MHz~5350MHz, 5470~5725MHz,
5725MHz~5850MHz

Transmit Power (Maximum Value)

2.4GHz: 15dBm
5GHz: 15dBm

Tx Beamforming (TxBF)

Increasing signal reliability and transmitting distance.

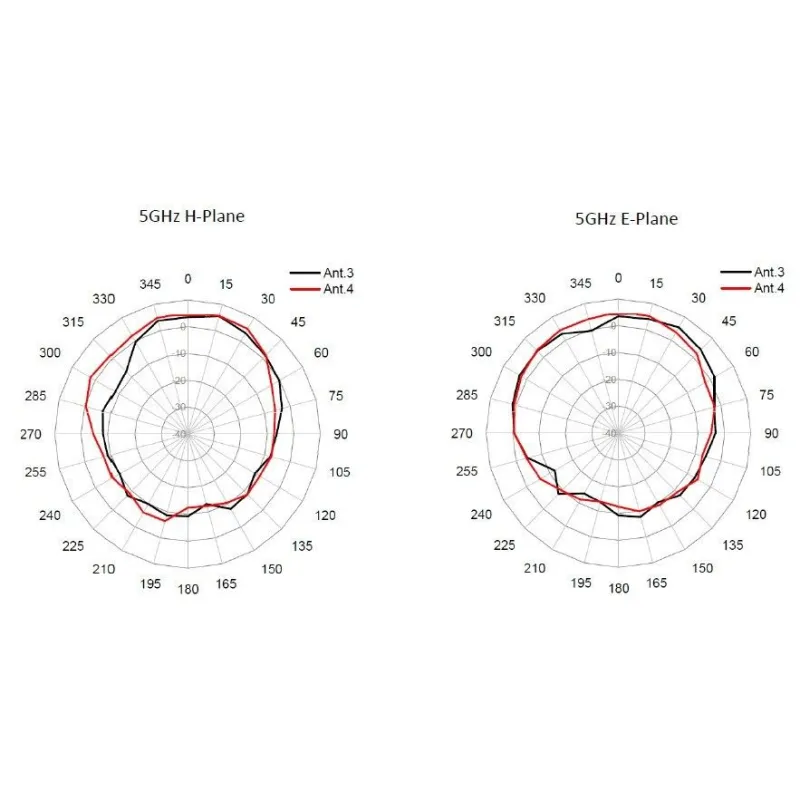

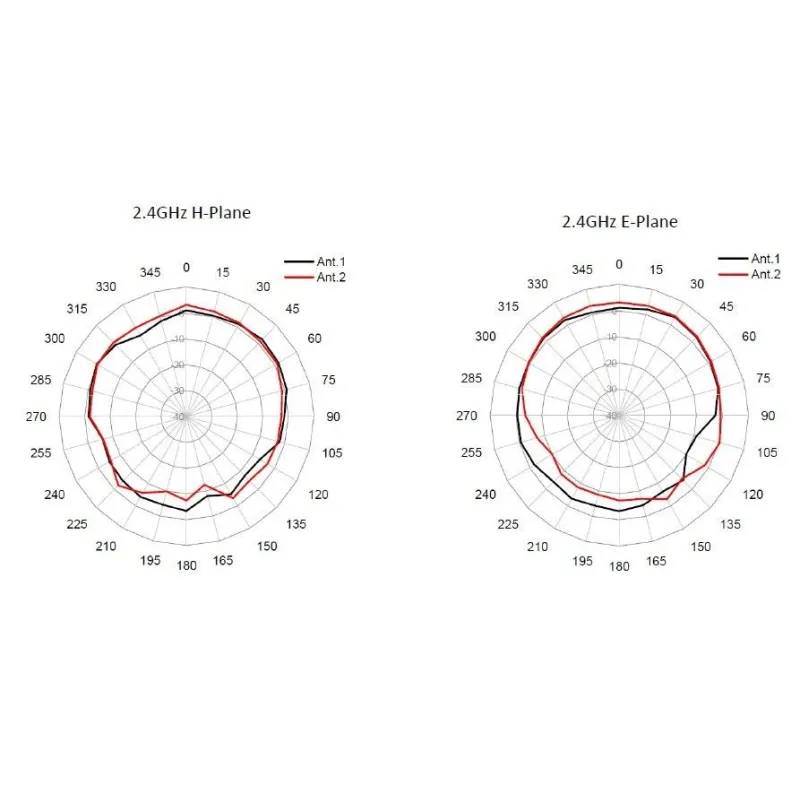

Integrated Antenna

2.4GHz: 4 .0 dBi
5GHz: 6.0 dBi

Supported data rates (Mbps)

802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS=1 to 2)

Maximum Power Consumption

10W

Power Source

Power Over Ethernet: Supports 802.3af output when PoE input is 802.3at

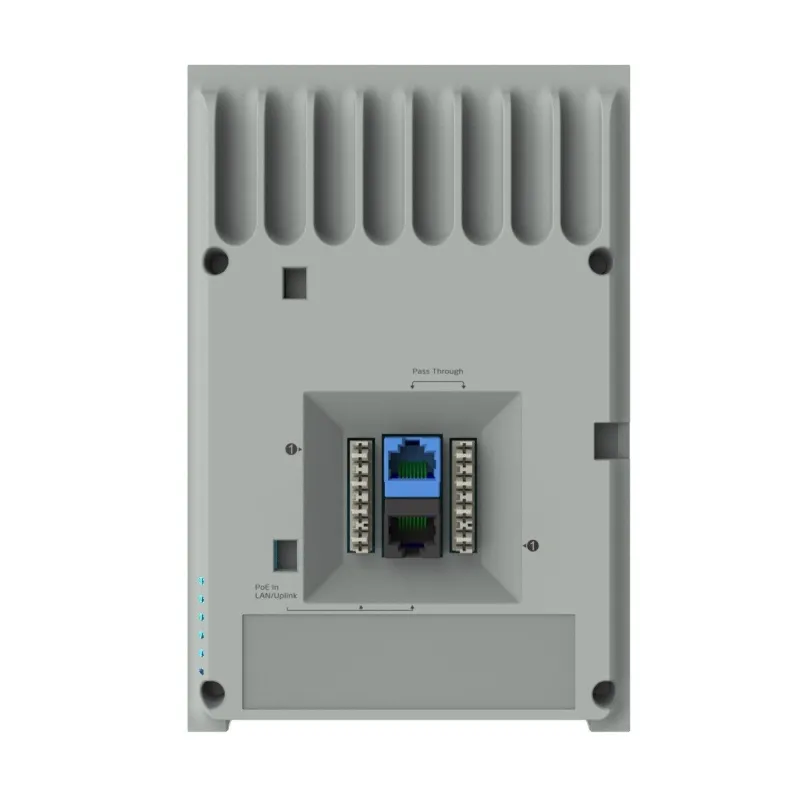

Networking Interface

Uplink (Back plate) : 1x 10/100/1000 Mbps Ethernet port
Client Ports : 3 x 10/100/1000 Mbps Ethernet ports
– Port 1 is PSE – Provides 802.3af PoE/ Requires 802.3at power source
1 x 10/100/1000 Mbps Pass-through port (connectivity provided by backend switch)
1 x 110 punch down block
2 x RJ45 pass through ports

Wall Mounting

Assemble a mounting bracket for J-box

Dimensions

W: 4.9" x L: 7.4" x H: 1.0" (12.5 x 18.8 x 2.6 cm)

Weight

0.454 Kg ( 1.0 lbs)

Operating

Temperature: 0?C~40?C (32?F~104?F)
Humidity: 0%~90% typical

Storage

Temperature: -30?C~70?C (-22?F~158?F)
Humidity: 0%~90% typical

รับประกัน

3 ปี
