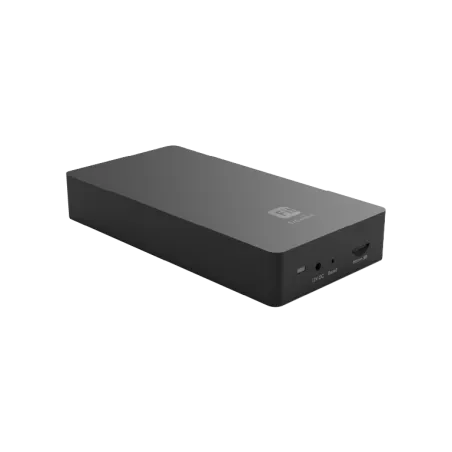

Engenius FitController100
EnGenius Fit Network Management Controller รองรับการจัดการอุปกรณ์ Engenius Fit ได้ 100 Device
- Simply plug into PoE Ethernet switch. No additional download or training required
- Network management for up to 100 EnGenius Fit APs and Switches
- Hierarchy view to quickly structure customer sites and organize networks
- Network health view to analyze networks and report potential issues Multi-tenant user login privileges.
- Device two-factor authentication to ensure only authorized devices are on the network
- Support up to 50 networks.
- Built-in powerful Qualcomm Qual-Core CPU
- Micro SD slot for extra back-up
- 802.3af or DC12/1A input power sourceFast deployment with quick-scan device registration & configuration.
FitController100 Technical Specifications
|
| CPU |
Model:Qualcomm® Quad-Core ARM Cortex A53 @ 1.8GHz CPU
Architecture:32-bit
Hardware Encryption Acceleration:Yes
|
| Memory |
System Memory: 2GB DDR4
|
|
Memory Slot Storage
|
eMMC: 8GB (MLC)
|
|

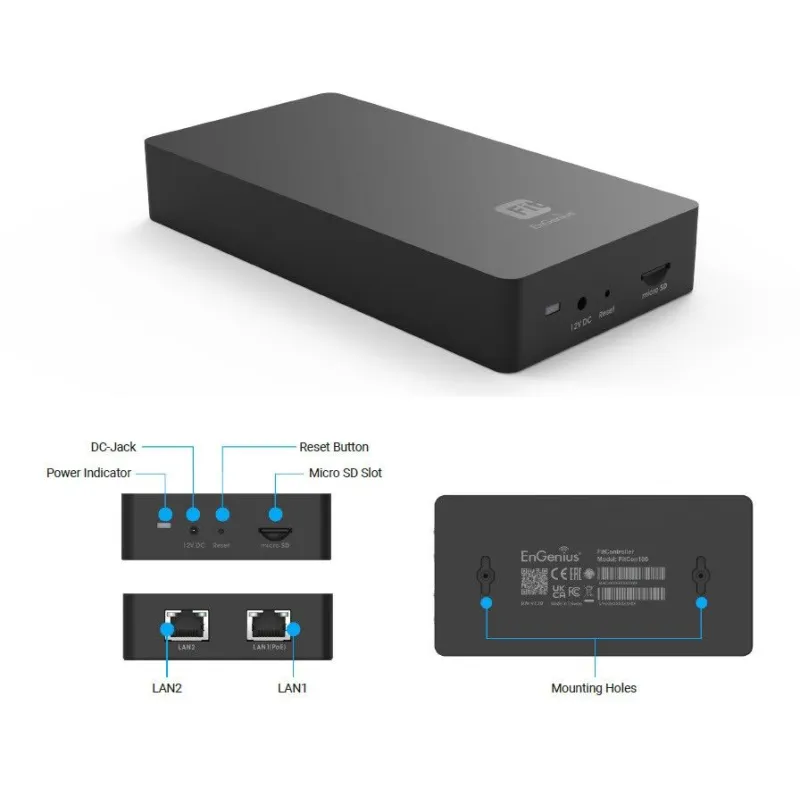

Interfaces and LEDs
|
(1 x PoE 802.3 af)
1 x Micro SD Slot
1 x DC-Input Jack
1 x Reset Button
1 x Power LED (Blue)
2 x LAN LED (Green)
|
|
Operating
|
Temperature: 32ºF~122ºF (0ºC~50ºC)
Humidity: 0%~90% typical
|
|
Storage
|
Temperature: 40°C~80°C (-40°F~176°F)
Humidity: 0%~90% typical
|
|
Management
|
Manage up to 100 EnGenius Devices (Access Points or Switches)
|
|
Reserving Suration of Managerial Data
|
Maximum 7 days for 100pcs of Access Points and switches
|
|
Dashboard
|
Managed Access Points / Switches
- System Resource Usage
- CPU: Usage (%) of CPU for FitController
- Memory: Usage (%) of Memory for FitController
- Disk: Usage (%) of Disk for FitController
System Overview
Recent Projects
|
|
Global Settings
|
Account Management (Multi-Tenant)
E-Mail Alert
Backup/Restore
- Option 1: Backup configure files to FitController
- Option 2: Backup config files to Micro SD card.
Reboot/Reset FitController
Auto Transmit Power
Auto Channel
Diagnostic
Software Update
|
|
Device Inventory
|
Register EnGenius Fit devices (AP or Switches)
|
|
Project
|
Device Management
Summary
Device Configuration
- SSID Setting
- VLAN Per SSID
- Fast Roaming (802.11k)
- Band Steering
- NAS IP
- NAS ID
- NAS Port
- L2 Isolation
- Whited List/Blocked List per SSID
- Traffic Shaping
AP Groups
Schedule
- Schedule Settings
- Reboot
- Scheduler for SSID
Monitoring
Rogue AP Detection
Active Clients
Visualization
Topology View
Statistics
Access Point
Wireless Client Information
Real Time Throughput
Hotspot Service
Captive Portal (NAT / Bridge mode)
Guest Account
Maintenance
Bulk Update
|
|
Supported Models
|
EWS FIT AP
EWS FIT Switch
|
|
Dimensions & Weights
|
|
|
FitCon100 (Device)
|
Weight: 165g
Length: 6.02” (153 mm)
Width: 3.04” (77.4 mm)
Height: 1.69” (43 mm)
|
|
Packaging
|
Weight: 260g
Length: 6.86” (174.25 mm)
Width: 3.95” (100.5 mm)
Height: 1.69” (43 mm)
|
|
Certification
|
FCC
CE
IC
UKCA
|
|
Mounting
|
Ceiling Mounting
Wall Mounting
|
|
Package Contents
|
1 – FitController100
1 – Product card
1 - Ethernet cable
1 - Screw position identifier
1 – Wall Mount Accessories
(Exclude Power Adapter)
|
|
Power Source(Optional)
|
Power adaptor:DC12V/1A AC100~240V 2.5
PoE Switch: 802.3af
|
|
ประกัน
|
3 ปี
|
