Engenius SkyKey Central Device Management รองรับ Engenius AP และ Sw สูงสุด 100 Device

Product Specification

Overview

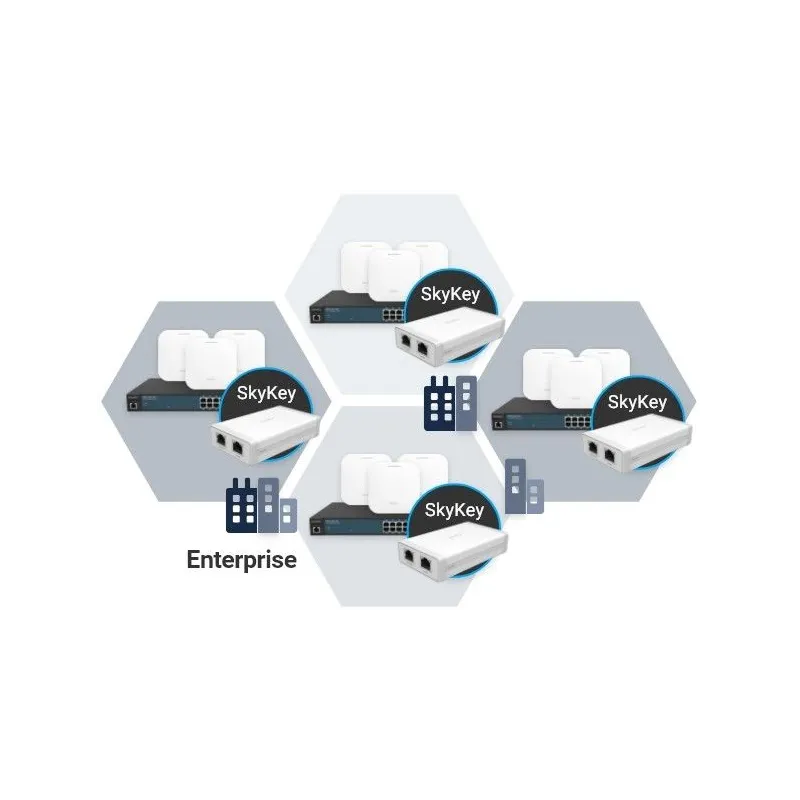

Engenius SkyKey - Central Device Management ชุด Hardware ezMaster รองรับการ Manage และ Monitor อุปกรณ์ Engenius ได้สูงถึง 100 Device

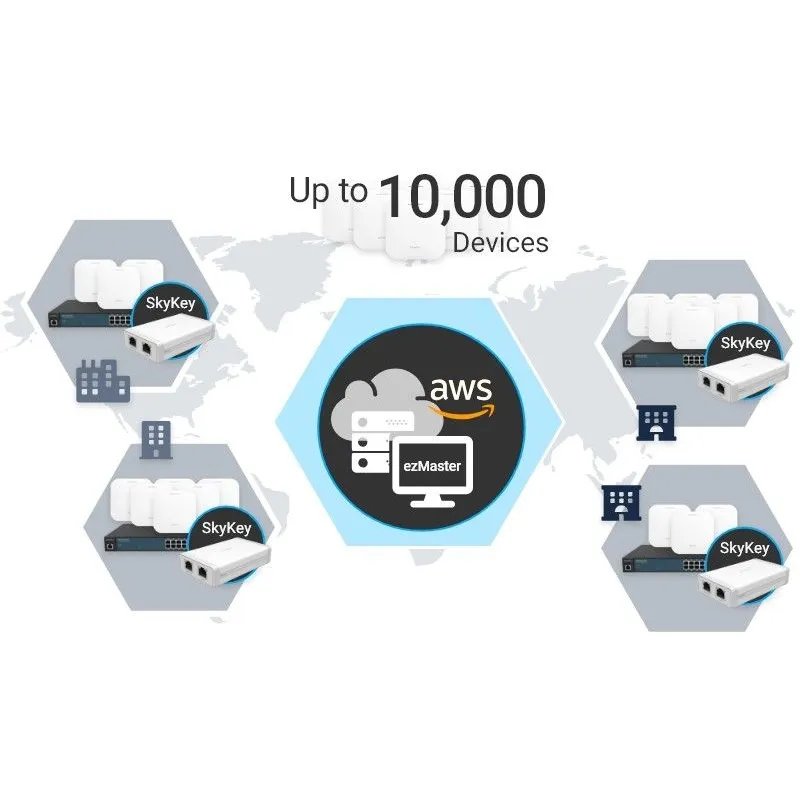

สามารถใช้งานได้ทั้งแบบ Local และ Remote
รองรับการทำ Captive Portal, Fast Roaming, Band Steering และ Traffic Shaping

Hardware Specification

CPU

Model: Qualcomm IPQ4019
Architecture: 32-bit
Clock Rate: ARM A7 Quad Core 717MHz
Hardware Encryption Acceleration: Yes

Memory:

System Memory: 1GB DDR3

Storage:

eMMC: 4GB (MLC)

Interfaces and LEDs

2 x 10/100/1000 Mbps RJ45 ports (1 x PoE)
1 x Micro SD Slot
1 x DC-Input Jack
1 x Reset Button
1 x Power LED (Orange)
2 x LAN LED (Green)

Mechanical & Environment

Dimension

TBD

Weight (Without accessories)

TBD

Operating:

Temperature: 0?C~40?C (32?F~104?F)
Humidity: 0%~90% typical

Storage:

Temperature: -40?C~80?C (-40?F~176?F)
Humidity: 0%~90% typical

Compliance Regulatory

FCC

Subpart15 B

CE

EN 55032
EN 55035

Low Voltage Directive 2014/30/EU

Mounting

Ceiling Mounting

Ceiling Mounting
Wall Mounting

Controller Capacity

Number of Manageable devices

Up to 100

Storage of log data

Up to 7d ays bas e d on 1 00 managed devices

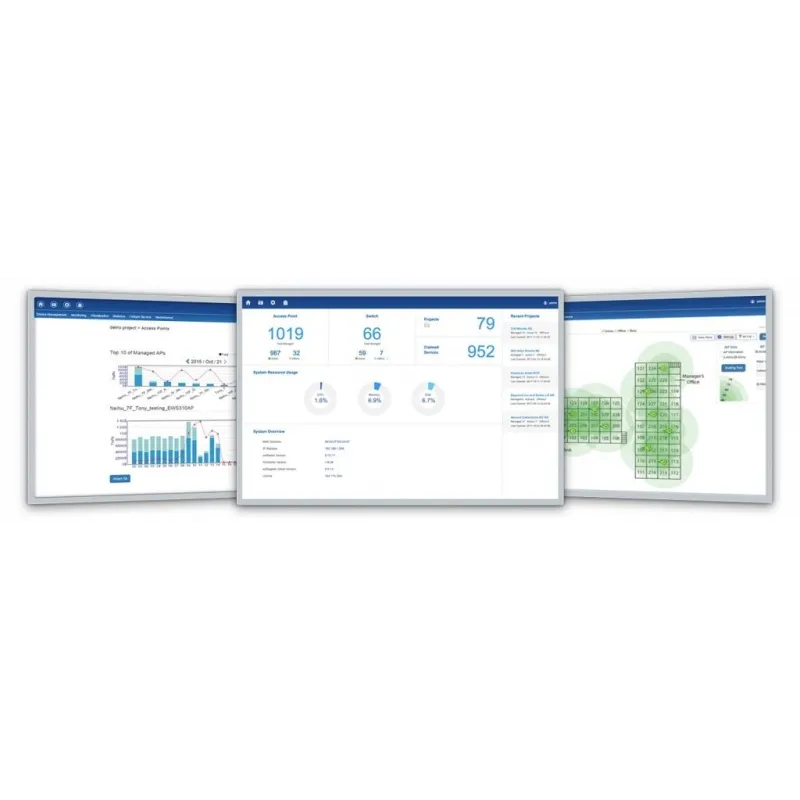

Dashboard

Managed Access Points / Switches

Users can realize status of Access Points and Switches

System Resource Usage

CPU: Usage (%) of CPU for this SkyKey
Memory: Usage (%) of Memory for this SkyKey
Disk: Usage (%) of Disk for this SkyKey

System Overview

Users can realize ezMaster software version on this SkyKey

Recent Projects

Updated or revised projects are listed in the right side bar.

Global Settings

Account Management (Multi-Tenant)

Master: A supervisor user can be considered as a master which can implement any managerial behavior under a Skykey.
Users: Master can assign one of users to a project. Users can edit, manage, remove, Add Access Points, as well as block/allow client devices to access Internet.
Guests: Master can assign one of guests to a specified project. Under this project, a guest can review any information, except for configuration.

E-Mail Alert

Provide a network monitoring tool for administrators to stay informed the configuration change.

Backup/Restore

Backup overall setting of a ezMaster account under this SkyKey. Users can restore this settings/configuration to one ezMaster easily.
Option 1: Backup configure files to SkyKey.
Option 2: Backup config files to Micro SD card. The maximum sets of saved config files is 5.

Reboot/Reset SkyKey

Reboot this ezMaster under this SkyKey.
Reset all configuration to default value on this SkyKey.

Background Scanning

Regular scanning signal level of an environment to provide parameters for performing Auto Transmit power and auto channel.

Diagnostic

Enable this function to detect the connecting status of this ezMaster under the SkyKey.

Auto Transmit Power

Automatically adjust power level when EWS access points work at an environment.

Auto Channel

Automatically assign a clearly channel to perform RF transmission under a pervasive environment.

Software Update

Update ezMaster under this SkyKey throughout manually update Update ezMaster under this SkyKey throughout one -click-update function

Inventory

Put AP to this SkyKey inventory list before managing. The maximum Qty is supported up to 100 Access Points and switches.

Scheduler Settings

Reboot: Reboot Access Points under a project at a time for every weeks or specified days.
Scheduler for SSIDs: Enable this function to allow one of SSIDs for enabling during a session or days of week.

Finger Printing

The value added solution collect information of client devices including name of devices, IP address, MAC address, Operating system version, transmitting and receiving data, and signal level.

Cluster Setting (Group Setting)

SSID Setting

Support 8 SSIDs on both 2.4GHz and 5GHz radios
Users can consider to enable either 2.4GHz or 5GHz radios’ interfaces, as well as enable both radios under a SSID.

Hidden SSID in beacons

Hide this SSID to avoid users for finding it.

VLAN Per SSID

Integrate VLAN ID with a SSID interface to forward packets over the de-fined path.

Fast Roaming (802.11k)

Collect parameters of neighborhood Access Points to find the optimal AP, then client devices will use a fast transition key to handover between AP.

Band Steering

Steer client devices to a proper frequency band for getting more band-width and speed under an Access Point

NAS IP

The NAS IP address to be sent in RADIUS packets from that server.

NAS ID

It is primarily used to notify the source of RADIUS access request so that, the RADIUS server can choose Policy for that request.

NAS Port

Assign a port to be sent in Radius packets from that server.

Wireless Encryption Standard

WPA3/WPA2 AES
WPA3/WPA2 Enterprise (WPA-EAP AES)

L2 Isolation

Block the communication between the associated clients to communi-cate with other clients from all hosts on the same subnet.

Scheduler Settings

Reboot: Reboot Access Points under a project at a time for every weeks or specified days.
Scheduler for SSIDs: Enable this function to allow one of SSIDs for enabling during a session or days of week.

Whited List/Blocked List per SSID

Whited List: Enable a list to allow client devices for accessing to this SSID. Blocked List: Enable a list to block client devices for accessing to this SSID.

Captive Portal (NAT / Bridge mode)

Differentiate the authority of users on using Internet access

MAC Address Filtering

Filter up to 32 sets of MAC addresses per SSID

Traffic Shaping

Controls the bottle of bandwidth to offer the limited bandwidth for an individual SSID or each client per Access Point.

Monitoring

Rogue AP Detection

Enable the function to detect the fake access points in the environment.

Active Clients

The page will show clients’ information including client name, getting IP, MAC address, Client OS*, SSID, Band, Tx, Rx, and RSSI information.

Statistics Information

Access Point

Top ten traffic for the Managed AP. We can reserve data up to 30 days.

Wireless Client Information

Top 100 traffic for wireless client devices..

Visualization

Topology View

Topology view could assist users to realize status of your network and then find abnormal devices for trouble shooting easily.

Map View

Enter this view to find locations of Access Points or switches on global view of google map. You may also filter one of APs from google map easily.

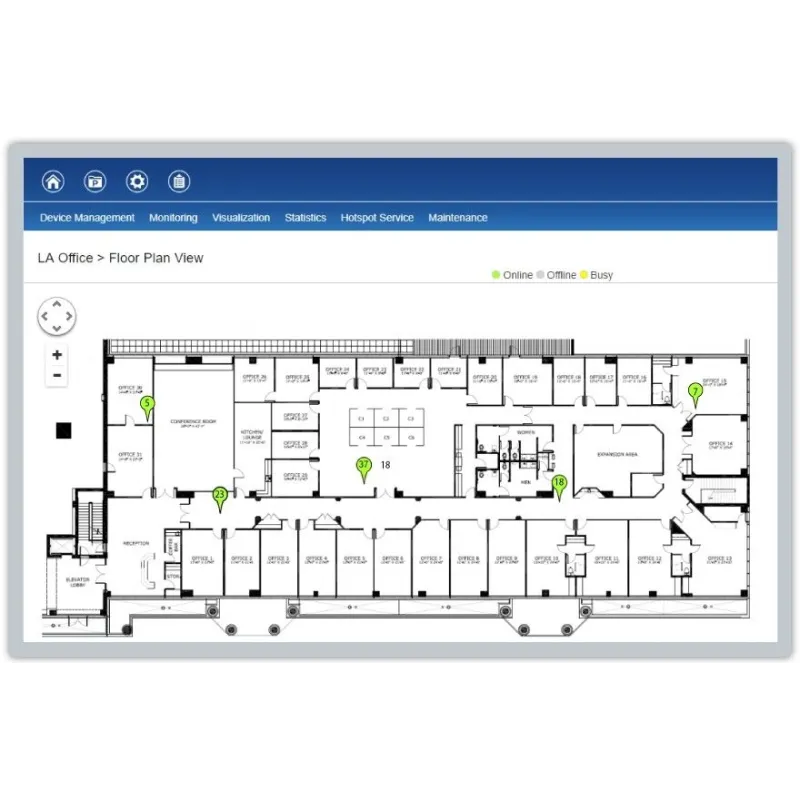

Floor Plan View

Upload a floor plan for this project. Users can put a known floor plan and then place Access Points or switches on this view.

Mesh View

Mesh view also can be realize the overall topology for mesh.

Hotspot Service

Captive Portal profile setting will be set a profile to apply on one of SSIDs. Users can configure authentication types, session of connecting clients, redirect page types and redirect behavior

System Overview

Users can realize ezMaster software version on this SkyKey

Recent Projects

Updated or revised projects are listed in the right side bar.

Maintenance

Bulk Update

Throughout this function to proceed mass upgrade procedure on a specific AP.

Bulk Update (Switch)

Throughout this function to proceed mass upgrade procedure on a specific switch.

AP Remote Log

Synchronize clients’ information of AP to a remote log server.

รับประกัน

สินค้ารับประกัน 1 ปี
