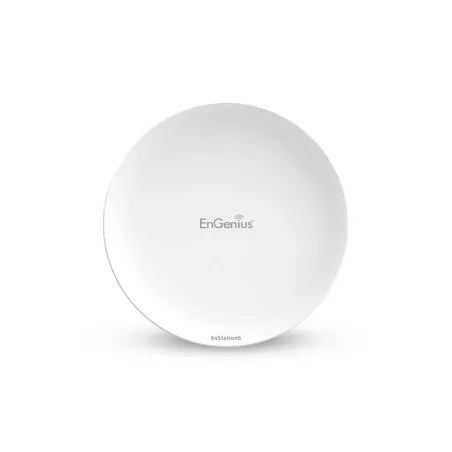

Engenius Station6 Outdoor Long Range CPE ความถี่ 5GHz ความเร็วสูงสุด 1.2Gbps เสาอากาศ 19dBi กำลังส่ง 400 mW พร้อม PoE สำหรับงานเชื่อมต่อเครือข่ายระยไกล Point To Point ระยะไม่เกิน 8Km
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
การ Config Engenius สำหรับทำ Point To Point
Engenius Station6 AX Datasheet
Engenius Station6 AX Quick Install Guide
Product Specification | |
Overview | Engenius Station6 Outdoor Long Range CPE ความถี่ 5GHz มาตรฐาน 802.11ax ความเร็วสูงสุด 1.2Gbps เสาอากาศ 19dBi กำลังส่ง 400 mW พร้อม PoE สำหรับงานเชื่อมต่อเครือข่ายระยไกล Point To Point ระยะไม่เกิน 8Km |
Wireless & Radio Specifications | |
| Operating Frequency | Single band 5 GHz |
| Operation Modes | AP/STA/WDS AP/WDS STA/ Repeater |
| Frequency Radio | 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz |
| Transmit Power | 26 dBm |
| Radio Chains | 2 × 2:2 |
| SU-MIMO Capability | Two (2) spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5GHz radio. |
| MU-MIMO Capability | Two (2) spatial streams Multiple (MU)-MIMO up to 1,200 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously. |
| Supported Data Rates | 802.11ax: 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2) 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2) |
| Supported Radio Technologies | 802.11ax: 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM) 802.11b: Direct-sequence spread-spectrum (DSSS) |
| Channelization | 802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz 802.11n supports high throughput (HT) —HT 20/40 MHz 802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
| Supported Modulation | 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11b: BPSK, QPSK, CCK |
| Max Concurrent User | 128 per radio |
| Management Features | EnWiFi app |
Environmental & Physical | |
| Operating Temperature | -4º~140ºF/-20ºC~60ºC |
| Storage Temperature | -40Fº~176ºF/-40ºC~80ºC |
| Storage Humidity | Storage: 90% or less |
| IP Rating(Outdoor only) | IP55 |
| Surge Protection (Outdoor only) | 1KV |
| ESD Protection(Outdoor only) | Contact: 4KV Air: 8 K |
Dimensions & Weight | |
| Weight | 558g |
| Dimensions | Φ190 x 38 mm |
| Compliance & Warranty Safety Compliance | CB |
| WEEE | Yes |
| RoHS | Yes |
| Regulatory Compliance | FCC CE IC UKCA |
Warranty | 3 ปี, POE 6 เดือน |
