ESG610 Product Specification |

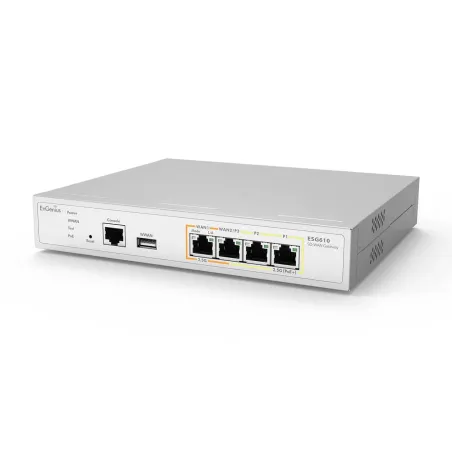

Overview | ESG610 EnGenius Cloud Managed VPN Router, 2 WAN Loadbalance, Firewall Throughput 6.2G, L7-Firewall, 4 Port 2.5Gbps รองรับเครือข่ายความเร็วสูง ที่สามารถบริหารจัดการได้ง่ายๆผ่าน EnGenius Cloud และ Cloud to Go Mobile Application รองรับการทำ 2.5Gbps Dual WAN Load-balancing และ 4G/5G Failover, Site to Multi-Site VPN แบบ Self-Healing Auto VPN, High Speed Stateful Firewall รองรับการทำ Hotspot Authentication ด้วย Internal/External Captive Portal/RADIUS และ เก็บ Log การใช้งาน Internet |
Hardware |
| CPU Processor | Quad Core |
| Operating Frequency | 2.2 GHz |
| Memory | 8GB |
| Storage | 8GB |
| RJ-45 Interface | 4 x 2.5G |
| SFP interface | - |
| PoE Ports | 1 |
| PoE Standard | 802.3 af/at |
| Mounting Method | Wall mount |

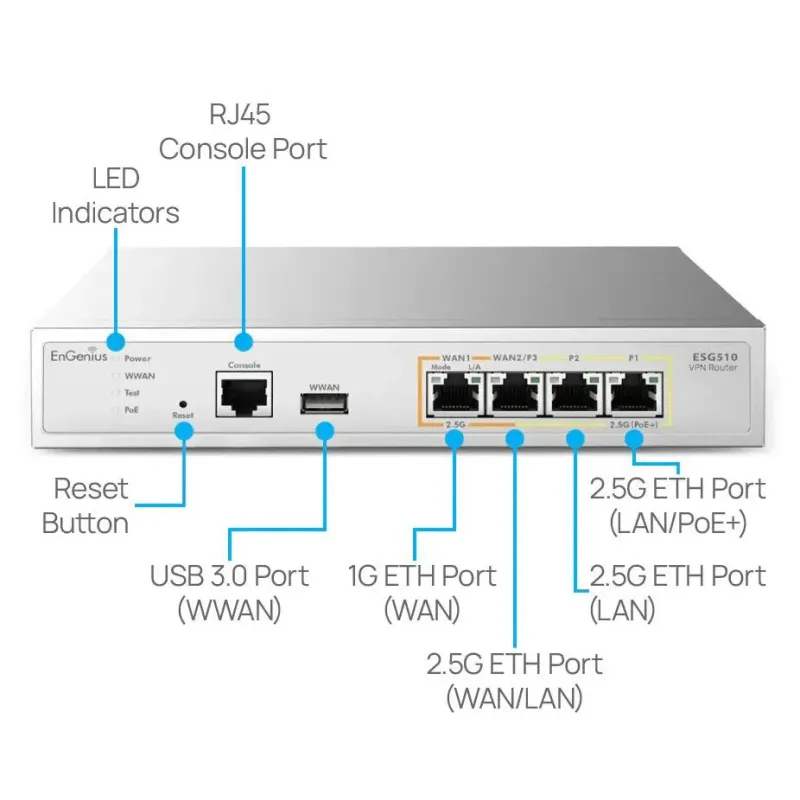

| I/O Interfaces | 1 x RJ-45 console/1 x USB 3.0 |
| Security | TPM |
Network & Security |
| Firewall (SPI throughput) | 6.8G |
| VPN Throughput | 1.5G |
| Max. Concurrent VPN Tunnels | 300 |
| Max. Concurrent VPN Users | 380 |
| Max. TCP Concurrent Sessions | 1,250,000 |
| Max VLAN | 160 |
| Firewall Features | Stateful Packet Inspections
Policy Ruless
Port Forwardings
1:1 NATs
Allow Inbound Services
Layer 7 Application Firewall |

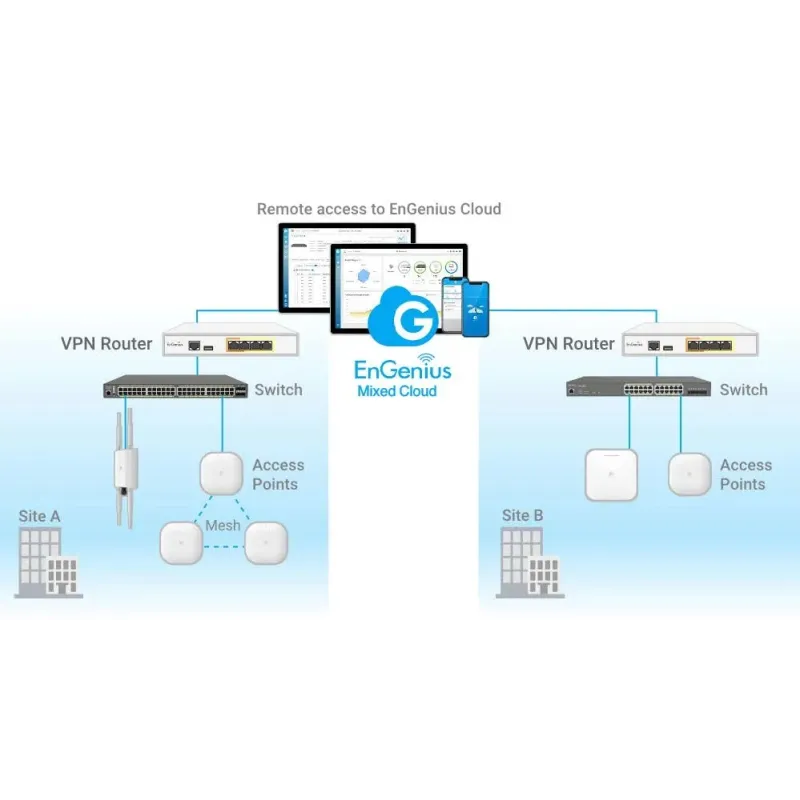

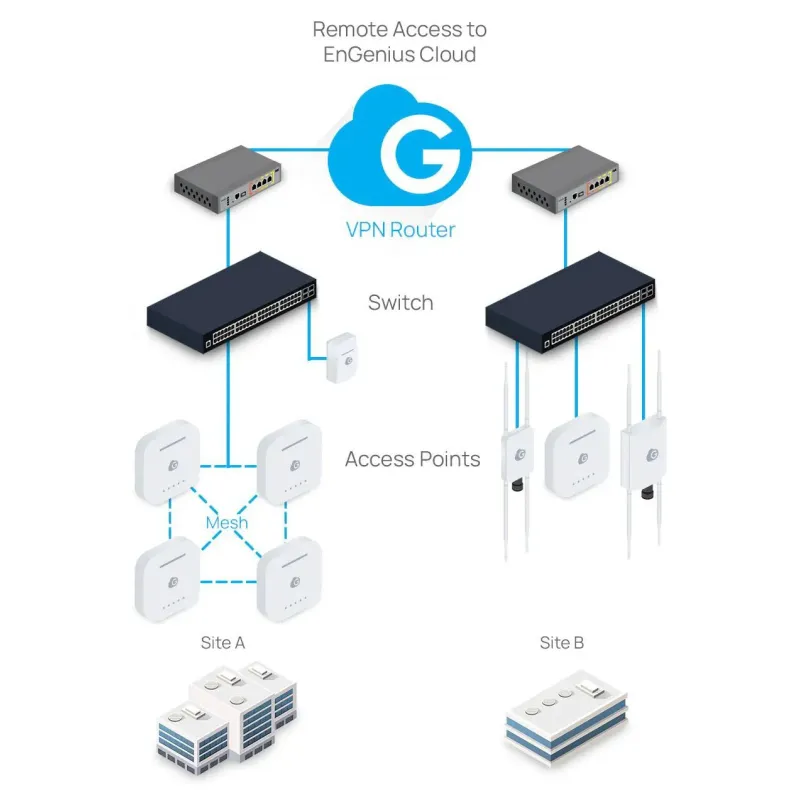

| Site-to-Site VPN | Mesh VPN/Hub-and-Spoke |
| Encryption | 3DES, AES (256/192/128-bit) |
| Authentication | MD5, SHA1, SHA2 (256-bit) |
| Key Management | IKEv1 (x-auth, mode-config)
IKEv2 (EAP, configuration payload) |
| VPN Features | Site-to-Site VPN
Client VPN(IPsec/SecuPoint SSL)
Policy-based VPN
IPSec NAT traversal (NAT-T)
Dead Peer Detection (DPD)
Auto-VPN Connection
Auto NAT traversal |

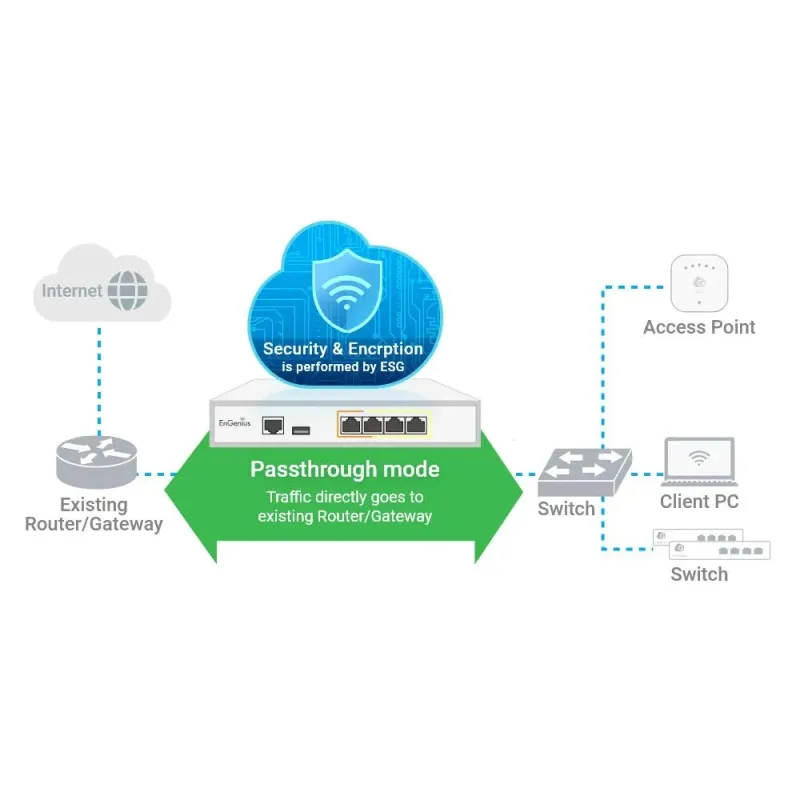

| Operation Mode | Routed/Passthrough |
| Multiple WANs | Dual |
| Bandwidth Limit | Per client/Per Interface |
| Traffic Load Balancing | WAN load balancing with WRR |
| Networking Features | Static Route
Multiple WANs
USB Cellular
User Authentication
PPPoE
VLAN Tagging
Captive Portal
Custom Splash Page
Bandwidth Limit
Traffic Load Balancing
DHCP client/server/relay
Dynamic DNS support
Policy Based Routing |
Environment & Physical |
| Power | 54V/1.2A |
| Operation Temperature | 0°C to 40°C |
| Humidity (non-condensing) | 5 to 95% non-condensing |
Dimensions & Weight |
| Dimensions | 210 x 179.5 x 35 mm |
| Weight | |
| Regulatory Compliance | FCC Part 15 (Class B) IC CE EMC CB UL |
รับประกัน |
รับประกัน | 3 ปี |
