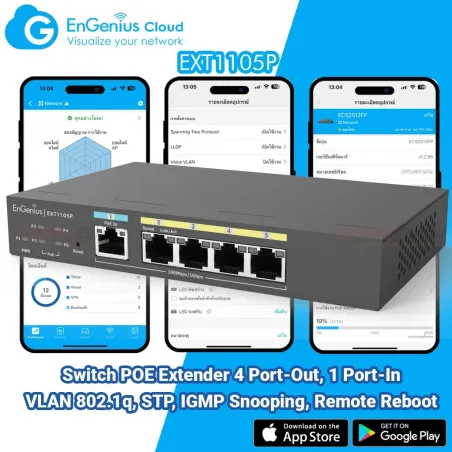

EnGenius EXT1105P L2-Cloud Managed POE Switch Extender ขยายระยะสาย Lan พร้อมจ่ายไฟ POE, 4 Port-Out, 1 Port-In สูงสุด 60W ควบคุมการทำงานด้วย EnGenius Cloud
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
Switch Extender 4 PoE_EXT1105P Datasheet
Switch Extender 4 PoE_EXT1105P_QSG_EN
EnGenius Cloud Solution Brochure
การเลือกใช้ POE (Power Over Ethernet) แบบ Passive และ แบบมาตรฐาน 802.3af/at
EXT1105P Product Specification | |
Overview | EnGenius EXT1105P L2-Cloud Managed POE Switch Extender ขยายระยะสาย Lan พร้อมจ่ายไฟ POE, 4 Port-Out, 1 Port-In ควบคุมการทำงานด้วย EnGenius Cloud |
Technical Specifications | |
| Port Standards | 802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet |
| Network Ports | 5×10/100/1000 Mbps Ports |
| Switching Capacity | 10Gbps |
| Flash Memory | 32 MB |
| PoE Capable Ports | Ports 2- 5 (802.3 af/at) |
| Total PoE Budget | Power Input: 802.3at Type 2(30W); Power Budget: up to 15W Power Input: 802.3bt Type 3(60W); Power Budget: up to 40W Power Input: 802.3bt Type 4(90W); Power Budget: up to 60W |
| Power Source | PoE PD Recommend EnGenius PoE adapters (EPA5060GBT, EPA5090GBT) |
Physical Interface | |
| System Indicators | Power LED PoE LED |
| Port Indicators | Link/Activity/Speed (per Ethernet port) |
L2 Features | |
| Network Management | EnGenius Cloud Local Web GUI |
| MAC Address Table | 8k |
| Jumbo frame size | 10k |
| Multicast Group | Max 8 groups |
| MLD Snooping | MLD Snooping: v1 |
QoS Trust Mode | Cos/802.1p DSCP CoS/802.1p-DSCP |
| Bandwidth Control | Port-based bandwidth control (Ingress/Egress) |
| Web Graphical User Interface (GUI) | LSP(Local status page) |
| System Time | Time Setting/Daylight saving |
| Web Graphical User Interface (GUI) | LSP(Local status page) |
| Common L2 Features | 802.1D Spanning Tree 802.1w Rapid Spanning Tree 802.1S Rapid Spanning Tree Loopback Detection Multicast Filitering IGMP Snooping 802.1Q VLAN tagging 802.3x flow control 802.3ad Link Aggregation IPv4 DHCP Relay IPv4 DHCP Snooping IPv4 DHCP Snooping Source MAC Address Check-up ARP Packet Validation (additional validation checks) Voice VLAN Port-based VLAN CoS Mapping 802. 1X Radius Authentication Protocol IPv4 Settings/ IPv6 Settings IEEE 802. 3az Energy Efficeient Ethernet (EEE) Command Line Interface (CLI) SSH Server Telnet Server TFTP Client Configuration Upgrade/ Backup Simple Network Time Protocol (SNTP) SYSLOG |
Environmental & Physical | |
| Temperature Range | Operating: 32°F to 122°F (0°C to 50°C) |
| Humidity (Non-Condensing) | 5% – 95% |
| Dimensions & Weight | Weight: 450G Length: 6.69” (170 mm) Width: 4.13” (105 mm) Height: 1.06” (27 mm) |
รับประกัน | |
| ประกัน | 5 ปี |
