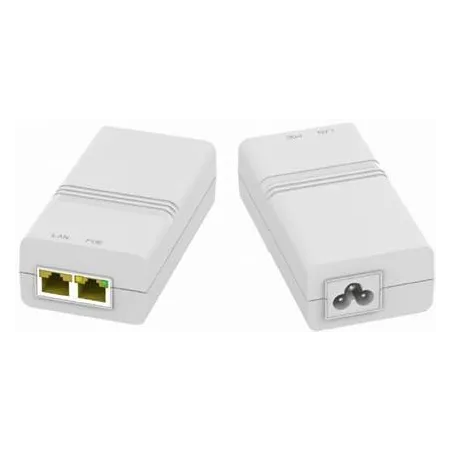

EWPAM1HPOE H3C POE Injector 802.3at POE+ 55VDC 30W Port Gigabit

Product Specification

Overview

H3C EWPAM1HPOE POE Injector 802.3at POE+ 55VDC 30W Port Gigabit สำหรับจ่ายไฟให้กับอุปกรณ์ Network, Access Point, IP-Camera ที่ใช้ POE มาตรฐาน 802.3af/at, Port Lan ความเร็ว Gigabit

Dimensions(L,W,H)

107.3mm X 56.0mm X 34.5mm

Weight

157g

AC Power Cord

80cm, deliver according to country or area

Input

100-240Vac, 1.0A, 50/60Hz

POE Output

30.25W, 55V±2% @0.55A

Power Pins

4, 5 (+) and 7, 8 (-)

Connectors

Shielded RJ-45, EIA 568A and 568B

Data Rates

100/1000/2500Mbps

Operating Temperature

-10℃ to 45℃

Operating Humidity

10% to 90%, non-condensation

Storage Temperature

-40℃ to 85℃

Reliability

MTBF: 200,000 hrs @ 25ºC

Operating Altitude

Up to 5000 meters

Surge Protection (both PoE port and Power port)

EN61000-4-5 Perfomance B
Common Mode 4KV
Difference Mode 2KV

Weather Rating

IP41

Inrush Current

30A MAX, at 115Vac, Cold Start
60A MAX, at 230Vac, Cold Start

Average active efficiency

≥85% （230Vac）

No-load power consumption

0.5W

Output Ripple

<200mV

AC Connector

IEC-320 C6

Certifications

CE, CB, FCC, CCC

รับประกัน

1 ปี
