H3C Magic BX54 Wireless Router Installation Quick Start
H3C Magic BX54 Wireless Router Datasheet
H3C Magic BX54 Quick Start Video
Product Specification |
Overview | H3C Magic BX45 Next-Gen Gigabit Wi-Fi6 4x4-MIMO 5.4Gbps 160MHz Wireless Router พร้อม 4 Port Lan Gigabit เสาอากาศ 4 ต้น, รองรับ Mesh Wi-Fi |
Hardware |
| Fixed interface | Four 10/100/1000Base-T Ethernet port
Independent reset key, function keys (Mesh, wireless optimization) |
| Antenna | 4 built-in high gain omnidirectional antennas (2.4 GHz 3 dBi & 5 GHz 5dBi) |
| indicator light | Front LED: system status indicator
Rear LED: 1 WAN port status indicator, 3 LAN port status indicators |
| Memory | 512 MB |
| CPU | Qualcomm Dual core1.0GHz |
| Dimensions (W×D×H) | 95mm x 95mm x 226mm |
| power consumption | 12W - 2A |

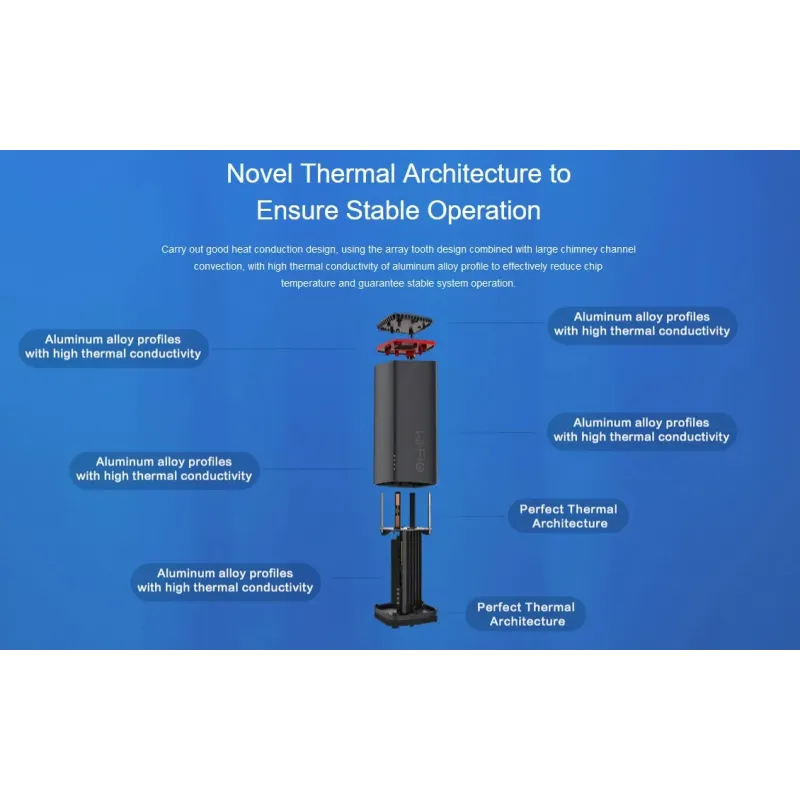

| Cooling method | Natural cooling |
Wireless |
| wireless protocol | 2.4GHz: 802.11n/g/b
5GHz: 802.11ax/ac/n/a |
| spatial flow | 2.4GHz 2x2 MIMO
5GHz 4x4 MIMO |
| wireless bandwidth | 2.4G HT20/HT40
5G HT20/HT40/HT80 |
| wireless rate | Dual-frequency concurrency 5,378 Mbps 2.4 GHz: 574 Mbps & 5 GHz: 4,804 Mbps |
| wireless roaming | Support IEEE 802.11k/v |
| MU-MIMO | Upstream and downstream MU-MIMO |
Software |
| Internet access | Routing Mode: DHCP/PPPoE/Static IP
Bridge Mode: Wired Repeater/Wireless Repeater |

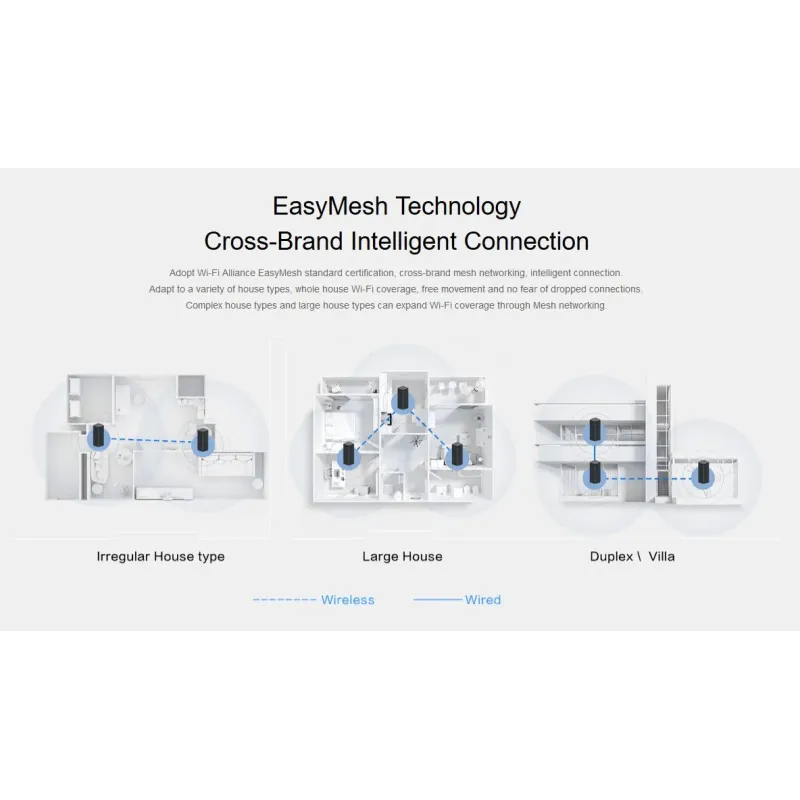

| EasyMesh | support |
| IPv6 | support |
| IPTV | support |
| security features | WPA-PSK/WPA2-PSK//WPA3 encryption
Anti-Wi-Fi squatting/anti-attack
Firewall, DMZ, DoS attacks |
| network management | Guest Wi-Fi, access allow list/deny list, parental controls based on multiple periods, IP-based traffic control, Wi-Fi timing switch |
| Special feature | Qos traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP, DynDNS), VPN(PPTP Client,L2TP Client) |
| management style | Support for H3C Magic APP (iOS, Android), Web |
| Troubleshooting | Link detection
Internet diagnosis |
Working Environment |
| Operating temperature | 0℃～40℃ |
| storage humidity | 10%～90% RH non-condensing |
Package |
| packing list | Integrated machine
Quick Start Guide
Power Adapter
Networking cable: Cat 5e cable |
รับประกัน | ศูนย์ H3C Thailand 3 ปี |
รายละเอียดสินค้า
50 รายการ
ข้อมูลสินค้า
- ลักษณะงาน Wireless
- กระจายสัญญาณ WIFI
- ความเร็ว มาตรฐาน WIFI
- WIFI-6 (ax) 1.7Gbps+
- ย่านความถี่
- Dual-Band 2.4/5GHz
- Mode Repeate/WDS/MESH
- MESH
