H3C Magic NX15 Next-Gen Gigabit Wi-Fi6 Speed 1500Mbps Wireless Router พร้อม 4 Port Lan Gigabit เสาอากาศ 4 ต้น, รองรับ Mesh Wi-Fi
ตัวแทนจำหน่าย H3C อย่างเป็นทางการ
มีราคาพิเศษสำหรับ SI และ ทีมติดตั้ง
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
เอกสารอ้างอิงเฉพาะ
H3C Magic NX15 Wireless Router Installation Quick Start
H3C Magic NX15 Wireless Router Datasheet
Product Specification | |
Overview | H3C Magic NX15 Next-Gen Gigabit Wi-Fi6 Speed 1500Mbps Wireless Router พร้อม 4 Port Lan Gigabit เสาอากาศ 4 ต้น, Mesh Wi-Fi |
Hardware | |
Port | 4 × 10/100/1000BASE-T Ethernet ports |
Antenna | 4 × external 5 dBi omnidirectional antennas |
LED | System status LED on the rear |
| Dimensions (H × W × D) | 180 × 195 × 57.3 mm (7.09 × 7.68 × 2.26 in) |
Power consumption | ≤ 12 W |
Cooling | Passive cooling |
Certification | CE WEEE RoHS |
Wireless | |
| Wireless protocol | 2.4GHz: 802.11n/g/b 5GHz: 802.11ax/ac/n/a |
| Spatial streams | 2.4GHz 2×2 MIMO 5GHz 2×2 MIMO |
| Wireless bandwidth | 2.4G HT20/HT40 5G HT20/HT40/HT80 |
Wireless rate | Simultaneous dual-band: 1501 Mbps, including 300Mbps on the 2.4GHz band and 1201 Mbps on the5GHz band. |
Wireless roaming | IEEE 802.11k/v |
MU-MIMO | Upstream and downstream MU-MIMO |
Software | |
Internet connection | Routing mode: DHCP/PPPoE/static IP Bridge mode: Wired repeating/wireless repeating |
Mesh | Support |
IPv6 | Support |
Security | WPA3, anti-piggybacking, firewall, DMZ |
Network management | Guest Wi-Fi, access allowlist and denylist, parental control at multiple time ranges, IP-based traffic control, scheduled Wi-Fi on/off |
Special features | QoS traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP,DynDNS), VPN(PPTP Client,L2TP Client) |
Management method | H3C Magic APP management (iOS, Android), Web management |
| Fault diagnosis | Link detection Internet access diagnosis |
Operating environment | |
Operating temperature | 0°C to 40°C (32°F to 104°F) |
Storage humidity | 10% to 90% RH, noncondensing |
Package | |
Packing list | Integrated machine Power adapter Networking cable Installation quick star |
รับประกัน | ศูนย์ H3C Thailand 3 ปี |
The 5GHz band supports Wi-Fi 6, which provides a 40% increase in wireless speed compared to the AC1200
The signal field strength is fuller and the transmission performance is more stable.

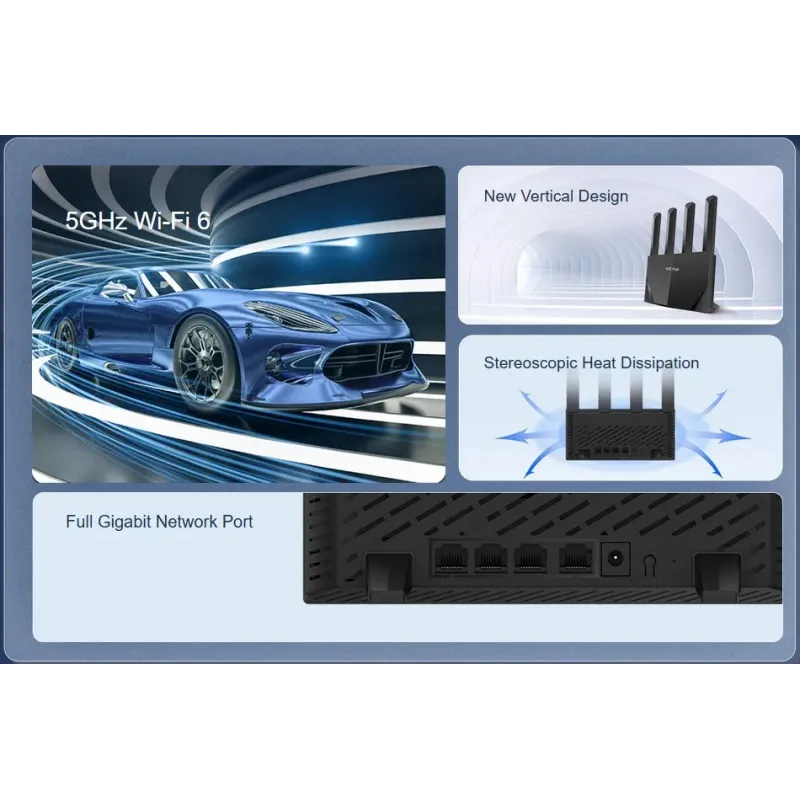

Adopting “I” design, the antenna is creatively adjusted to 180° compared to the traditional 90° “L”, which increases the distance between the antenna and the metal PCB board to reduce the possibility of signal attenuation and effectively improve the signal transmission efficiency
Improve cooling efficiency by adopting three-dimensional transparent cooling design and back overhang. With a large metal heat sink, effectively improving the cooling efficiency of the machine to ensure stable operation
Adapt to a variety of house types Whole-house Wi-Fi coverage Freedom of movement without fear of dropping connections Wi-Fi coverage of complex house types and large house types can be expanded through mesh networking
Internet Access for Peace of Mind Multiple functions to keep your private network security, including Access allowlist/denylist, Guest Wi-Fi, Parental control
Cooperate with octoScope, Spirent, Ixia and other international authoritative test instrument manufacturers Simulate various home actual scenarios and extreme links Ensure that the router operates stably under different conditions and environments.
