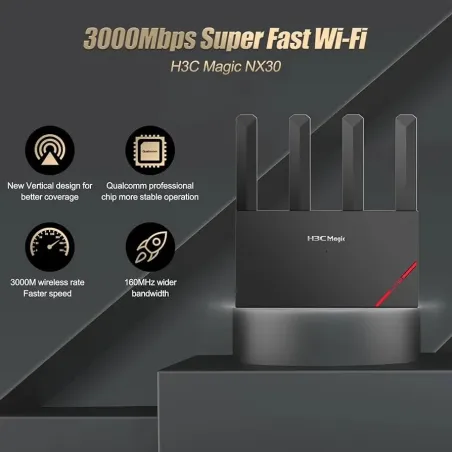

H3C Magic NX30 Next-Gen Gigabit Wi-Fi6 Speed 3000Mbps 160MHz Wireless Router พร้อม 4 Port Lan Gigabit เสาอากาศ 4 ต้น, รองรับ Mesh Wi-Fi
ตัวแทนจำหน่าย H3C อย่างเป็นทางการ
มีราคาพิเศษสำหรับ SI และ ทีมติดตั้ง
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
เอกสารอ้างอิงเฉพาะ
H3C Magic NX30 Wireless Router Installation Quick Start
H3C Magic NX30 Wireless Router Datasheet
Product Specification | |
Overview | H3C Magic NX30 Next-Gen Gigabit Wi-Fi6 Speed 3000Mbps 160MHz Wireless Router พร้อม 4 Port Lan Gigabit เสาอากาศ 4 ต้น, รองรับ Mesh Wi-Fi |
Hardware | |
Port | 4 × 10/100/1000BASE-T Ethernet ports |
Antenna | 4 × external 5 dBi omnidirectional antennas |
CPU | Dual-core 1.0 GHz |
LED | System status LED on the rear |
| Dimensions (H × W × D) | 210mm x222mm x 64mm |
Power consumption | ≤ 12 W |
Cooling | Passive cooling |
Certification | CE WEEE RoHS |
Wireless | |
| Wireless protocol | 2.4 GHz: 802.11ax/n/g/b 5 GHz: 802.11ax/ac/n/a |
| Spatial streams | 2.4GHz 2×2 MIMO 5GHz 2×2 MIMO |
| Wireless bandwidth | 2.4G HT20/HT40 5G HT20/HT40/HT80/HT160 |
Wireless rate | Dual-frequency concurrency 2,976 Mbps 2.4 GHz: 574 Mbps & 5 GHz: 2,402 Mbps |
Wireless roaming | IEEE 802.11k/v |
MU-MIMO | Upstream and downstream MU-MIMO |
Software | |
Internet connection | Routing mode: DHCP/PPPoE/static IP Bridge mode: Wired repeating/wireless repeating |
Mesh | Support |
IPv6 | Support |
Security | WPA3 encryption Anti-Wi-Fi squatting/anti-attack Firewall, DMZ, DoS attacks |
Network management | Guest Wi-Fi, access allowlist/denylist, parental controls based on multiple periods, IP-based traffic control, Wi-Fi timing switch |
Special features | Qos traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP, DynDNS), VPN(PPTP Client,L2TP Client) |
Management method | H3C Magic APP management (iOS, Android), Web management |
| Fault diagnosis | Link detection Internet access diagnosis |
Operating environment | |
Operating temperature | 0°C to 40°C (32°F to 104°F) |
Storage humidity | 10% to 90% RH, noncondensing |
Package | |
Packing list | Integrated machine Power adapter Networking cable Installation quick star |
รับประกัน | ศูนย์ H3C Thailand 3 ปี |
