H3C Magic NX54 Wireless Router Installation Quick Start
H3C Magic NX54 Wireless Router Datasheet
H3C Magic NX54 Quick Start Video
Product Specification Overview

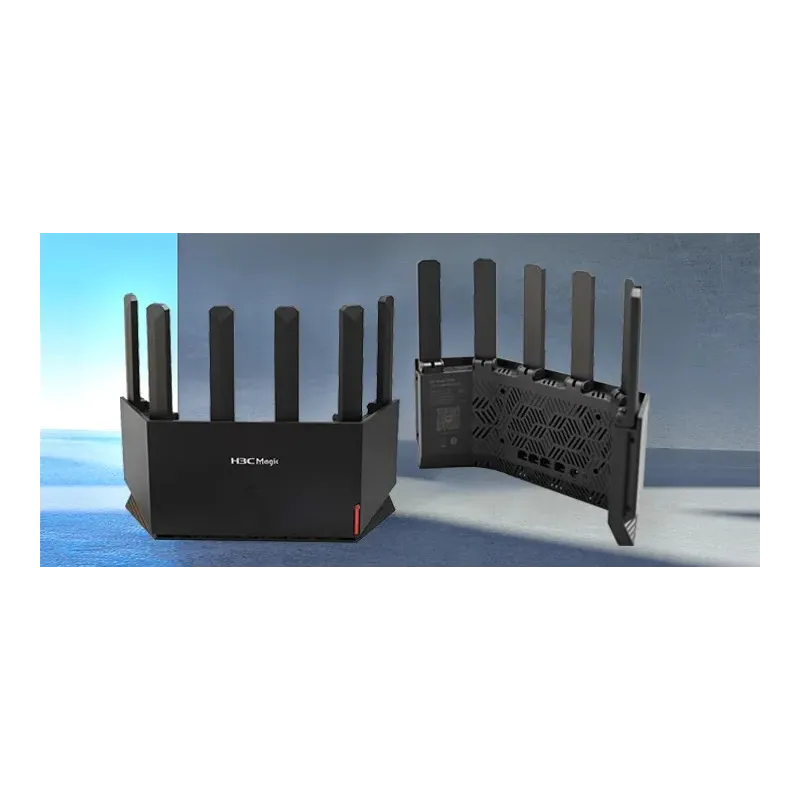

H3C Magic NX45 Next-Gen Gigabit Wi-Fi6 Speed 3000Mbps 160MHz Wireless Router พร้อม 4 Port Lan Gigabit เสาอากาศ 4 ต้น, รองรับ Mesh Wi-Fi
Hardware Fixed interface 4 10/100/1000Base-T Ethernet ports
Antenna 6 external 5dBi high-gain omnidirectional antennas indicator light Rear LED: System Status Indicator DDR/FLASH 256MB/128MB CPU Qualcomm Dual core1.0GHz + 1*NPU Chipset IPQ5000 + QCN6102 + QCA8337 Dimensions (W×D×H) 286mm x 87mm x 234mm power consumption 12W - 1A Cooling method Natural cooling Product Standards YD/T 1096-2009 certified CQC certification
Wireless wireless protocol 2.4GHz: 802.11n/g/b
spatial flow 2.4GHz 2x2 MIMO
wireless bandwidth 2.4G HT20/HT40
wireless rate Dual-frequency concurrency 5,378 Mbps 2.4 GHz: 574 Mbps & 5 GHz: 4,804 Mbps
wireless roaming Support IEEE 802.11k/v MU-MIMO Upstream and downstream MU-MIMO Software Internet access Routing Mode: DHCP/PPPoE/Static IP
EasyMesh support IPv6 support IPTV support security features WPA3 encryption Anti-Wi-Fi squatting/anti-attack Firewall, DMZ, DoS attacks network management Qos traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP, DynDNS), VPN(PPTP Client,L2TP Client) Special feature UU game acceleration, Qos traffic shaping, broadband password retrieval, message fast forwarding engine, virtual server management style Support for H3C Magic APP (iOS, Android), Web Troubleshooting link detection
Online diagnosis
Smart Cloud Maintenance
Professional WeChat customer service
One-click upload of fault information
Working Environment Operating temperature 0℃～40℃ storage humidity 10%～90% RH non-condensing Package packing list Integrated machine Quick Start Guide Power Adapter Networking cable: Cat 5e cable
รับประกัน
ศูนย์ H3C Thailand 3 ปี
รายละเอียดสินค้า
สินค้ามีในสต็อค 20 รายการ
ข้อมูลสินค้า
ลักษณะงาน Wireless กระจายสัญญาณ WIFI ความเร็ว มาตรฐาน WIFI WIFI-6 (ax) 1.7Gbps+ Mode Repeate/WDS/MESH MESH
