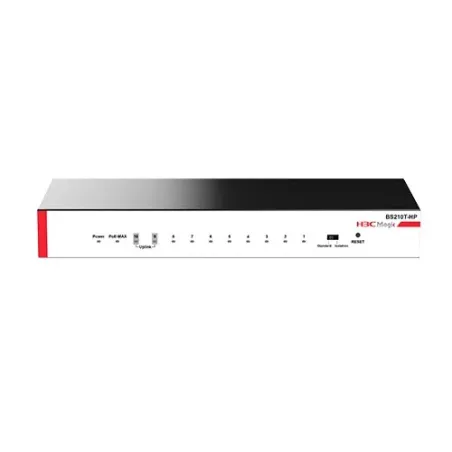

H3C Magic Switch BS210T-HP-US 10 Ports Gigabit POE Switch 110W

Overview

H3C Magic Switch BS210T-P-HP ขนาด 10 Ports ความเร็ว Gigabit จ่ายไฟ POE 8 Port มาตรฐาน 802.3at สูงสุด 110W เหมาะสำหรับงาน CCTV

Dimensions (H × W × D)

27 × 205 × 85 mm (1.06 × 8.07 × 3.35 in)

Ports

10 × 10/100/1000BASE-T copper ports

MAC address entries

4K

Switching capacity

20 Gbps

Forwarding capacity

14.9 Mpps

Packet buffering

2 Mbit

Switching mode

Store-and-forward switching

PoE+

PoE+ supported
Supports PoE Power up to 57 W for all PoE ports (4 PoE ports)
Supports PoE Power up to 30 W for each PoE port

Power

54 V DC, 2.2 A

Auto-MDI/MDIX

Yes

Cooling method

Natural cooling

Weight

≤ 0.2 kg (0.44 lb)

Operating temperature
Storage temperature

0°C to 40°C (32°F to 104°F)/–40°C to +70°C (–40°F to +158°F)

Storage/operating humidity

5% to 95% RH, noncondensing

Certifications

CE,RoHS

MTBF

> 50000 H

Installation method

Desktop-mount and wall-mount
