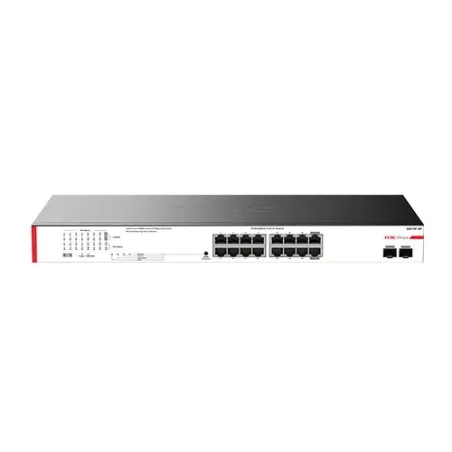

H3C Magic Switch BS218F-HP-US 18 Ports Gigabit POE Switch, 2 Port SFP, 225W

Overview

H3C Magic Switch BS218F-HP Gigabit POE Switch ขนาด 18 Ports ความเร็ว Gigabit, 2 Port SFP เหมาะสำหรับงาน CCTV

จ่ายไฟ POE 16 Port มาตรฐาน 802.3at สูงสุด 225W

Dimensions (H × W × D)

44 × 440 × 210mm (1.73 × 17.32 × 8.27 in)

Ports

16 × 10/100/1000BASE-T copper ports (2 uplink ports)
2 × 1000BASE-X SFP ports (uplink ports)

Operating mode

Standard
Isolation
Aggregation
Clone

MAC address entries

8K

Switching capacity

36 Gbps

Forwarding capacity

26.8 Mpps

Packet buffering

4 Mbit

Switching mode

Store-and-forward switching

PoE+

PoE+ supported
Supports PoE Power up to 225 W for all PoE ports(16 PoE ports)
Supports PoE Power up to 30 W for each PoE port

Power

100 to 240V AC

Auto-MDI/MDIX

Yes

Cooling method

Natural cooling

Weight

≤ 0.2 kg (0.44 lb)

Operating temperature
Storage temperature

0°C to 40°C (32°F to 104°F)/–40°C to +70°C (–40°F to +158°F)

Storage/operating humidity

5% to 95% RH, noncondensing

Certifications

CE,RoHS

MTBF

> 50000 H

Installation method

Desktop-mount and wall-mount
