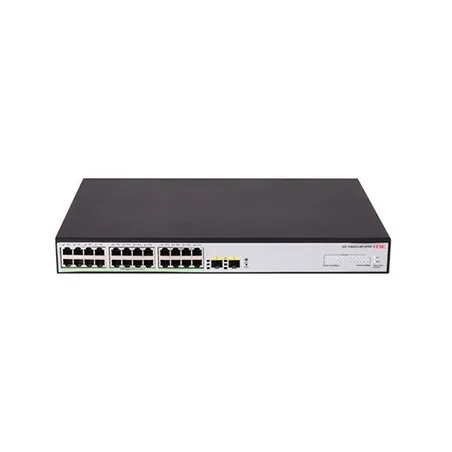

S1600V2-26P-HPWR H3C L2-Managed POE Switch 24 Port Gigabit, 2 SFP, POE 370W

Product Specification

Overview

H3C S1600V2-26P-HPWR L2 Managed POE Switch 24 Port Gigabit,2 Port SFP Gigabit รองรับ VLAN 802.1q จ่ายไฟ POE 24 Port สูงสุด 370W เหมาะกับงาน CCTV

Feature

S1600V2-26P-HPWR

Switching capacity

52Gbps

Forwarding capacity

38.688Mpps

Dimensions (W × D × H)

440×260×44 mm

Weight

≤ 3.7 kg

Networking interface

24GE(poe+)+2*SFP

Port Surge

6KV

Input voltage

AC: The rated voltage range is 100V to 240V, 50/60Hz.

Total power consumption

MIN: AC: 10.6W MAX: AC: 439.2W

Fan number

2

MTBF(Year)

88.25

MTTR(Hour)

1

Operating temperature

-5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km)

Storage temperature

-40℃ ~ 70℃

Relative humidity (non-condensing)

5% RH to 95% RH, non-condensing

Feature

S1600V2 switch series

Broadcast/Multicast/Unicast storm suppression

Black hole MAC support
Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression

Traffic control

802.3x traffic control and half-duplex backpressure

MAC address table

Static MAC address
Blackhole MAC address

VLAN

Port-based VLAN

DHCP

DHCP Client
DHCP snooping

Forwarding

Wire-speed/Line-rate architecture

Mirroring

Port mirroring

Management and maintenance

Loopback-detection
Web management

MAC address entries

16K

Total PoE power capacity

PoE Ports Quantity

15.4W (802.3af): 24 Port
30W (802.3at): 12 Port

รับประกัน

ประกันศูนย์ H3C Thailand 3 ปี
