Product Specification
|
|
Overview
|

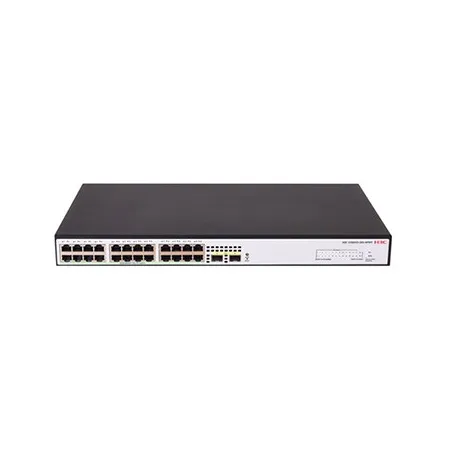

H3C S1600V2-26S-HPWR L2 Managed POE Switch 24 Port Gigabit,2 Port SFP+ 10 Gigabit รองรับ VLAN 802.1q จ่ายไฟ POE 24 Port สูงสุด 370W เหมาะกับงาน CCTV
|
|
Feature
|
S1600V2-26S-HPWR
|
|
Switching capacity
|
52Gbps
|
|
Forwarding capacity
|
38.688Mpps
|
|
Dimensions (W × D × H)
|
440×260×44 mm
|
|
Weight
|
≤ 3.7 kg
|
|
Networking interface
|
24GE(poe+)+2*SFP
|
|
Port Surge
|
6KV
|
|
Input voltage
|
AC: The rated voltage range is 100V to 240V, 50/60Hz.
|
|
Total power consumption
|
MIN: AC: 10.6W MAX: AC: 439.2W
|
|
Fan number
|
2
|
|
MTBF(Year)
|
88.25
|
|
MTTR(Hour)
|
1
|
|
Operating temperature
|
-5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km)
|
|
Storage temperature
|
-40℃ ~ 70℃
|
|
Relative humidity (non-condensing)
|
5% RH to 95% RH, non-condensing
|
|
Feature
|
S1600V2 switch series
|
|
Broadcast/Multicast/Unicast storm suppression
|
Black hole MAC support
Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression
|
|
Traffic control
|
802.3x traffic control and half-duplex backpressure
|
|
MAC address table
|
Static MAC address
Blackhole MAC address
|
|
VLAN
|
Port-based VLAN
|
|
DHCP
|
DHCP Client
DHCP snooping
|
|
Forwarding
|
Wire-speed/Line-rate architecture
|
|
Mirroring
|
Port mirroring
|
|
Management and maintenance
|
Loopback-detection
Web management
|
|
MAC address entries
|
16K
|
|
Total PoE power capacity
|
370W |
|
PoE Ports Quantity
|
15.4W (802.3af): 24 Port
30W (802.3at): 12 Port
|
|
รับประกัน
|
3 ปี
|
