Product Specification |
|
Overview |

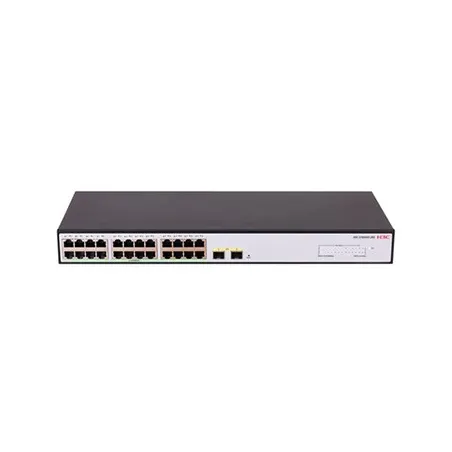

H3C S1600V2-26P L2 Managed Switch 24 Port Gigabit,2 Port SFP+ ความเร็ว 10 Gigabit รองรับ VLAN 802.1q, DHCP snooping เหมาะกับงาน CCTV |
Feature |
S1600V2-26S |
Switching capacity |
88Gbps |
Forwarding capacity |
65.482Mpps |
Dimensions (W × D × H) |
440×160×44 mm |
Weight |
TBD |
Networking interface |
24GE+2*SFP+ |
Port Surge |
TBD |
Input voltage |
AC: The rated voltage range is 100V to 240V, 50/60Hz. |
Total power consumption |
TBD |
Fan number |
TBD |
MTBF(Year) |
TBD |
MTTR(Hour) |
TBD |
Operating temperature |
-5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) |
Storage temperature |
-40℃ ~ 70℃ |
Relative humidity (non-condensing) |
5% RH to 95% RH, non-condensing |
Feature |
S1600V2 switch series |
Broadcast/Multicast/Unicast storm suppression |
Black hole MAC support |
Traffic control |
802.3x traffic control and half-duplex backpressure |
MAC address table |
Static MAC address |
VLAN |
Port-based VLAN |
DHCP |
DHCP Client |
Forwarding |
Wire-speed/Line-rate architecture |
Mirroring |
Port mirroring |
Management and maintenance |
Loopback-detection |
MAC address entries |
16K |
Static Mac address |
32 |
VLAN table |
16 |
QOS forward queues |
8 |
Jumbo frame length |
10000 |
Total PoE power capacity |
|
PoE Ports Quantity |
|
รับประกัน |
3 ปี |
