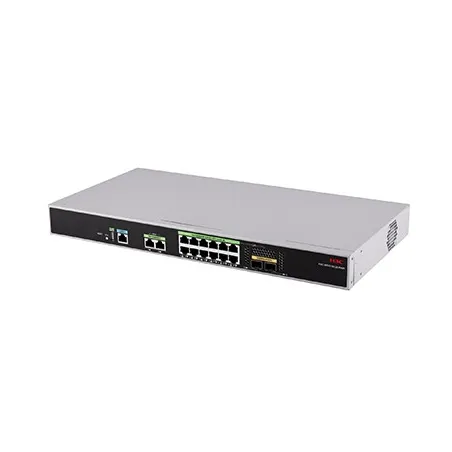

WSG1812X-PWR H3C Wireless Integrated Multi-Service Gateway

Overview

H3C WSG1812X-PWR Wireless Integrated Multi-Service Gateway อุปกรณ์ All-In-One Gateway Wireless Controller มาพร้อม 32 AP License, รองรับ 802.1x authentication, L2-L3 Roaming 802.11k/v/r, RF management, AP Load Sharing, Firewall, Antivirus, VPN, Multicast

Item

WSG1812X-PWR

Dimensions (WxDxH)

440*220*43.6mm

Weight

2.9kg

รับประกัน

Wireless throughput

4Gbps

Port

LAN：2*SFP Plus + 12*PoE+
WAN：2 GE
+ 1*USB

Power supplies

100V AC~240V AC:50/60Hz

Operating and storage temperature

0℃~45℃/-40℃~70℃

Operating and storage relative humidity

5%~95%

Safety Compliance

UL 60950-1
CAN/CSA C22.2 No 60950-1
IEC 60950-1
EN 60950-1/A11
AS/NZS 60950
EN 60825-1
EN 60825-2
EN60601-1-2
FDA 21 CFR Subchapter J

EMC

ETSI EN 300 386 V1.3.3:2005
EN 55024: 1998+ A1: 2001 + A2: 2003
EN 55022 :2006
VCCI V-3:2007
ICES-003:2004
EN 61000-3-2:2000+A1:2001+A2:2005
EN 61000-3-3:1995+A1:2001+A2:2005
AS/NZS CISPR 22:2004
FCC PART 15:2005
GB 9254:1998
GB/T 17618:1998

MTBF

≥50000hours

AP license by default

Item

Feature

WSG1812X-PWR

Basic functions

Number of managed APs by default

32 ordinary AP or 64 wall-plate AP

Maximum number of managed APs

64

Maximum users of authentication

1024

802.11MAC

802.11 Protocols

√

The number of SSID of whole machine

32

SSID hiding

√

11G protection

√

11n only

√

Use number limit

Supported: SSID based, per RF based

Keepalive

√

Idle

√

Multi-country code assignment

√

Wireless user isolation

Supported:
VLAN based wireless users 2-layer isolation
SSID based wireless user 2-layer isolation

20MHz/40MHz auto-switch in 40MHz mode

√

Local forwarding

Local forwarding based on SSID+VLAN

CAPWAP

Automatic AP registration

√

AC discovery (DHCP option43, DNS)

√

IPv6 tunnel

√

Clock synchronization

√

Jumbo frame forwarding

√

Assign basic AP network parameter through AC

Supported: Static IP, VLAN, connected AC address

L2/L3 connection between AP and AC

√

NAT traversal between AP and AC

√

Roaming

Intra-AC, Inter-AP L2 and L3 roaming

√

Inter-AC, Inter-AP L2 and L3 roaming

√

GW Features

NAT

√

PPPoE

√

DDNS

√

SSL VPN

√

IPSEC VPN

√

RIP

√

GRE

√

Access control

Open system, Shared-Key

√

WEP-64/128, dynamic WEP

√

WPA,WPA2,WPA3

√

TKIP

√

CCMP

√(11n recommended)

SSH v1.5/v2.0

√

Portal authentication

Supported: Remote Authentication, external server

Portal page redirection

Supported: SSID based, AP Portal page push

Portal by-pass Proxy

√

802.1x authentication

EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5, EAP-SIM, LEAP, EAP-FAST, EAP offload (TLS, PEAP only)

Local authentication

802.1X, Portal, MAC authentication

LDAP authentication

802.1X and Portal
EAP-GTC and EAP-TLS supported by 802.1X login

AP location-based user access control

√

Guest Access control

√

VIP channel

√

ARP attack detection

Supported: Wireless SAVI

SSID anti-spoofing

SSID + user name binding

AAA server selection based on SSID and domain

√

AAA server back up

√

Local AAA server for wireless user

√

TACACS+

√

QoS

Priority mapping

√

L2-L4 packet filtering and traffic classification

√

Rate limit

Supported with granularity of 8Kbps

802.11e/WMM

√

Access control based on user profile

√

Intelligent bandwidth limit (equal bandwidth share algorithm)

√

Intelligent bandwidth limit (user specific)

√

Intelligent bandwidth guarantee

Supported: Free flow for packets coming from every SSID When traffic is not congested, and guarantee a minimum bandwidth for each SSID when traffic is congested

QoS Optimization for SVP phone

√

CAC(Call Admission Control)

Supported: based on user number/bandwidth

End-to-end QoS

√

AP upload speed limit

√

RF management

Country code lock

√

Static channel and power configuration

√

Auto channel and power configuration

√

Auto transmission rate adjustment

√

Coverage hole detection and correction

√

Load balancing

Supported: based on traffic, user & frequency (dual-frequency supported)

Intelligent load balancing

√

AP load balancing group

Supported: auto-discovery and flexible setting

Security

Static blacklist

√

Dynamic blacklist

√

White list

√

Rogue AP detection

Supported: SSID based, BSSID, device OUI

Rouge AP countermeasure

√

Flooding attack detection

√

Spoof attack detection

√

Weak IV attack detection

√

WIPS/WIDS

Supported: 7-layer mobile security

Layer 2 protocol

ARP (gratuitous ARP)

√

802.1p

√

802.1q

√ (Maximum VLANs: 4094)

802.1x

√

IP protocol

IPv4 protocol

√

Native IPv6

√

IPv6 SAVI

√

IPv6 Portal

√

Multicast

MLD Snooping

√

IGMP Snooping

√

Multicast group

256

Multicast to Unicast (IPv4, IPv6)

Supported: Set unicast limit based on operating environment

Redundancy

1+1 failover between ACs

√

Intelligent AP sharing among ACs

√

Remote AP

√

Management and deployment

Network management

WEB, SNMP v1/v2/v3, RMON

Network deployment

WEB, CLI, Telnet, FTP

Green features

Scheduled shutdown of AP RF interface

√

Scheduled shutdown of wireless service

√

Per-packet power adjust­ment (PPC)

√

WLAN

Application

RF Ping

√

Remote probe analysis

√

Packet forwarding fairness adjustment

√

802.11n packet forwarding suppression

√

Access based traffic shaping

√

Co-AP channel sharing

√

Co-AP channel reuse

√

RF interface transmission rate adjustment algorithm

√

Drop wireless packet with weak signal

√

Disable user access with weak signal

√

Disable multicast packet caching

√

Status blink(limited to some AP)

√

New added features

Policy forwarding

√

VLAN pool

√

Bonjour gateway

√

802.11w

√

802.11k,v,r

√

Hotspot2.0 (802.11u)

√

NAT

√

VPN

√

Firewall

Attack protection against malicious attacks, such as land, smurf, fraggle, ping of death, teardrop, IP spoofing, IP fragmentation, ARP spoofing, reverse ARP lookup, invalid TCP flag, large ICMP packet, address/port scanning, SYN flood, ICMP flood, UDP flood, and DNS query flood

√

ASPF application layer packet filtering

√

Basic and advanced ACLs

√

Time range-based ACL

√

User-based and application-based access control

√

Static and dynamic blacklist function

√

MAC-IP binding

√

MAC-based ACL

√

Antivirus

Signature-based virus detection

√

Manual and automatic upgrade for the signature database

√

Stream-based processing

√

Virus detection based on HTTP, FTP, SMTP, and POP3

√

Virus types include Backdoor, Email-Worm, IM-Worm, P2P-Worm, Trojan, AdWare, and Virus

√

Virus logs and reports

√

Signature-based virus detection

√

Deep intrusion prevention

Prevention against common attacks such as hacker, worm/virus, Trojan, malicious code, spyware/adware, DoS/DDoS, buffer overflow, SQL injection, and IDS/IPS bypass

√

Attack signature categories (based on attack types and target systems) and severity levels (including high, medium, low, and notification)

√

Manual and automatic upgrade for the attack signature database (TFTP and HTTP).

√

P2P/IM traffic identification and control

√

Email/webpage/application layer filtering

Email filtering

√

SMTP email address filtering

√

Email subject/content/attachment filtering

√

Webpage filtering

√

HTTP URL/content filtering

√

Java blocking

√

ActiveX blocking

√

SQL injection attack prevention

√

VPN

L2TP VPN

√

IPSec VPN

√

GRE VPN

√

SSL VPN

√

NAT

Many-to-one NAT, which maps multiple internal addresses to one public address

√

Many-to-many NAT, which maps multiple internal addresses to multiple public addresses

√

One-to-one NAT, which maps one internal address to one public address

√

NAT of both source address and destination address

√

External hosts access to internal servers

√

Internal address to public interface address mapping

√

NAT support for DNS

√

Setting effective period for NAT

√

NAT ALGs for NAT ALG, including DNS, FTP, H.323, ILS, MSN, NBT, PPTP, and SIP

√
