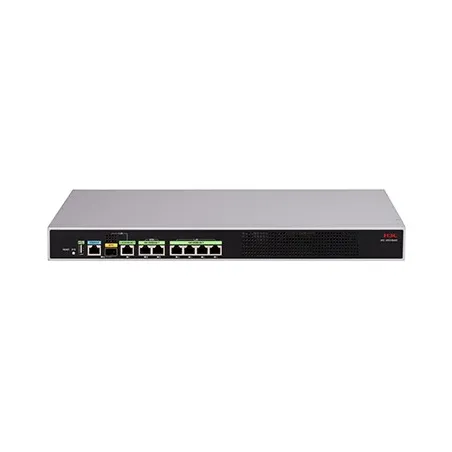

Overview | H3C WSG1840X Wireless Integrated Multi-Service Gateway อุปกรณ์ All-In-One Gateway Wireless Controller มาพร้อม 64 AP License, รองรับ 802.1x authentication, L2-L3 Roaming 802.11k/v/r, RF management, AP Load Sharing, Firewall, Antivirus, VPN, Multicast |
Item | WSG1840X |
Dimensions (WxDxH) | 440*165*43.6mm |
Weight | 1.8kg |
รับประกัน | ประกันศูนย์ H3C Thailand 5 ปี |
Wireless throughput | 4Gbps |
Port | LAN：1*SFP Plus + 4*GE + 1*5GE
WAN：2 GE
+ 1*USB |
Power supplies | 100V AC~240V AC:50/60Hz |
Operating and storage temperature | 0℃~45℃/-40℃~70℃ |
Operating and storage relative humidity | 5%~95% |
Safety Compliance | UL 60950-1
CAN/CSA C22.2 No 60950-1
IEC 60950-1
EN 60950-1/A11
AS/NZS 60950
EN 60825-1
EN 60825-2
EN60601-1-2
FDA 21 CFR Subchapter J |
EMC | ETSI EN 300 386 V1.3.3:2005
EN 55024: 1998+ A1: 2001 + A2: 2003
EN 55022 :2006
VCCI V-3:2007
ICES-003:2004
EN 61000-3-2:2000+A1:2001+A2:2005
EN 61000-3-3:1995+A1:2001+A2:2005
AS/NZS CISPR 22:2004
FCC PART 15:2005
GB 9254:1998
GB/T 17618:1998 |
MTBF | ≥50000hours |
| All Inclusive AP License | |
AP license by default | 64 |
Item | Feature | WSG1808X-PWR |
Basic functions | Number of managed APs by default | 64 ordinary AP or 128 wall-plate AP |
Maximum number of managed APs | 128 |
Maximum users of authentication | 2048 |
802.11MAC | 802.11 Protocols | √ |
The number of SSID of whole machine | 128 |
SSID hiding | √ |
11G protection | √ |
11n only | √ |
Use number limit | Supported: SSID based, per RF based |
Keepalive | √ |
Idle | √ |
Multi-country code assignment | √ |
Wireless user isolation | Supported:
VLAN based wireless users 2-layer isolation
SSID based wireless user 2-layer isolation |
20MHz/40MHz auto-switch in 40MHz mode | √ |
Local forwarding | Local forwarding based on SSID+VLAN |
CAPWAP | Automatic AP registration | √ |
AC discovery (DHCP option43, DNS) | √ |
IPv6 tunnel | √ |
Clock synchronization | √ |
Jumbo frame forwarding | √ |
Assign basic AP network parameter through AC | Supported: Static IP, VLAN, connected AC address |
L2/L3 connection between AP and AC | √ |
NAT traversal between AP and AC | √ |
Roaming | Intra-AC, Inter-AP L2 and L3 roaming | √ |
Inter-AC, Inter-AP L2 and L3 roaming | √ |
GW Features | NAT | √ |
PPPoE | √ |
DDNS | √ |
SSL VPN | √ |
IPSEC VPN | √ |
RIP | √ |
GRE | √ |
Access control | Open system, Shared-Key | √ |
WEP-64/128, dynamic WEP | √ |
WPA,WPA2,WPA3 | √ |
TKIP | √ |
CCMP | √(11n recommended) |
SSH v1.5/v2.0 | √ |
Portal authentication | Supported: Remote Authentication, external server |
Portal page redirection | Supported: SSID based, AP Portal page push |
Portal by-pass Proxy | √ |
802.1x authentication | EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5, EAP-SIM, LEAP, EAP-FAST, EAP offload (TLS, PEAP only) |
Local authentication | 802.1X, Portal, MAC authentication |
LDAP authentication | 802.1X and Portal
EAP-GTC and EAP-TLS supported by 802.1X login |
AP location-based user access control | √ |
Guest Access control | √ |
VIP channel | √ |
ARP attack detection | Supported: Wireless SAVI |
SSID anti-spoofing | SSID + user name binding |
AAA server selection based on SSID and domain | √ |
AAA server back up | √ |
Local AAA server for wireless user | √ |
TACACS+ | √ |
QoS | Priority mapping | √ |
L2-L4 packet filtering and traffic classification | √ |
Rate limit | Supported with granularity of 8Kbps |
802.11e/WMM | √ |
Access control based on user profile | √ |
Intelligent bandwidth limit (equal bandwidth share algorithm) | √ |
Intelligent bandwidth limit (user specific) | √ |
Intelligent bandwidth guarantee | Supported: Free flow for packets coming from every SSID When traffic is not congested, and guarantee a minimum bandwidth for each SSID when traffic is congested |
QoS Optimization for SVP phone | √ |
CAC(Call Admission Control) | Supported: based on user number/bandwidth |
End-to-end QoS | √ |
AP upload speed limit | √ |
RF management | Country code lock | √ |
Static channel and power configuration | √ |
Auto channel and power configuration | √ |
Auto transmission rate adjustment | √ |
Coverage hole detection and correction | √ |
Load balancing | Supported: based on traffic, user & frequency (dual-frequency supported) |
Intelligent load balancing | √ |
AP load balancing group | Supported: auto-discovery and flexible setting |
Security | Static blacklist | √ |
Dynamic blacklist | √ |
White list | √ |
Rogue AP detection | Supported: SSID based, BSSID, device OUI |
Rouge AP countermeasure | √ |
Flooding attack detection | √ |
Spoof attack detection | √ |
Weak IV attack detection | √ |
WIPS/WIDS | Supported: 7-layer mobile security |
Layer 2 protocol | ARP (gratuitous ARP) | √ |
802.1p | √ |
802.1q | √ (Maximum VLANs: 4094) |
802.1x | √ |
IP protocol | IPv4 protocol | √ |
Native IPv6 | √ |
IPv6 SAVI | √ |
IPv6 Portal | √ |
Multicast | MLD Snooping | √ |
IGMP Snooping | √ |
Multicast group | 256 |
Multicast to Unicast (IPv4, IPv6) | Supported: Set unicast limit based on operating environment |
Redundancy | 1+1 failover between ACs | √ |
Intelligent AP sharing among ACs | √ |
Remote AP | √ |
Management and deployment | Network management | WEB, SNMP v1/v2/v3, RMON |
Network deployment | WEB, CLI, Telnet, FTP |
Green features | Scheduled shutdown of AP RF interface | √ |
Scheduled shutdown of wireless service | √ |
Per-packet power adjustment (PPC) | √ |
WLAN Application | RF Ping | √ |
Remote probe analysis | √ |
Packet forwarding fairness adjustment | √ |
802.11n packet forwarding suppression | √ |
Access based traffic shaping | √ |
Co-AP channel sharing | √ |
Co-AP channel reuse | √ |
RF interface transmission rate adjustment algorithm | √ |
Drop wireless packet with weak signal | √ |
Disable user access with weak signal | √ |
Disable multicast packet caching | √ |
Status blink(limited to some AP) | √ |
New added features | Policy forwarding | √ |
VLAN pool | √ |
Bonjour gateway | √ |
802.11w | √ |
802.11k,v,r | √ |
Hotspot2.0 (802.11u) | √ |
NAT | √ |
VPN | √ |
Firewall | Attack protection against malicious attacks, such as land, smurf, fraggle, ping of death, teardrop, IP spoofing, IP fragmentation, ARP spoofing, reverse ARP lookup, invalid TCP flag, large ICMP packet, address/port scanning, SYN flood, ICMP flood, UDP flood, and DNS query flood | √ |
ASPF application layer packet filtering | √ |
Basic and advanced ACLs | √ |
Time range-based ACL | √ |
User-based and application-based access control | √ |
Static and dynamic blacklist function | √ |
MAC-IP binding | √ |
MAC-based ACL | √ |
Antivirus | Signature-based virus detection | √ |
Manual and automatic upgrade for the signature database | √ |
Stream-based processing | √ |
Virus detection based on HTTP, FTP, SMTP, and POP3 | √ |
Virus types include Backdoor, Email-Worm, IM-Worm, P2P-Worm, Trojan, AdWare, and Virus | √ |
Virus logs and reports | √ |
Signature-based virus detection | √ |
Deep intrusion prevention | Prevention against common attacks such as hacker, worm/virus, Trojan, malicious code, spyware/adware, DoS/DDoS, buffer overflow, SQL injection, and IDS/IPS bypass | √ |
Attack signature categories (based on attack types and target systems) and severity levels (including high, medium, low, and notification) | √ |
Manual and automatic upgrade for the attack signature database (TFTP and HTTP). | √ |
P2P/IM traffic identification and control | √ |
Email/webpage/application layer filtering | Email filtering | √ |
SMTP email address filtering | √ |
Email subject/content/attachment filtering | √ |
Webpage filtering | √ |
HTTP URL/content filtering | √ |
Java blocking | √ |
ActiveX blocking | √ |
SQL injection attack prevention | √ |
VPN | L2TP VPN | √ |
IPSec VPN | √ |
GRE VPN | √ |
SSL VPN | √ |
NAT | Many-to-one NAT, which maps multiple internal addresses to one public address | √ |
Many-to-many NAT, which maps multiple internal addresses to multiple public addresses | √ |
One-to-one NAT, which maps one internal address to one public address | √ |
NAT of both source address and destination address | √ |
External hosts access to internal servers | √ |
Internal address to public interface address mapping | √ |
NAT support for DNS | √ |
Setting effective period for NAT | √ |
NAT ALGs for NAT ALG, including DNS, FTP, H.323, ILS, MSN, NBT, PPTP, and SIP | √ |
