| Product Overview |

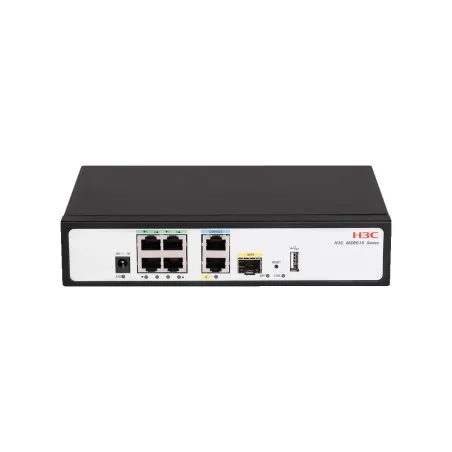

H3C MSR610 Router 2 WAN, 4 Port LAN, Throughput 1Gbps รองรับ VPN IPSecs/L2TP, Dynamic Routing RIP, OSPF, BGP, Captive Portal, 802.1X
Managed ผ่าน Cloud/Hardware Controller/Standalone
|
|
Forwarding Performance In Service (IMIX)
|
200 Mbps
|
|
NGFW Throughput (Maximum rate for forwarding packets with 1518 bytes)
|
1Gbps
|
|
CPU
|
800MHz
|
|
Memory
|
1 GB
|
|
Internal Flash
|
256 MB
|
|
External Flash
|
NA
|
|
USB ports
|
1 ( no SIM card function )
|
|
Console ports
|
1
|
|
WAN ports
|
1 × GE copper port
1 × SFP port
|
|
LAN port
|
4 × GE ports (can be configured as WAN interfaces)
|
|
Max power consumption
|
24W
|
|
Power voltage(adapter)
|
External power adapter: 100 VAC to 240 VAC @ 50 Hz/60 Hz
|
|
Power voltage(device)
|
DC 12V 2A
|
|
Dimensions (W × D × H)
|
210 x 140 x 44 mm
|
|
Operating temperature
|
0°C to 40°C (32°F to 104°F)
|
|
Operating humidity
|
5% RH to 95% RH, non-condensing
|
|
Layer 2 switching
|
Ethernet, Ethernet II, VLAN (port based VLAN, guest VLAN), 802.3x, 802.1p, 802.1Q, 802.1X, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE client, PPPoE server, and DDR
|
|
IP services
|
Unicast/multicast, TCP, UDP, IP option, IP unnumbered, policy-based routing, NetStream, and sFlow
|
|
IP application
|
Ping, Tracert, ICMP, DHCP server, DHCP relay, DHCP client, DNS client, DNS proxy, DDNS, NTP, and SNTP
|
|
IPv4 routing
|
Static routing
Dynamic routing: RIPv1/v2, OSPFv2, BGP, IS-IS
Route iteration
Policy based routing
Equal-cost multi-path routing (ECMP)
Multicast routing: IGMPv1/v2/v3, PIM-DM, PIM-SM, MBGP, MSDP
|
|
QoS
|
LR, port-based mirroring, Port Trust Mode, and port priority
Committed access rate (CAR)
FIFO, WFQ, CBQ
Generic Traffic Shaping (GTS)
Traffic classification
|
|
AC
|
WLAN access, WLAN user security, WLAN user access authentication, WLAN roaming, client access control, WLAN snooping, etc.
|
|
Security
|
Local authentication, RBAC, RADIUS, TACACS+
Basic Firewall Function, ASPF, ACL, filter, connection limit
IKE, IPsec
L2TP, NAT/NAPT, PKI, RSA, SSH v1.5/2.0, URPF, mGRE, GRE
ARP attack prevention
GDVPN
AES, DES, 3DES, MD5, SHA1
|
|
High availability
|
Bandwidth-based load balancing and backup
IP address-based load balancing and backup
NQA collaboration with routing, or interface backup
|
|
Management and maintenance
|
Couldnet APP management
Support remote management of oasis management platform
SNMP v1/v2c/v3, MIB, SYSLOG, RMON
BiMS remote management, booting from USB drive
CLI, file system, and dual image
DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, and SNMP
Console port login, Telnet (VTY) login, SSH login, and FTP login
|
|
EMC
|
FCC Part 15 (CFR 47) CLASS A
ICES-003 CLASS A
VCCI-3 CLASS A
VCCI-4 CLASS A
CISPR 22 CLASS A
EN 55022 CLASS A
AS/NZS CISPR22 CLASS A
CISPR 24
EN 55024
EN 61000-3-2
EN 61000-3-3
EN 61000-6-1
ETSI EN 300 386
EN 301 489-1
EN 301 489-17
|
|
Safety
|
UL 60950-1
CAN/CSA C22.2 No 60950-1
IEC 60950-1
EN 60950-1/A11
AS/NZS 60950
EN 60825-1
EN 60825-2
FDA 21 CFR Subchapter J
GB 4943
|
| รับประกัน |
ประกันศูนย์ H3C Thailand 5 ปี |
