Product Specification
|
|
Overview
|

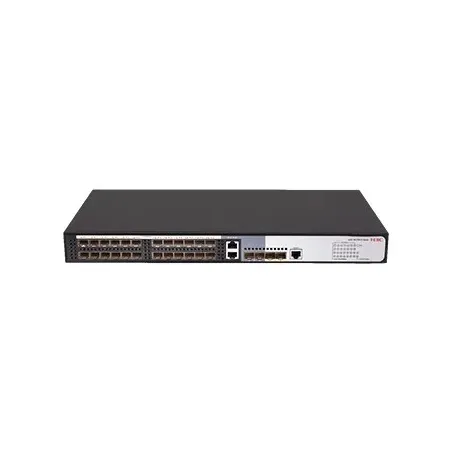

H3C S5120V3-28F-LI L3 Managed Switch 24 Port SFP Gigabit, 4 Port SFP+ 10 Gbps, รองรับ Static Routing/RIP/OSPF, VLAN 802.1q, LACP, 802.1X, IGMP Snooping, SNMP, Port security, ACL, RADIUS
|
|
Hardware Specifications
|
|
Switching capacity
|
92Gbps
|
|
Forwarding capacity
|
136.9Mpps
|
|
CPU
|
1 Core, 800MHz
|
|
Flash/SDRAM
|
256MB/512MB
|
|
Dimensions (W × D × H)
|
440×230×43.6 mm
|
|
Weight
|
≤ 3 kg
|
|
Management port
|
1 console port
|
|
Networking interface
|
24xSFP
2xSFP(2Combo)
2xSFP Plus
|
|
Maximum Stacking bandwidth
|
40Gbps
|
|
Maximum stacking num
|
9
|
|
Port Surge
|
6KV
|
|
Input voltage
|
AC: The rated voltage range is 100V to 240V, 50/60Hz.
|
|
Total power consumption
|
MIN:
AC: 15WMAX: AC: 45W
|
|
Fan number
|
2
|
|
MTBF(Year)
|
150.86
|
|
MTTR(Hour)
|
1
|
|
Operating temperature
|
-5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km)-5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
|
|
Storage temperature
|
-40℃ ~ 70℃
|
|
Relative humidity (non-condensing)
|
5% RH to 95% RH, non-condensing
|
Performance Specification
|
|
MAC address entries
|
16K
|
|
Static Mac address
|
1K
|
|
VLAN table
|
4094
|
|
VLAN interface
|
32
|
|
IPv4 routing entries
|
1024
|
|
IPv4 ARP entries
|
1024
|
|
IPv4 ACL entries
|
512
|
|
IPv4 multicast L2 entries
|
1000
|
|
IPv6 unicast routing entries
|
240
|
|
QOS forward queues
|
8
|
|
IPv6 ACL entries
|
256
|
|
IPv6 ND entries
|
240
|
|
Jumbo frame length
|
10000
|
|
MAX num in one link group
|
8
|
|
Link group num
|
124
|
Software Specifications
|
|
Port aggregation
|
GE/10GE port aggregation
Dynamic aggregation
Static aggregation
Cross-device aggregation
|
|
Broadcast/Multicast/Unicast storm suppression
|
Storm suppression based on port bandwidth percentage
Storm suppression based on PPS
Storm suppression based on BPS
Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression
|
|
Traffic control
|
802.3x traffic control and half-duplex backpressure
|
|
IRF2
|
Distributed device management, distributed link aggregation, and distributed resilient routing
Stacking through standard Ethernet interfaces
Local device stacking and remote device stacking
|
|
MAC address table
|
Static MAC address
Blackhole MAC address
Setting the maximum number of port MAC addresses to be learned
|
|
VLAN
|
Port-based VLAN
MAC-based VLAN
Protocol-based VLAN
QinQ and selective QinQ
VLAN mapping
Voice VLAN
MVRP
|
|
DHCP
|
DHCP ClientDHCP Snooping
DHCP Snooping option82
DHCP Relay
DHCP Server
DHCP auto-config
|
|
VLAN interface
|
Both IPv4 and IPv6 supported
|
|
ARP
|
ARP Detection
ARP speed limit
|
|
IP routing
|
Static routing
RIPv1/v2 and RIPng
OSPFv1/v2 and OSPFv3
|
|
Multicast
|
IGMP Snooping V2/V3
PIM Snooping
MLD Snooping
Multicast VLAN
Multicast VLAN+
|
|
Layer 2 ring network protocol
|
STP/RSTP/MSTP/PVST/PVST+
STP Root Protection
Smart Link
RRPP
G.8032 ERPS (Ethernet Ring Protection Switching)
|
|
ACL
|
Packet filtering at Layer 2 through layer 4 Traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses, Time range-based ACL
VLAN-based ACL
Bidirectional ACL
|
|
QoS
|
Port rate limit (receiving and transmitting)
Packet redirection
Committed access rate (CAR)
Eight output queues on each port
Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR
802.1p DSCP remarking
|
|
Traffic Statistic
|
Sflow
|
|
Forwarding
|
Wire-speed/Line-rate architecture
|
|
Mirroring
|
Port mirroring
Traffic mirroring
RSPAN
|
|
Security
|
Hierarchical user management and password protection
AAA authentication support
RADIUS authentication
HWTACACS
SSH2.0
Port isolation
802.1X authentication, centralized MAC authentication
Port security
IP Source Guard
HTTPs
EAD
|
|
Management and
maintenance
|
Loading and upgrading through XModem/FTP/TFTP
Zero Touch Provisioning
Configuration through CLI, Telnet, and console port
SNMPv1/v2c/v3 and Web-based NMS
Restful
Remote monitoring (RMON ) alarm, event, and history recording
IMC NMS
System log, alarming based on severities, and output of debugging information
NTP
Ping, Tracert
NQA
Virtual cable test (VCT)
Device link detection protocol (DLDP)
Loopback-detection
|
|
EMC
|
FCC Part 15 Subpart B CLASS A
ICES-003 CLASS A
VCCI CLASS A
CISPR 32 CLASS A
EN 55032 CLASS A
AS/NZS CISPR32 CLASS A
CISPR 35
EN 55035
EN 61000-3-2
EN 61000-3-3
GB/T 9254.1
|
|
Safety
|
UL 62368-1
CAN/CSA C22.2 No 62368-1
IEC 62368-1
EN 62368-1
AS/NZS 62368-1
FDA 21 CFR Subchapter J
GB 4943.1
|
|
Organization
|
Standards And Protocols
|
|
IEEE
|
802.1x Port based network access control protocol
|
|
802.1ab Link Layer Discovery Protocol
|
|
802.1ak MVRP and MRP
|
|
802.1ax Link Aggregation
|
|
802.1d Media Access Control Bridges
|
|
802.1p Priority
|
|
802.1q VLANs
|
|
802.1s Multiple Spanning Trees
|
|
802.1ag Connectivity Fault Management
|
|
802.1v VLAN classification by Protocol and Port
|
|
802.1w Rapid Reconfiguration of Spanning Tree
|
|
802.3ad Link Aggregation Control Protocol
|
|
802.3af Power over Ethernet
|
|
802.3at Power over Ethernet
|
|
802.3az Energy Efficient Ethernet
|
|
802.3ah Ethernet in the First Mile
|
|
802.3x Full Duplex and flow control
|
|
802.3u 100BASE-T
|
|
802.3ab 1000BASE-T
|
|
802.3z 1000BASE-X
|
|
IETF
|
RFC 768 User Datagram Protocol (UDP)
|
|
RFC 791 Internet Protocol (IP)
|
|
RFC 792 Internet Control Message Protocol (ICMP)
|
|
RFC 793 Transmission Control Protocol (TCP)
|
|
RFC 813 Window and Acknowledgement Strategy in TCP
|
|
RFC 815 IP datagram reassembly algorithms
|
|
RFC 8201 Path MTU Discovery for IP version 6
|
|
RFC 826 Address Resolution Protocol (ARP)
|
|
RFC 879 TCP maximum segment size and related topics
|
|
RFC 896 Congestion control in IP/TCP internetworks
|
|
RFC 917 Internet subnets
|
|
RFC 919 Broadcasting Internet Datagrams
|
|
RFC 922 Broadcasting Internet Datagrams in the Presence of Subnets (IP_BROAD)
|
|
RFC 951 BOOTP
|
|
RFC 1027 Proxy ARP
|
|
RFC 1122 Requirements for Internet Hosts - Communications Layers
|
|
RFC 1213 MIB-2 Stands for Management Information Base
|
|
RFC 1215 Convention for defining traps for use with the SNMP
|
|
RFC 1256 ICMP Router Discovery Messages
|
|
RFC 1350 TFTP Protocol (revision 2)
|
|
RFC 1393 Traceroute Using an IP Option
|
|
RFC 1519 Classless Inter-Domain Routing (CIDR)
|
|
RFC 1542 BOOTP Extensions
|
|
RFC 1583 OSPF Version 2
|
|
RFC 1591 Domain Name System Structure and Delegation
|
|
RFC 1757 Remote Network Monitoring Management Information Base
|
|
RFC 1812 Requirements for IP Version 4 Router
|
|
RFC 1918 Address Allocation for Private Internet
|
|
RFC 2131 Dynamic Host Configuration Protocol (DHCP)
|
|
RFC 2132 DHCP Options and BOOTP Vendor Extensions
|
|
RFC 2273 SNMPv3 Applications
|
|
RFC 2328 OSPF Version 2
|
|
RFC 2375 IPv6 Multicast Address Assignments
|
|
RFC 2401 Security Architecture for the Internet Protocol
|
|
RFC 2402 IP Authentication Header
|
|
RFC 2460 Internet Protocol, Version 6 (IPv6) Specification
|
|
RFC 2464 Transmission of IPv6 over Ethernet Networks
|
|
RFC 2576 (Coexistence between SNMP V1, V2, V3)
|
|
RFC 2579 Textual Conventions for SMIv2
|
|
RFC 2580 Conformance Statements for SMIv2
|
|
RFC 2711 IPv6 Router Alert Option
|
|
RFC 2787 Definitions of Managed Objects for the Virtual Router Redundancy Protocol
|
|
RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations
|
|
RFC 3101 OSPF Not-so-stubby-area option
|
|
RFC 3046 DHCP Relay Agent Information Option
|
|
RFC 3056 Connection of IPv6 Domains via IPv4 Clouds
|
|
RFC 3137 OSPF Stub Router Advertisment sFlow
|
|
RFC 3416 (SNMP Protocol Operations v2)
|
|
RFC 3417 (SNMP Transport Mappings)
|
|
RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)
|
|
RFC 3484 Default Address Selection for IPv6
|
|
RFC 3509 Alternative Implementations of OSPF Area Border Routers
|
|
RFC 3580 IEEE 802.1X Remote Authentication Dial In User Service (RADIUS) Usage Guidelines
|
|
RFC 3623 Graceful OSPF Restart
|
|
RFC 4022 MIB for TCP
|
|
RFC 4113 MIB for UDP
|
|
RFC 4213 Basic Transition Mechanisms for IPv6 Hosts and Routers
|
|
RFC 4251 The Secure Shell (SSH) Protocol
|
|
RFC 4252 SSHv6 Authentication
|
|
RFC 4253 SSHv6 Transport Layer
|
|
RFC 4254 SSHv6 Connection
|
|
RFC 4291 IP Version 6 Addressing Architecture
|
|
RFC 4292 IP Forwarding Table MIB
|
|
RFC 4293 Management Information Base for the Internet Protocol (IP)
|
|
RFC 4419 Key Exchange for SSH
|
|
RFC 4443 ICMPv6
|
|
RFC 4541 IGMP & MLD Snooping Switch
|
|
RFC 4552 Authentication/Confidentiality for OSPFv3
|
|
RFC 4750 OSPFv2 MIB partial support no SetMIB
|
|
RFC 4861 IPv6 Neighbor Discovery
|
|
RFC 4862 IPv6 Stateless Address Auto-configuration
|
|
RFC 4940 IANA Considerations for OSPF
|
|
RFC 5095 Deprecation of Type 0 Routing Headers in IPv6
|
|
RFC 5187 OSPFv3 Graceful Restart
|
|
RFC 5340 OSPFv3 for IPv6
|
|
RFC 5424 Syslog Protocol
|
|
RFC 5880 Bidirectional Forwarding Detection
|
|
RFC 5905 Network Time Protocol Version 4: Protocol and Algorithms Specification
|
|
RFC 6620 FCFS SAVI
|
|
RFC 6987 OSPF Stub Router Advertisement
|
|
RFC 5381 Experience of Implementing NETCONF over SOAP
|
|
ITU
|
ITU-T Y.1731
|
|
ITU-T Rec G.8032/Y.1344 Mar. 2010
|
|
รับประกัน
|
ประกันศูนย์ H3C Thailand 5 ปี
|
