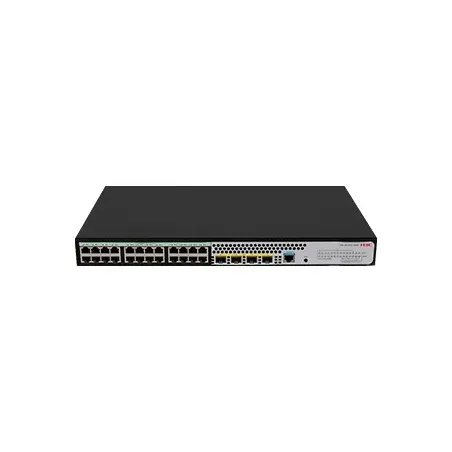

S5120V3-28S-PWR-LI H3C L3-Managed POE Switch 24 Port Gigabit, 4 SFP+, 240W

Product Specification

Overview

H3C S5120V3-28S-PWR-LI L3 Managed POE Switch 24 Port Gigabit, 4 Port SFP+ 10 Gigabit รองรับ Static Routing/RIP/OSPF, VLAN 802.1q, LACP, 802.1X, IGMP Snooping, SNMP, Port security, ACL, RADIUS, จ่ายไฟ POE 802.3af/at 8 Port สูงสุด 240W

Hardware Specifications

Switching capacity

128Gbps

Forwarding capacity

95.232Mpps

CPU

1 Core, 800MHz

Flash/SDRAM

256MB/512MB

Dimensions (W × D × H)

440×260×43.6 mm

Weight

≤ 4.5 kg

Management port

1 console port

Networking interface

24×10/100/1000TX
4×SFP Plus

Maximum Stacking bandwidth

80Gbps

Maximum stacking num

9

Port Surge

6KV

Input voltage

AC: The rated voltage range is 100V to 240V, 50/60Hz.

Total power consumption

MIN: AC: 15WMAX: AC: 294W (PoE 240W)

Fan number

1

MTBF(Year)

87.06

MTTR(Hour)

1

Operating temperature

-5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km)-5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)

Storage temperature

-40℃ ~ 70℃

Relative humidity (non-condensing)

5% RH to 95% RH, non-condensing

Performance Specification

MAC address entries

16K

Static Mac address

1K

VLAN table

4094

VLAN interface

32

IPv4 routing entries

1024

IPv4 ARP entries

1024

IPv4 ACL entries

512

IPv4 multicast L2 entries

1000

IPv6 unicast routing entries

240

QOS forward queues

8

IPv6 ACL entries

256

IPv6 ND entries

240

Jumbo frame length

10000

MAX num in one link group

8

Link group num

124

PoE Power Capacity

Total PoE power capacity

15.4W (802.3af): 15
30W (802.3at): 8

PoE Ports Quantity

240W

Software Specifications

Port aggregation

GE/10GE port aggregation
Dynamic aggregation
Static aggregation
Cross-device aggregation

Broadcast/Multicast/Unicast storm suppression

Storm suppression based on port bandwidth percentage
Storm suppression based on PPS
Storm suppression based on BPS
Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression

Traffic control

802.3x traffic control and half-duplex backpressure

IRF2

Distributed device management, distributed link aggregation, and distributed resilient routing
Stacking through standard Ethernet interfaces
Local device stacking and remote device stacking

MAC address table

Static MAC address
Blackhole MAC address
Setting the maximum number of port MAC addresses to be learned

VLAN

Port-based VLAN
MAC-based VLAN
Protocol-based VLAN
QinQ and selective QinQ
VLAN mapping
Voice VLAN
MVRP

DHCP

DHCP ClientDHCP Snooping
DHCP Snooping option82
DHCP Relay
DHCP Server
DHCP auto-config

VLAN interface

Both IPv4 and IPv6 supported

ARP

ARP Detection
ARP speed limit

IP routing

Static routing
RIPv1/v2 and RIPng
OSPFv1/v2 and OSPFv3

Multicast

IGMP Snooping V2/V3
PIM Snooping
MLD Snooping
Multicast VLAN
Multicast VLAN+

Layer 2 ring network protocol

STP/RSTP/MSTP/PVST/PVST+
STP Root Protection
Smart Link
RRPP
G.8032 ERPS (Ethernet Ring Protection Switching)

ACL

Packet filtering at Layer 2 through layer 4 Traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses, Time range-based ACL
VLAN-based ACL
Bidirectional ACL

QoS

Port rate limit (receiving and transmitting)
Packet redirection
Committed access rate (CAR)
Eight output queues on each port
Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR
802.1p DSCP remarking

Traffic Statistic

Sflow

Forwarding

Wire-speed/Line-rate architecture

Mirroring

Port mirroring
Traffic mirroring
RSPAN

Security

Hierarchical user management and password protection
AAA authentication support
RADIUS authentication
HWTACACS
SSH2.0
Port isolation
802.1X authentication, centralized MAC authentication
Port security
IP Source Guard
HTTPs
EAD

Management and

maintenance

Loading and upgrading through XModem/FTP/TFTP
Zero Touch Provisioning
Configuration through CLI, Telnet, and console port
SNMPv1/v2c/v3 and Web-based NMS
Restful
Remote monitoring (RMON ) alarm, event, and history recording
IMC NMS
System log, alarming based on severities, and output of debugging information
NTP
Ping, Tracert
NQA
Virtual cable test (VCT)
Device link detection protocol (DLDP)
Loopback-detection

EMC

FCC Part 15 Subpart B CLASS A
ICES-003 CLASS A
VCCI CLASS A
CISPR 32 CLASS A
EN 55032 CLASS A
AS/NZS CISPR32 CLASS A
CISPR 35
EN 55035
EN 61000-3-2
EN 61000-3-3
GB/T 9254.1

Safety

UL 62368-1
CAN/CSA C22.2 No 62368-1
IEC 62368-1
EN 62368-1
AS/NZS 62368-1
FDA 21 CFR Subchapter J
GB 4943.1

Organization

Standards And Protocols

IEEE

802.1x Port based network access control protocol

802.1ab Link Layer Discovery Protocol

802.1ak MVRP and MRP

802.1ax Link Aggregation

802.1d Media Access Control Bridges

802.1p Priority

802.1q VLANs

802.1s Multiple Spanning Trees

802.1ag Connectivity Fault Management

802.1v VLAN classification by Protocol and Port

802.1w Rapid Reconfiguration of Spanning Tree

802.3ad Link Aggregation Control Protocol

802.3af Power over Ethernet

802.3at Power over Ethernet

802.3az Energy Efficient Ethernet

802.3ah Ethernet in the First Mile

802.3x Full Duplex and flow control

802.3u 100BASE-T

802.3ab 1000BASE-T

802.3z 1000BASE-X

IETF

RFC 768 User Datagram Protocol (UDP)

RFC 791 Internet Protocol (IP)

RFC 792 Internet Control Message Protocol (ICMP)

RFC 793 Transmission Control Protocol (TCP)

RFC 813 Window and Acknowledgement Strategy in TCP

RFC 815 IP datagram reassembly algorithms

RFC 8201 Path MTU Discovery for IP version 6

RFC 826 Address Resolution Protocol (ARP)

RFC 879 TCP maximum segment size and related topics

RFC 896 Congestion control in IP/TCP internetworks

RFC 917 Internet subnets

RFC 919 Broadcasting Internet Datagrams

RFC 922 Broadcasting Internet Datagrams in the Presence of Subnets (IP_BROAD)

RFC 951 BOOTP

RFC 1027 Proxy ARP

RFC 1122 Requirements for Internet Hosts - Communications Layers

RFC 1213 MIB-2 Stands for Management Information Base

RFC 1215 Convention for defining traps for use with the SNMP

RFC 1256 ICMP Router Discovery Messages

RFC 1350 TFTP Protocol (revision 2)

RFC 1393 Traceroute Using an IP Option

RFC 1519 Classless Inter-Domain Routing (CIDR)

RFC 1542 BOOTP Extensions

RFC 1583 OSPF Version 2

RFC 1591 Domain Name System Structure and Delegation

RFC 1757 Remote Network Monitoring Management Information Base

RFC 1812 Requirements for IP Version 4 Router

RFC 1918 Address Allocation for Private Internet

RFC 2131 Dynamic Host Configuration Protocol (DHCP)

RFC 2132 DHCP Options and BOOTP Vendor Extensions

RFC 2273 SNMPv3 Applications

RFC 2328 OSPF Version 2

RFC 2375 IPv6 Multicast Address Assignments

RFC 2401 Security Architecture for the Internet Protocol

RFC 2402 IP Authentication Header

RFC 2460 Internet Protocol, Version 6 (IPv6) Specification

RFC 2464 Transmission of IPv6 over Ethernet Networks

RFC 2576 (Coexistence between SNMP V1, V2, V3)

RFC 2579 Textual Conventions for SMIv2

RFC 2580 Conformance Statements for SMIv2

RFC 2711 IPv6 Router Alert Option

RFC 2787 Definitions of Managed Objects for the Virtual Router Redundancy Protocol

RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations

RFC 3101 OSPF Not-so-stubby-area option

RFC 3046 DHCP Relay Agent Information Option

RFC 3056 Connection of IPv6 Domains via IPv4 Clouds

RFC 3137 OSPF Stub Router Advertisment sFlow

RFC 3416 (SNMP Protocol Operations v2)

RFC 3417 (SNMP Transport Mappings)

RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)

RFC 3484 Default Address Selection for IPv6

RFC 3509 Alternative Implementations of OSPF Area Border Routers

RFC 3580 IEEE 802.1X Remote Authentication Dial In User Service (RADIUS) Usage Guidelines

RFC 3623 Graceful OSPF Restart

RFC 4022 MIB for TCP

RFC 4113 MIB for UDP

RFC 4213 Basic Transition Mechanisms for IPv6 Hosts and Routers

RFC 4251 The Secure Shell (SSH) Protocol

RFC 4252 SSHv6 Authentication

RFC 4253 SSHv6 Transport Layer

RFC 4254 SSHv6 Connection

RFC 4291 IP Version 6 Addressing Architecture

RFC 4292 IP Forwarding Table MIB

RFC 4293 Management Information Base for the Internet Protocol (IP)

RFC 4419 Key Exchange for SSH

RFC 4443 ICMPv6

RFC 4541 IGMP & MLD Snooping Switch

RFC 4552 Authentication/Confidentiality for OSPFv3

RFC 4750 OSPFv2 MIB partial support no SetMIB

RFC 4861 IPv6 Neighbor Discovery

RFC 4862 IPv6 Stateless Address Auto-configuration

RFC 4940 IANA Considerations for OSPF

RFC 5095 Deprecation of Type 0 Routing Headers in IPv6

RFC 5187 OSPFv3 Graceful Restart

RFC 5340 OSPFv3 for IPv6

RFC 5424 Syslog Protocol

RFC 5880 Bidirectional Forwarding Detection

RFC 5905 Network Time Protocol Version 4: Protocol and Algorithms Specification

RFC 6620 FCFS SAVI

RFC 6987 OSPF Stub Router Advertisement

RFC 5381 Experience of Implementing NETCONF over SOAP

ITU

ITU-T Y.1731

ITU-T Rec G.8032/Y.1344 Mar. 2010

รับประกัน

ประกันศูนย์ H3C Thailand 5 ปี
