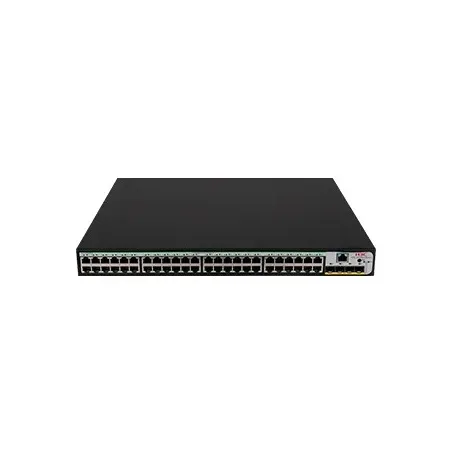

H3C S5120V3-52S-PWR-LI L3-Managed POE Switch 48 Port Gigabit, 4 Port SFP+ 10 Gigabit รองรับ Static Routing/RIP/OSPF, VLAN 802.1q, LACP, 802.1X, IGMP Snooping, SNMP, Port security, ACL, RADIUS, จ่ายไฟ POE 802.3af/at 15 Port สูงสุด 370W
สอบถามรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet
H3C S5120V3-LI Series Datasheet
H3C S5120V3-LI Seires Hardware Information and Specifications
H3C S5120V3-LI Seires Configuration Guide
H3C Devices CLI Reference
H3C Campus Switches Command References
H3C Campus Switches Configuration Examples
Product Specification |
|
Overview |
H3C S5120V3-52S-PWR-LI L3-Managed POE Switch 48 Port Gigabit, 4 Port SFP+ 10 Gigabit รองรับ Static Routing/RIP/OSPF, VLAN 802.1q, LACP, 802.1X, IGMP Snooping, SNMP, Port security, ACL, RADIUS, จ่ายไฟ POE 802.3af/at 34 Port สูงสุด 370W |
Feature |
S5120V3-52S-PWR-LI |
Switching capacity |
176Gbps |
Forwarding capacity |
130.952Mpps |
CPU |
1 Core, 800MHz |
Flash/SDRAM |
256MB/512MB |
Dimensions (W × D × H) |
440×400×43.6 mm |
Weight |
≤ 6 kg |
Management port |
1 console port |
Networking interface |
48×10/100/1000TX |
Maximum Stacking bandwidth |
80Gbps |
Maximum stacking num |
9 |
Port Surge |
6KV |
Input voltage |
AC: The rated voltage range is 100V to 240V, 50/60Hz. |
Total power consumption |
MIN: AC: 36WMAX: AC: 467W (PoE 370W) |
Fan number |
1 |
MTBF(Year) |
50.19 |
MTTR(Hour) |
1 |
Operating temperature |
-5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km)-5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
Storage temperature |
-40℃ ~ 70℃ |
Relative humidity (non-condensing) |
5% RH to 95% RH, non-condensing |
Performance Specification |
|
MAC address entries |
16K |
Static Mac address |
1K |
VLAN table |
4094 |
VLAN interface |
32 |
IPv4 routing entries |
1024 |
IPv4 ARP entries |
1024 |
IPv4 ACL entries |
512 |
IPv4 multicast L2 entries |
1000 |
IPv6 unicast routing entries |
240 |
QOS forward queues |
8 |
IPv6 ACL entries |
256 |
IPv6 ND entries |
240 |
Jumbo frame length |
10000 |
MAX num in one link group |
8 |
Link group num |
124 |
PoE Power Capacity |
|
Total PoE power capacity |
15.4W (802.3af): 24 |
PoE Ports Quantity |
370W |
Software Specifications |
|
Port aggregation |
GE/10GE port aggregation |
Broadcast/Multicast/Unicast storm suppression |
Storm suppression based on port bandwidth percentage |
Traffic control |
802.3x traffic control and half-duplex backpressure |
IRF2 |
Distributed device management, distributed link aggregation, and distributed resilient routing |
MAC address table |
Static MAC address |
VLAN |
Port-based VLAN |
DHCP |
DHCP ClientDHCP Snooping |
VLAN interface |
Both IPv4 and IPv6 supported |
ARP |
ARP Detection |
IP routing |
Static routing |
Multicast |
IGMP Snooping V2/V3 |
Layer 2 ring network protocol |
STP/RSTP/MSTP/PVST/PVST+ |
ACL |
Packet filtering at Layer 2 through layer 4 Traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses, Time range-based ACL |
QoS |
Port rate limit (receiving and transmitting) |
Traffic Statistic |
Sflow |
Forwarding |
Wire-speed/Line-rate architecture |
Mirroring |
Port mirroring |
Security |
Hierarchical user management and password protection |
Management and maintenance |
Loading and upgrading through XModem/FTP/TFTP |
EMC |
FCC Part 15 Subpart B CLASS A |
Safety |
UL 62368-1 |
Organization |
Standards And Protocols |
IEEE |
802.1x Port based network access control protocol |
802.1ab Link Layer Discovery Protocol |
|
802.1ak MVRP and MRP |
|
802.1ax Link Aggregation |
|
802.1d Media Access Control Bridges |
|
802.1p Priority |
|
802.1q VLANs |
|
802.1s Multiple Spanning Trees |
|
802.1ag Connectivity Fault Management |
|
802.1v VLAN classification by Protocol and Port |
|
802.1w Rapid Reconfiguration of Spanning Tree |
|
802.3ad Link Aggregation Control Protocol |
|
802.3af Power over Ethernet |
|
802.3at Power over Ethernet |
|
802.3az Energy Efficient Ethernet |
|
802.3ah Ethernet in the First Mile |
|
802.3x Full Duplex and flow control |
|
802.3u 100BASE-T |
|
802.3ab 1000BASE-T |
|
802.3z 1000BASE-X |
|
IETF |
RFC 768 User Datagram Protocol (UDP) |
RFC 791 Internet Protocol (IP) |
|
RFC 792 Internet Control Message Protocol (ICMP) |
|
RFC 793 Transmission Control Protocol (TCP) |
|
RFC 813 Window and Acknowledgement Strategy in TCP |
|
RFC 815 IP datagram reassembly algorithms |
|
RFC 8201 Path MTU Discovery for IP version 6 |
|
RFC 826 Address Resolution Protocol (ARP) |
|
RFC 879 TCP maximum segment size and related topics |
|
RFC 896 Congestion control in IP/TCP internetworks |
|
RFC 917 Internet subnets |
|
RFC 919 Broadcasting Internet Datagrams |
|
RFC 922 Broadcasting Internet Datagrams in the Presence of Subnets (IP_BROAD) |
|
RFC 951 BOOTP |
|
RFC 1027 Proxy ARP |
|
RFC 1122 Requirements for Internet Hosts - Communications Layers |
|
RFC 1213 MIB-2 Stands for Management Information Base |
|
RFC 1215 Convention for defining traps for use with the SNMP |
|
RFC 1256 ICMP Router Discovery Messages |
|
RFC 1350 TFTP Protocol (revision 2) |
|
RFC 1393 Traceroute Using an IP Option |
|
RFC 1519 Classless Inter-Domain Routing (CIDR) |
|
RFC 1542 BOOTP Extensions |
|
RFC 1583 OSPF Version 2 |
|
RFC 1591 Domain Name System Structure and Delegation |
|
RFC 1757 Remote Network Monitoring Management Information Base |
|
RFC 1812 Requirements for IP Version 4 Router |
|
RFC 1918 Address Allocation for Private Internet |
|
RFC 2131 Dynamic Host Configuration Protocol (DHCP) |
|
RFC 2132 DHCP Options and BOOTP Vendor Extensions |
|
RFC 2273 SNMPv3 Applications |
|
RFC 2328 OSPF Version 2 |
|
RFC 2375 IPv6 Multicast Address Assignments |
|
RFC 2401 Security Architecture for the Internet Protocol |
|
RFC 2402 IP Authentication Header |
|
RFC 2460 Internet Protocol, Version 6 (IPv6) Specification |
|
RFC 2464 Transmission of IPv6 over Ethernet Networks |
|
RFC 2576 (Coexistence between SNMP V1, V2, V3) |
|
RFC 2579 Textual Conventions for SMIv2 |
|
RFC 2580 Conformance Statements for SMIv2 |
|
RFC 2711 IPv6 Router Alert Option |
|
RFC 2787 Definitions of Managed Objects for the Virtual Router Redundancy Protocol |
|
RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations |
|
RFC 3101 OSPF Not-so-stubby-area option |
|
RFC 3046 DHCP Relay Agent Information Option |
|
RFC 3056 Connection of IPv6 Domains via IPv4 Clouds |
|
RFC 3137 OSPF Stub Router Advertisment sFlow |
|
RFC 3416 (SNMP Protocol Operations v2) |
|
RFC 3417 (SNMP Transport Mappings) |
|
RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP) |
|
RFC 3484 Default Address Selection for IPv6 |
|
RFC 3509 Alternative Implementations of OSPF Area Border Routers |
|
RFC 3580 IEEE 802.1X Remote Authentication Dial In User Service (RADIUS) Usage Guidelines |
|
RFC 3623 Graceful OSPF Restart |
|
RFC 4022 MIB for TCP |
|
RFC 4113 MIB for UDP |
|
RFC 4213 Basic Transition Mechanisms for IPv6 Hosts and Routers |
|
RFC 4251 The Secure Shell (SSH) Protocol |
|
RFC 4252 SSHv6 Authentication |
|
RFC 4253 SSHv6 Transport Layer |
|
RFC 4254 SSHv6 Connection |
|
RFC 4291 IP Version 6 Addressing Architecture |
|
RFC 4292 IP Forwarding Table MIB |
|
RFC 4293 Management Information Base for the Internet Protocol (IP) |
|
RFC 4419 Key Exchange for SSH |
|
RFC 4443 ICMPv6 |
|
RFC 4541 IGMP & MLD Snooping Switch |
|
RFC 4552 Authentication/Confidentiality for OSPFv3 |
|
RFC 4750 OSPFv2 MIB partial support no SetMIB |
|
RFC 4861 IPv6 Neighbor Discovery |
|
RFC 4862 IPv6 Stateless Address Auto-configuration |
|
RFC 4940 IANA Considerations for OSPF |
|
RFC 5095 Deprecation of Type 0 Routing Headers in IPv6 |
|
RFC 5187 OSPFv3 Graceful Restart |
|
RFC 5340 OSPFv3 for IPv6 |
|
RFC 5424 Syslog Protocol |
|
RFC 5880 Bidirectional Forwarding Detection |
|
RFC 5905 Network Time Protocol Version 4: Protocol and Algorithms Specification |
|
RFC 6620 FCFS SAVI |
|
RFC 6987 OSPF Stub Router Advertisement |
|
RFC 5381 Experience of Implementing NETCONF over SOAP |
|
ITU |
ITU-T Y.1731 |
ITU-T Rec G.8032/Y.1344 Mar. 2010 |
|
รับประกัน |
ประกันศูนย์ H3C Thailand 5 ปี |
