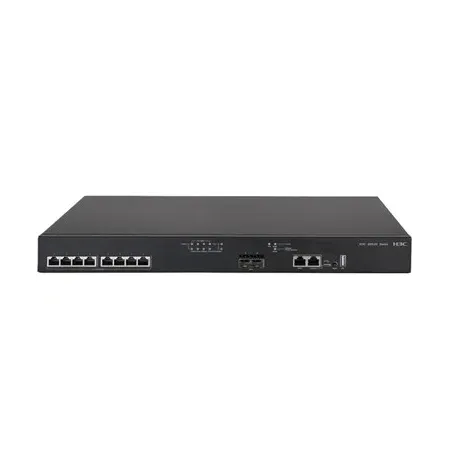

S6520X-10XT-SI H3C L3-Managed Switch 8 Port Multi-Gig 10Gbps

Product Specification

Overview

S6520X-10XT-SI L3-Managed Switch 8 Port Multi-Gig ความเร็ว 1/2.5/5/10Gbps, 2 Port SFP+ ความเร็ว 10Gbps

รองรับ Static Routing, OSPF, BGP, RIP, VxLAN, Traffic monitoring, Multicast, QOS, 802.1X

Hardware Specification

Port switching capacity

200Gbps

Packet forwarding rate

240Mpps

Box switching capacity

1.44Tbps

CPU

Dual-Core, 1.6GHz

Flash/SDRAM

1GB/2GB

Buffer

3M

Dimensions (W×D×H)

440×260×43.6mm

Weight

≤3.4kg

Service ports

8×1G/2.5G/5G/10G Base-T Multi-giga ports + 2×1/10G SFP Plus

Console ports

1

Management Ethernet ports

1

USB ports

1

Expansion slots

N/A

Power Supply slots

N/A

Idle power consumption

AC: 17.5W

Max. power consumption

AC: 34.5W

Input voltage range

AC Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz
DC: -48V~-60V

Operating temperature

0ºC to 45ºC (32°F to 113°F)

-60m - 5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m.

Storage temperature

-40℃ to 70℃ (-40℉ to 158℉)

Operating & storage humidity

5% RH to 95% RH, non-condensing

MTBF(Year)

58.1

MTTR(Hour)

1

Performance Specification

MAC address entries(max)

32,768

VLAN table

4,094

VLAN interface

1,024

IPv4 routing entries(max)

16,384

IPv4 ARP entries(max)

16,384

IPv4 ACL entries

Ingress: 1024
Egress: 256

IPv4 multicast L2 entries

4,000

IPv4 multicast L3 entries

1,500

IPv6 unicast routing entries(max)

8,192

QOS forward queues

8

IPv6 ACL entries

Ingress: 1024
Egress: 256

IPv6 ND entries(max)

10,240

IPv6 multicast L2 entries

2,000

IPv6 multicast L3 entries

500

Jumbo frame length

10,000

Max Stacking Member

9

Max Stacking Bandwidth

160Gbps

MAX num in one link group

32

Link group num

128

Software specifications

Virtualization

Intelligent Resilient Framework 2 (IRF2)
Distributed device management
Distributed link aggregation
Distributed resilient routing
Stacking through standard Ethernet ports
Local device stacking and remote device stacking
LACP-, BFD-, and ARP-based multi-active detection (MAD)

Jumbo frame

Supported

MAC address table

Static MAC address
Blackhole MAC address
MAC learning limit

OpenFlow

OpenFlow 1.3

VxLAN

VXLAN L2 switching
VXLAN L3 routing
VXLAN VTEP
IS-IS+ENDP distributed control plane
MP-BGP+EVPN distributed control plane
OpenFlow+Netconf centralized control plane

VLAN

Port-based VLAN (up to 4094 VLANs)
Default VLAN
Private VLAN
QinQ and flexible QinQ
VLAN mapping
PVST+ and RPVST+

Traffic monitoring

sFLOW

DHCP/DHCPv6

DHCP/DHCPv6 client
DHCP/DHCPv6 snooping
DHCP/DHCPv6 relay
DHCP/DHCPv6 server
DHCP snooping Option 82/DHCP relay Option 82

ARP

Static entry
Gratuitous ARP
Common proxy ARP and local proxy ARP
Dynamic ARP inspection
ARP anti-attack
ARP flood suppression
ARP source suppression
ARP detection based on DHCP snooping safety entries, 802.1X entries, and IP/MAC static binding entries

Routing

IPv4/IPv6 static routing
Dynamic routing such as RIP v1/2 and RIPng
Policy routing
Equal-cost multi-path routing (ECMP)
VRRP
OSPFv1/v2/v3
BGP
IS-IS

IPv6

Neighbor Discovery (ND)
PMTU
ICMP v6, Telnet v6, SFTP v6, SNMP v6, BFD v6, VRRP v3
SSH2 v6
IPv6 Portal
IPv6 tunnel

Multicast

IGMP v2/v3
IGMP Snooping v2/v3
IGMP Snooping fast-leave
IGMP Snooping group-policy
PIM-SM , PIM-SSM , PIM-DM
PIM snooping
MVRP (GVRP analog)
MFF
Enhanced Layer 3 multicast

Zero Configuration

DHCP auto-config
CWMP-TR069

Broadcast/Multicast/Unicast storm suppression

Storm suppression based on port bandwidth percentage
Storm suppression based on PPS
Storm suppression based on BPS
Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression

Loop-free redundant Layer 2 topology

STP/RSTP/MSTP/ PVST/PVST+
STP Root Guard
BPDU Guard
BPDU Drop
BPDU Blocking and Root Guard
Link Detection (UDLD)
Digital Diagnostic Monitor (DDM)
G.8032 Ethernet ring protection switching (ERPS)

QoS/ACL

Rate limit for receiving and transmitting packets
CAR
COS, TOS
Eight output queues per port
Flexible queue scheduling algorithms based on both port and queue, including SP, WDRR, WRR, WFQ, and SP+WRR
802.1p priority and DSCP priority
Layer 2 to Layer 4 packet filtering
Traffic classification based on source MAC, destination MAC, source IP, destination IP, port, TCP / UDP Port, protocol, and VLAN
Time range

Mirroring

Flow mirroring
N:4 port mirroring
Local port mirroring and remote port mirroring
Policy-based Mirroring
Traffic Mirroring

Security

Hierarchical user management and password protection
MAC-based authentication
802.1X
Storm constrain
AAA authentication
RADIUS authentication
HWTACACS
SSH2.0
Port isolation
IP/Port/MAC binding
IP source guard
HTTPs
SSL
User Profile
Public Key Infrastructure (PKI)
CPU protection
Control Plane Protection (CoPP), Wireless Intrusion Prevention System (WIPS)
ND Detection, RA Guard

Loading and upgrading

Loading and upgrading through XMODEM/FTP/TFTP
Loading and upgrading from USB

Management and maintenance

Configuration from CLI
Login through Telnet, and the console port
Job scheduler
ISSU
VCT
802.1ag and 802.3ah
Simple Network Management Protocol (SNMP)
IMC network management system
System log
Alarming based on severity
NTP
Power, fan, and temperature alarming
Debugging information output
Ping and Tracert
RMON
LLDP, LLDP-MED
LACP
Track
Telnet-based remote maintenance

EMC

FCC Part 15 Subpart B CLASS A
ICES-003 CLASS A
VCCI CLASS A
CISPR 32 CLASS A
EN 55032 CLASS A
AS/NZS CISPR32 CLASS A
CISPR 35
EN 55035
EN 61000-3-2
EN 61000-3-3
GB/T 9254.1

Safety

UL 62368-1
CAN/CSA C22.2 No 62368-1
IEC 62368-1
EN 62368-1
GB 4943.1
