Product Specification |

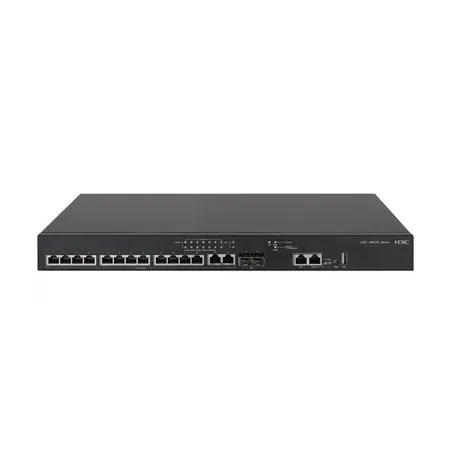

Overview | S6520X-16XT-SI L3-Managed Switch 14 Port Multi-Gig ความเร็ว 1/2.5/5/10Gbps, 2 Port SFP+ ความเร็ว 10Gbps รองรับ Static Routing, OSPF, BGP, RIP, VxLAN, Traffic monitoring, Multicast, QOS, 802.1X |
Hardware Specification |
Port switching capacity | 320Gbps |
Packet forwarding rate | 240Mpps |
Box switching capacity | 1.44Tbps |
CPU | Dual-Core, 1.6GHz |
Flash/SDRAM | 1GB/2GB |
Buffer | 3M |
Dimensions (W×D×H) | 440×260×43.6 mm |
Weight | ≤3.4kg |
Service ports | 14× 1G/2.5G/5G/10G Base-T Multi-giga ports+ 2×1/10G SFP Plus |
Console ports | 1 |
Management Ethernet ports | 1 |
USB ports | 1 |
Expansion slots | N/A |
Power Supply slots | N/A |
Idle power consumption | AC: 22.1W |
Max. power consumption | AC: 48.3W |
Input voltage range | AC Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz
DC: -48V~-60V |
Operating temperature | 0ºC to 45ºC (32°F to 113°F) -60m - 5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m. |
Storage temperature | -40℃ to 70℃ (-40℉ to 158℉) |
Operating & storage humidity | 5% RH to 95% RH, non-condensing |
MTBF(Year) | 58.1 |
MTTR(Hour) | 1 |
Performance Specification | |
MAC address entries(max) | 32,768 |
VLAN table | 4,094 |
VLAN interface | 1,024 |
IPv4 routing entries(max) | 16,384 |
IPv4 ARP entries(max) | 16,384 |
IPv4 ACL entries | Ingress: 1024
Egress: 256 |
IPv4 multicast L2 entries | 4,000 |
IPv4 multicast L3 entries | 1,500 |
IPv6 unicast routing entries(max) | 8,192 |
QOS forward queues | 8 |
IPv6 ACL entries | Ingress: 1024
Egress: 256 |
IPv6 ND entries(max) | 10,240 |
IPv6 multicast L2 entries | 2,000 |
IPv6 multicast L3 entries | 500 |
Jumbo frame length | 10,000 |
Max Stacking Member | 9 |
Max Stacking Bandwidth | 160Gbps |
MAX num in one link group | 32 |
Link group num | 128 |
Software specifications |
Virtualization | Intelligent Resilient Framework 2 (IRF2)
Distributed device management
Distributed link aggregation
Distributed resilient routing
Stacking through standard Ethernet ports
Local device stacking and remote device stacking
LACP-, BFD-, and ARP-based multi-active detection (MAD) |
Jumbo frame | Supported |
MAC address table | Static MAC address
Blackhole MAC address
MAC learning limit |
OpenFlow | OpenFlow 1.3 |
VxLAN | VXLAN L2 switching
VXLAN L3 routing
VXLAN VTEP
IS-IS+ENDP distributed control plane
MP-BGP+EVPN distributed control plane
OpenFlow+Netconf centralized control plane |
VLAN | Port-based VLAN (up to 4094 VLANs)
Default VLAN
Private VLAN
QinQ and flexible QinQ
VLAN mapping
PVST+ and RPVST+ |
Traffic monitoring | sFLOW |
DHCP/DHCPv6 | DHCP/DHCPv6 client
DHCP/DHCPv6 snooping
DHCP/DHCPv6 relay
DHCP/DHCPv6 server
DHCP snooping Option 82/DHCP relay Option 82 |
ARP | Static entry
Gratuitous ARP
Common proxy ARP and local proxy ARP
Dynamic ARP inspection
ARP anti-attack
ARP flood suppression
ARP source suppression
ARP detection based on DHCP snooping safety entries, 802.1X entries, and IP/MAC static binding entries |
Routing | IPv4/IPv6 static routing
Dynamic routing such as RIP v1/2 and RIPng
Policy routing
Equal-cost multi-path routing (ECMP)
VRRP
OSPFv1/v2/v3
BGP
IS-IS |
IPv6 | Neighbor Discovery (ND)
PMTU
ICMP v6, Telnet v6, SFTP v6, SNMP v6, BFD v6, VRRP v3
SSH2 v6
IPv6 Portal
IPv6 tunnel |
Multicast | IGMP v2/v3
IGMP Snooping v2/v3
IGMP Snooping fast-leave
IGMP Snooping group-policy
PIM-SM , PIM-SSM , PIM-DM
PIM snooping
MVRP (GVRP analog)
MFF
Enhanced Layer 3 multicast |
Zero Configuration | DHCP auto-config
CWMP-TR069 |
Broadcast/Multicast/Unicast storm suppression | Storm suppression based on port bandwidth percentage
Storm suppression based on PPS
Storm suppression based on BPS
Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression |
Loop-free redundant Layer 2 topology | STP/RSTP/MSTP/ PVST/PVST+
STP Root Guard
BPDU Guard
BPDU Drop
BPDU Blocking and Root Guard
Link Detection (UDLD)
Digital Diagnostic Monitor (DDM)
G.8032 Ethernet ring protection switching (ERPS) |
QoS/ACL | Rate limit for receiving and transmitting packets
CAR
COS, TOS
Eight output queues per port
Flexible queue scheduling algorithms based on both port and queue, including SP, WDRR, WRR, WFQ, and SP+WRR
802.1p priority and DSCP priority
Layer 2 to Layer 4 packet filtering
Traffic classification based on source MAC, destination MAC, source IP, destination IP, port, TCP / UDP Port, protocol, and VLAN
Time range |
Mirroring | Flow mirroring
N:4 port mirroring
Local port mirroring and remote port mirroring
Policy-based Mirroring
Traffic Mirroring |
Security | Hierarchical user management and password protection
MAC-based authentication
802.1X
Storm constrain
AAA authentication
RADIUS authentication
HWTACACS
SSH2.0
Port isolation
IP/Port/MAC binding
IP source guard
HTTPs
SSL
User Profile
Public Key Infrastructure (PKI)
CPU protection
Control Plane Protection (CoPP), Wireless Intrusion Prevention System (WIPS)
ND Detection, RA Guard |
Loading and upgrading | Loading and upgrading through XMODEM/FTP/TFTP
Loading and upgrading from USB |
Management and maintenance | Configuration from CLI
Login through Telnet, and the console port
Job scheduler
ISSU
VCT
802.1ag and 802.3ah
Simple Network Management Protocol (SNMP)
IMC network management system
System log
Alarming based on severity
NTP
Power, fan, and temperature alarming
Debugging information output
Ping and Tracert
RMON
LLDP, LLDP-MED
LACP
Track
Telnet-based remote maintenance |
EMC | FCC Part 15 Subpart B CLASS A
ICES-003 CLASS A
VCCI CLASS A
CISPR 32 CLASS A
EN 55032 CLASS A
AS/NZS CISPR32 CLASS A
CISPR 35
EN 55035
EN 61000-3-2
EN 61000-3-3
GB/T 9254.1 |
Safety | UL 62368-1
CAN/CSA C22.2 No 62368-1
IEC 62368-1
EN 62368-1
GB 4943.1 |
รับประกัน | ประกันศูนย์ H3C Thailand 3 ปี |
