Product Specification
|
|
Overview
|

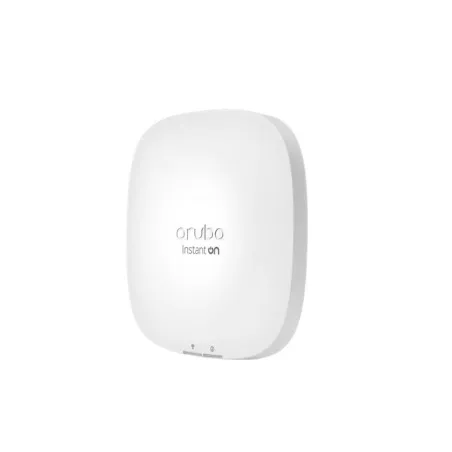

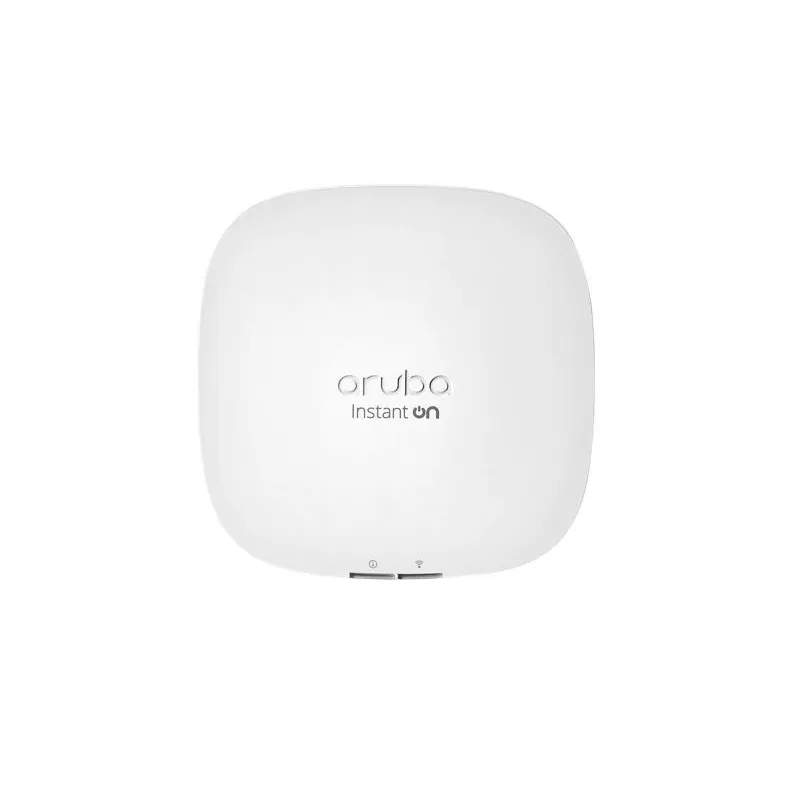

Aruba Instant On AP22 (RW) 2x2 Wi-Fi 6 Indoor Access Point 1.2 Gbps รองรับ Smart Mesh, Manage ด้วย Instant On Mobile App และ Cloud-based Web Portal (Free)
Smart Mesh technology
802.11ax Wi-Fi 6, 2X2:2 MU-MIMO technology
Remote management and monitoring capability
Separate guest and employee
Wi-Fi networks
Mobile app in multiple languages and cloud portal
Easy client/device blocking
Built-in DHCP/NAT support
App bandwidth limiting per network/user session
|
|
WI-FI Radio Specifications
|
Dual radio for simultaneous dual-band operation
5 GHz 802.11ax 2x2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6)
2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
Maximum (aggregated, conducted total) transmit power (limited by local regulatory requirements):
5GHz
band: +21dBm (+18dBm per chain, 3dB MIMO gain)
2.4Ghz
band: +21dBm (+18dBm per chain, 3dB MIMO gain)
|
|
Power
|
Power over Ethernet (POE): 802.3af (class 3)
Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)
DC power (12V)
Notes: Power sources are sold separately unless you purchase the bundle SKU which comes with power options.
|
|

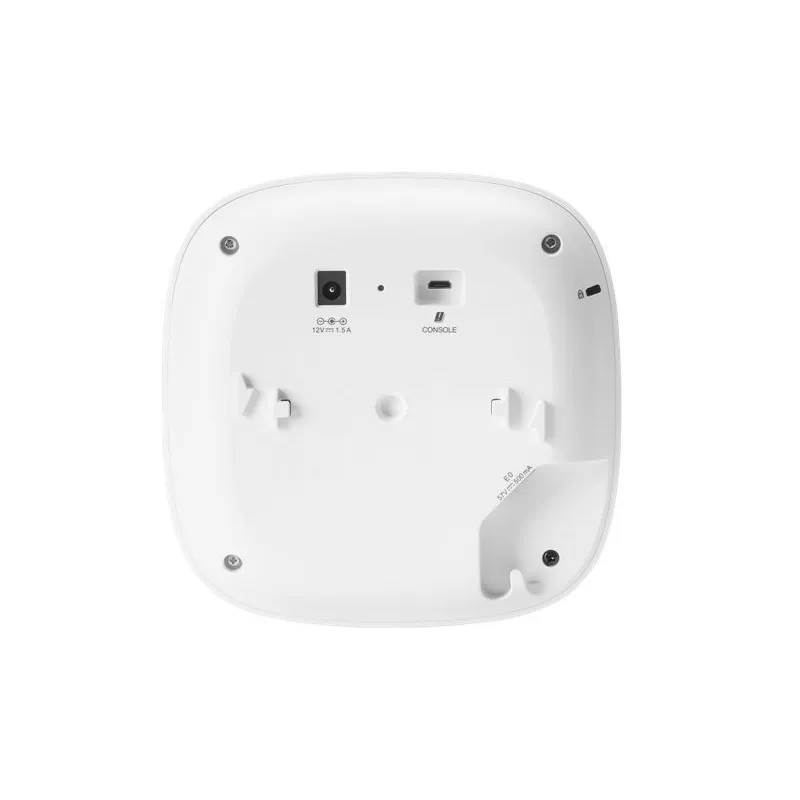

Additional interfaces
|
Uplink Gigabit Ethernet port, with PoE-in support (802.3af)
DC power connector (12V)
Bluetooth Low Energy (BLE) radio
LED status indicators (2)
Reset/LED control button
Kensington security slot
|
|
Antennas
|
Down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).
|
|
Mounting
|
The access point ships with a white mount clip that can attach to both wall and ceiling.
You can also purchase a mount (R6P90A) for aesthetic design and looks of the APs, to blend seamless into your environment.
|
|
Dimensions and weight
|
Dimensions and weights exclude mount
160 (W) x 160 (D) x 37 mm (H)
6.3 (W) x 6.3 (D) x 1.5 in (H)
500 gm/1.1 lbs
|
|
Environmental
|
Operating temperature: 0° C to +40° C (32° F to +104° F)
|
|
Certifications
|
UL 2043 plenum rating
EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
|
|
Warranty
|
2 ปี
|
