Product Specification
|
|
Overview
|

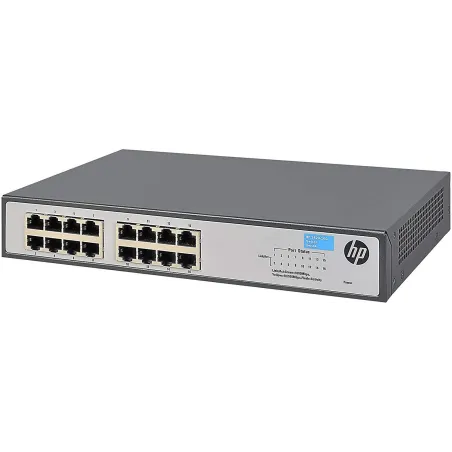

HPE Office Connect HPE-1420-16G (JH016A) Unmanaged Switch 16 Port ความเร็ว Gigabit ประกัน Limited Lifetime
|
|
I/O ports and slots
|
16 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Supports a maximum of 16 autosensing 10/100/1000 ports
|
|
Dimensions
|
10.47(w) x 6.38(d) x 1.73(h) in (26.6 x 16.2 x 4.4 cm) (1U height)
|
|
Weight
|
2.65 lb (1.2 kg)
|
|
Memory and processor
|
1 MB flash; Packet buffer size: 512 KB
|
|
Mounting and enclosure
|
Mounts in an EIA standard 19-inch telco rack (hardware included); Wall, desktop and under-table mounting
|
|
Performance
|
|
|
100 Mb Latency
|
< 8 μs (LIFO 64-byte packets)
|
|
1000 Mb Latency
|
< 16 μs (LIFO 64-byte packets)
|
|
Throughput
|
up to 23.8 Mpps (64-byte packets)
|
|
Switching capacity
|
32 Gbps
|
|
MAC address table size
|
8192 entries
|
|
Reliability
|
|
|
MTBF (years)
|
153.3
|
|
Environment
|
|
|
Operating temperature
|
32°F to 104°F (0°C to 40°C)
|
|
Operating relative humidity
|
5% to 95%, noncondensing
|
|
Non-operating/Storage temperature
|
-40°F to 158°F (-40°C to 70°C)
|
|
Non-operating/Storage relative humidity
|
5% to 95%, noncondensing
|
|
Altitude
|
up to 16,404 ft (5 km)
|
|
Acoustic
|
Power: 0 dB No fan
|
|
Electrical characteristics
|
|
|
Frequency
|
50/60 Hz
|
|
Voltage
|
100 - 240 VAC, rated
|
|
Current
|
0.2 A
|
|
Maximum power rating
|
12 W
|
|
รับประกัน
|
Limited Lifetime
|
|
|
|
